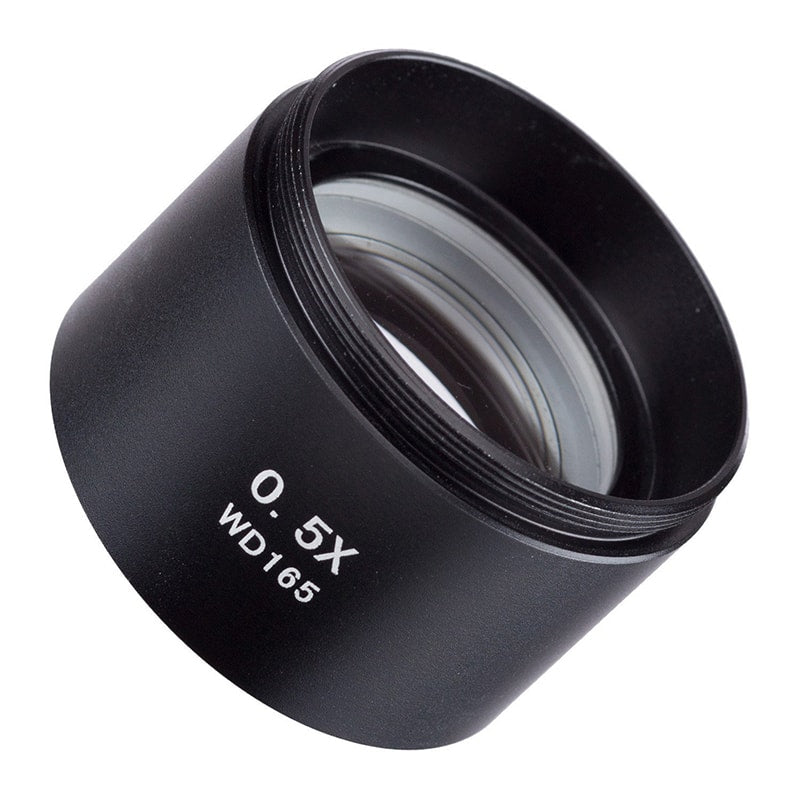

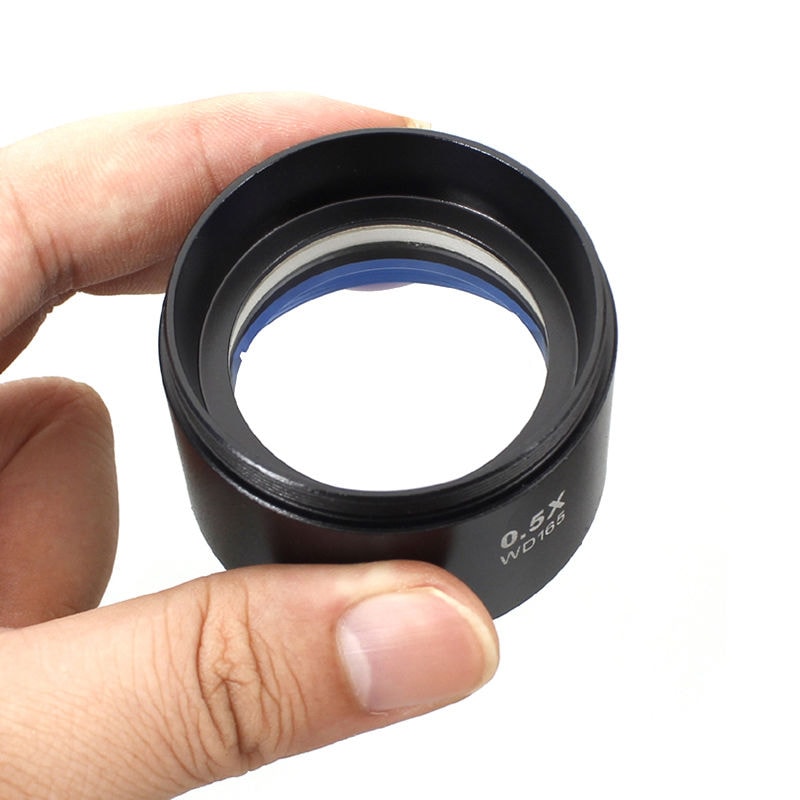

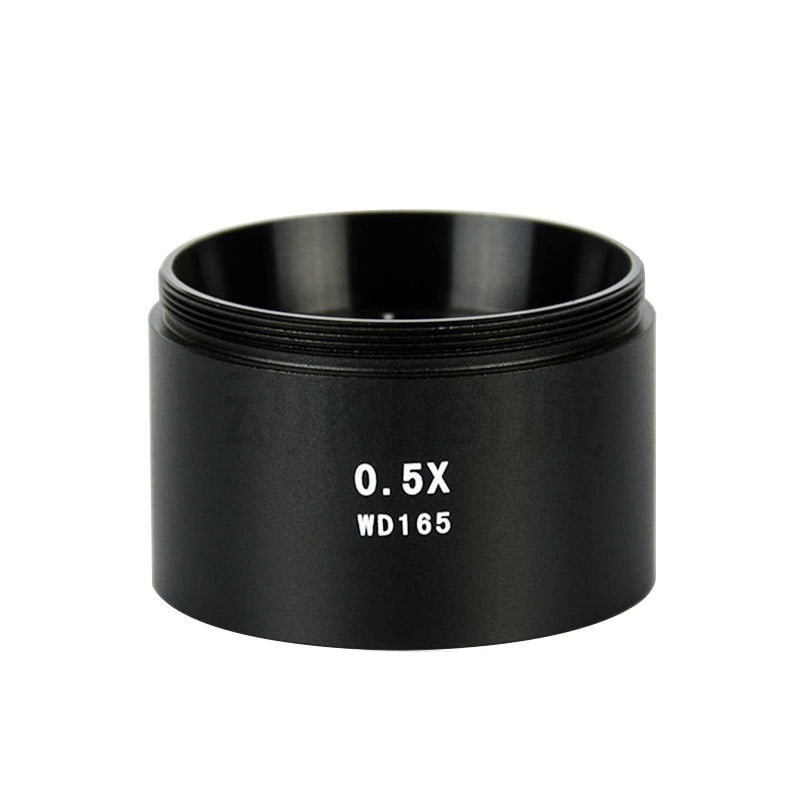

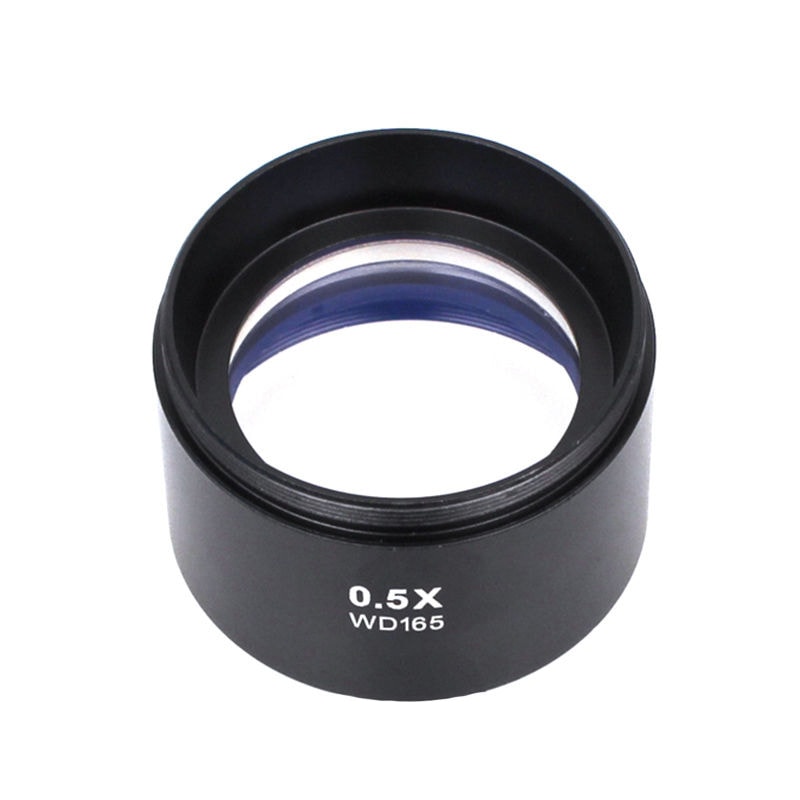

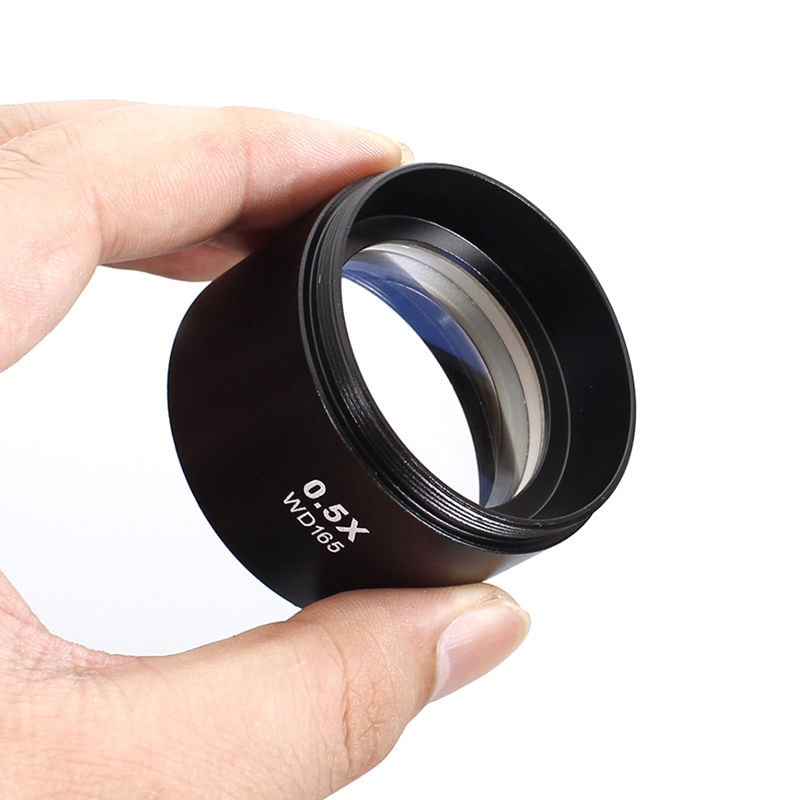

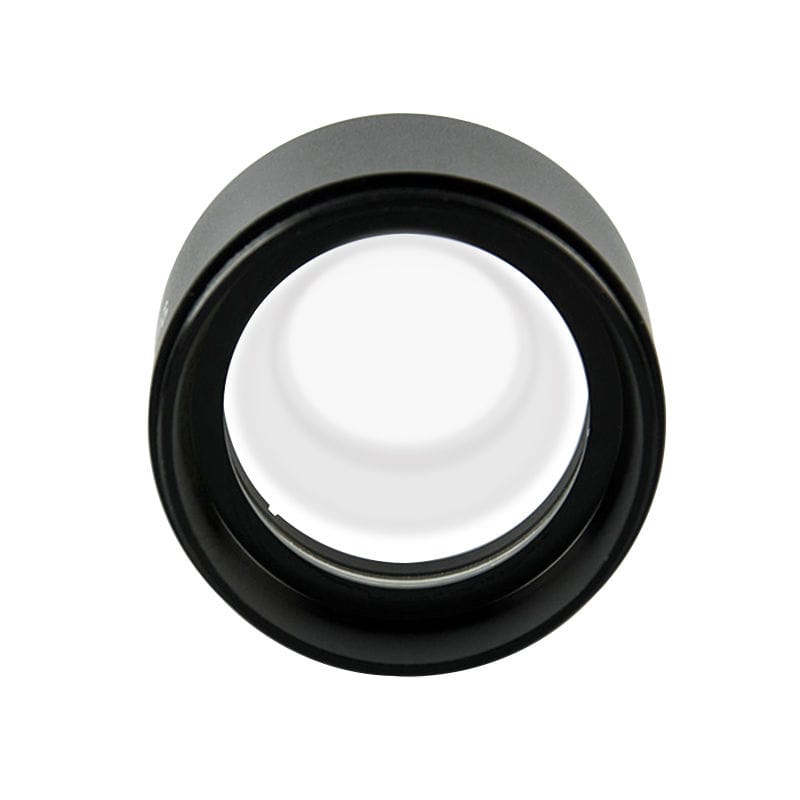

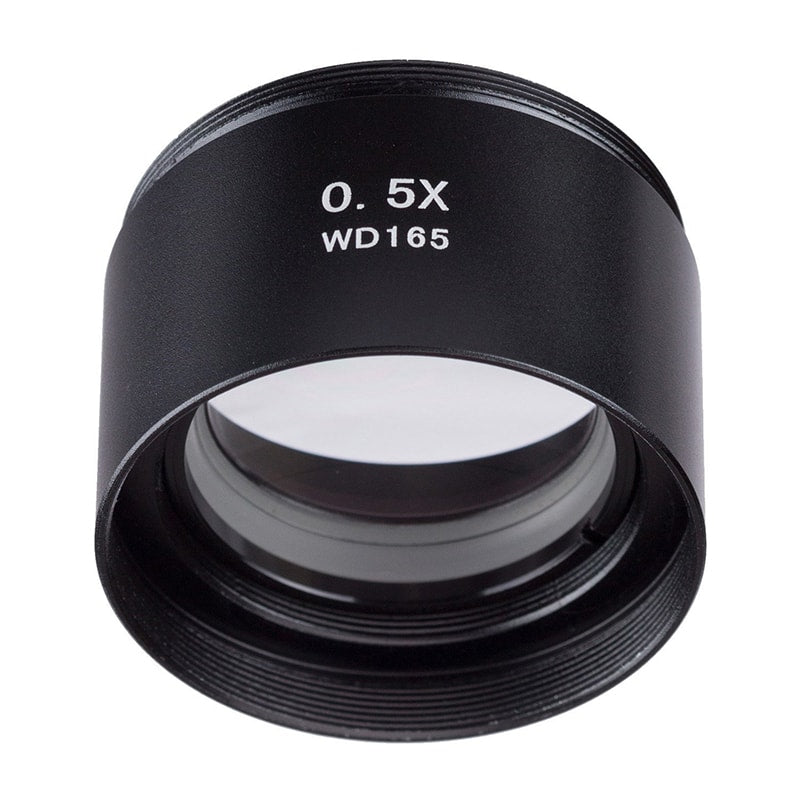

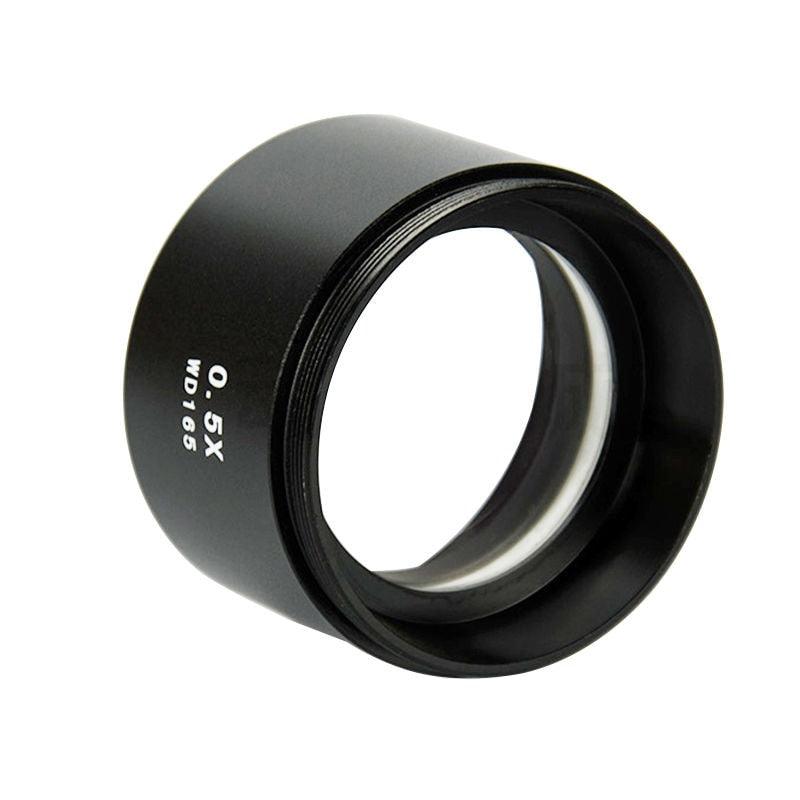

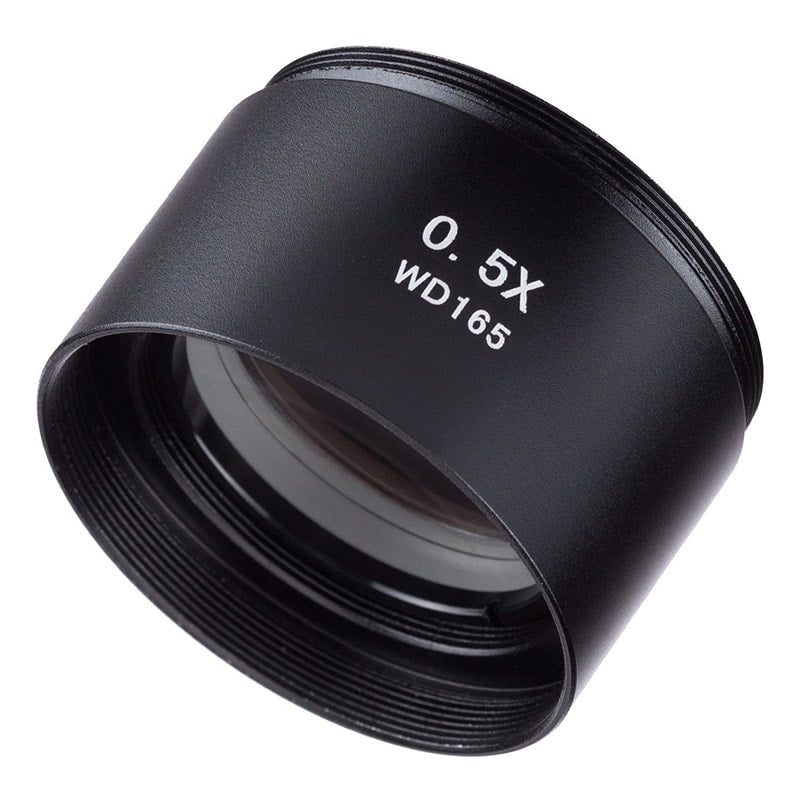

0.5X STEREO MICROSCOPE AUXILIARY OBJECTIVE LENS BARLOW LENS
Size:0.5X WD165
Quantity:
Description:

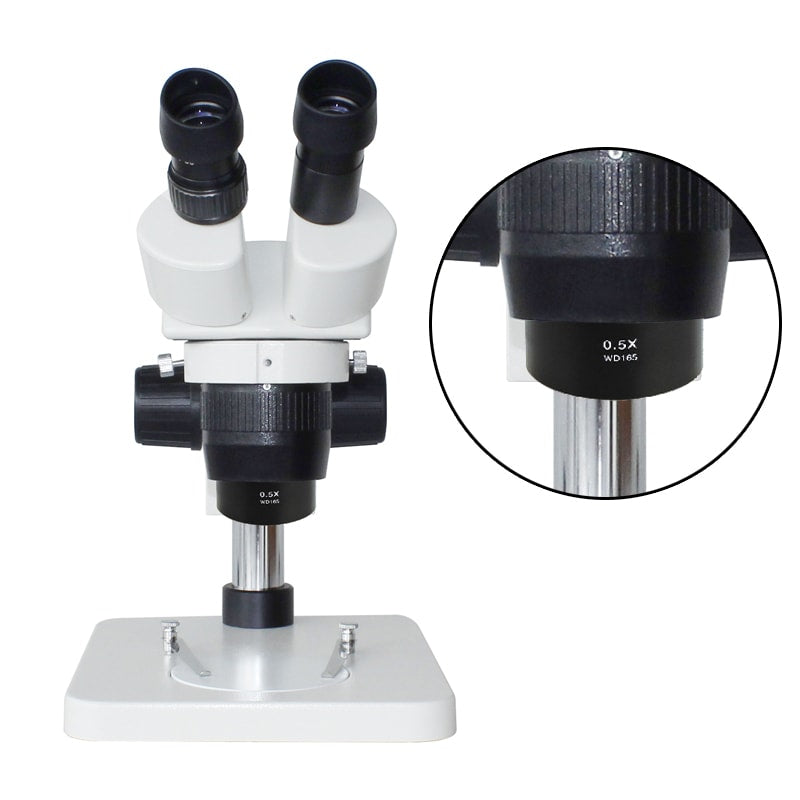

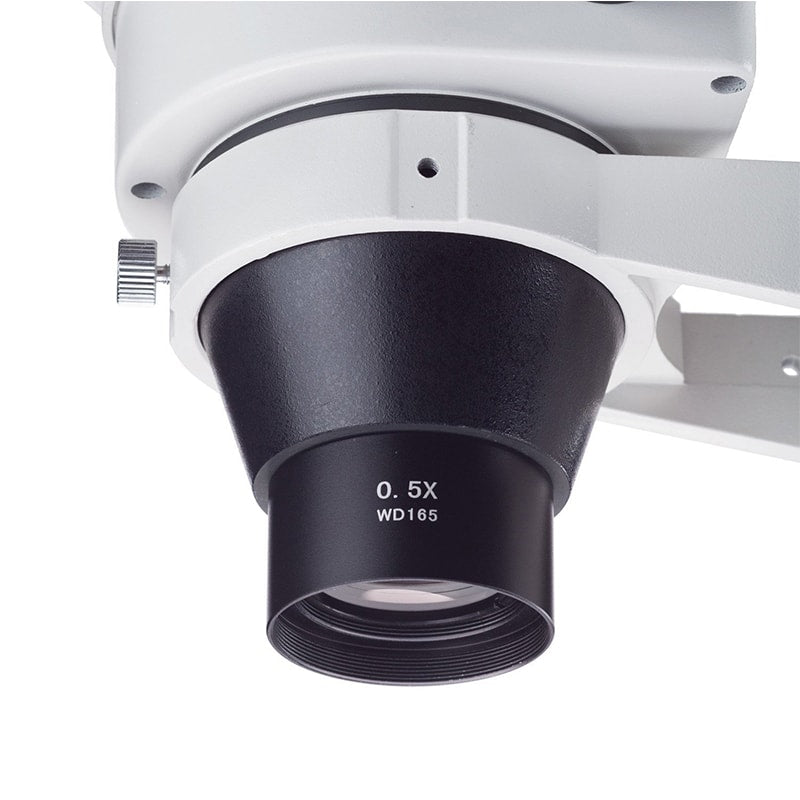

- Auxiliary stereoscopic microscope objective lens is the function extension for a stered microscope, the microscope magnification increased to meet the need of users, or smaller magnification, increase the working distance, generic connection thread M48x0. 75, spin directly to a stered microscope head bottom thread can be used on the mouth, the secondary objective bottom for card slot can connect ring ring lamp lights.
- There are also interfaces for m42x0.75 and m50x0.75.
- Purpose: to reduce or enlarge the magnification of stereoscopic microscope.Applicable to all stereoscopic microscopes (binocular, triocular) for reducing or enlarging the observation multiples, enlarging or narrowing the field of view.
- Working distance: 0.5X WD 165mm, 2X WD 30mm, m48x0.75
Features
- 0.3X is a condensing mirror with a working distance of 287mm. Increase the working distance, reduce the multiple, the multiple after use is *0.3
- 0.5X is a condensing mirror with a working distance of 165mm. Increase the working distance, reduce the multiple, the multiple after use is *0.5
- 0.7X is a condensing mirror with a working distance of 120mm. Increase the working distance, reduce the multiple, the multiple after use is *0.7
- The 1.5X is a multiplier lens, and the working distance is 45mm. Shorten the working distance and increase the magnification. The multiple after use is *1.5
- The 2X is a multiplier lens, and the working distance is 30mm. Shorten the working distance and increase the magnification. The multiple after use is *2
