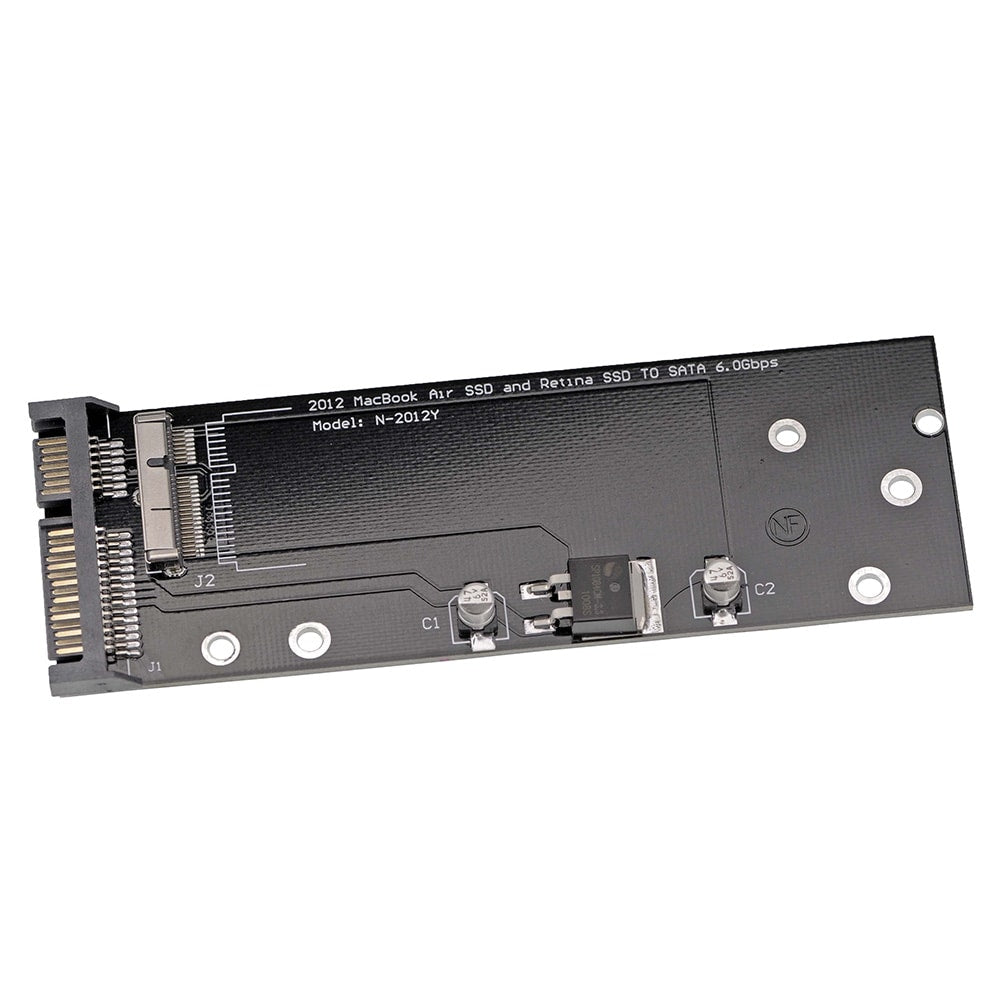

2.5 SATA 3.0 SSD ADAPTER FOR MACBOOK AIR PRO A1466 A1465 A1398 A1425 (MID 2012,LATE 2012)
Quantity:
Description:
- No Return / No Exchange Policy / No Warranty.
- Please check the model number and match it with your Product.
- Generic and Proper 2.5 Sata 3.0 SSD Adapter.
- Super Quality
- Every product crosscheck Before Shipping
- Compatible with macbook air 13" a1466 / 11" a1465 pro a1398 / a1425.
Feature:
- 100% Brand new and high quality!
- Only support 2012 Apple MacBook Air A1466 A1465 MD223 MD224 MD231 MD232 and 2012 Apple MacBook Pro A1398 A1425 MD212 MD213 ME662 MC975 MC976 ME662 ME664 ME665 SSD to 7+15 pin SATA

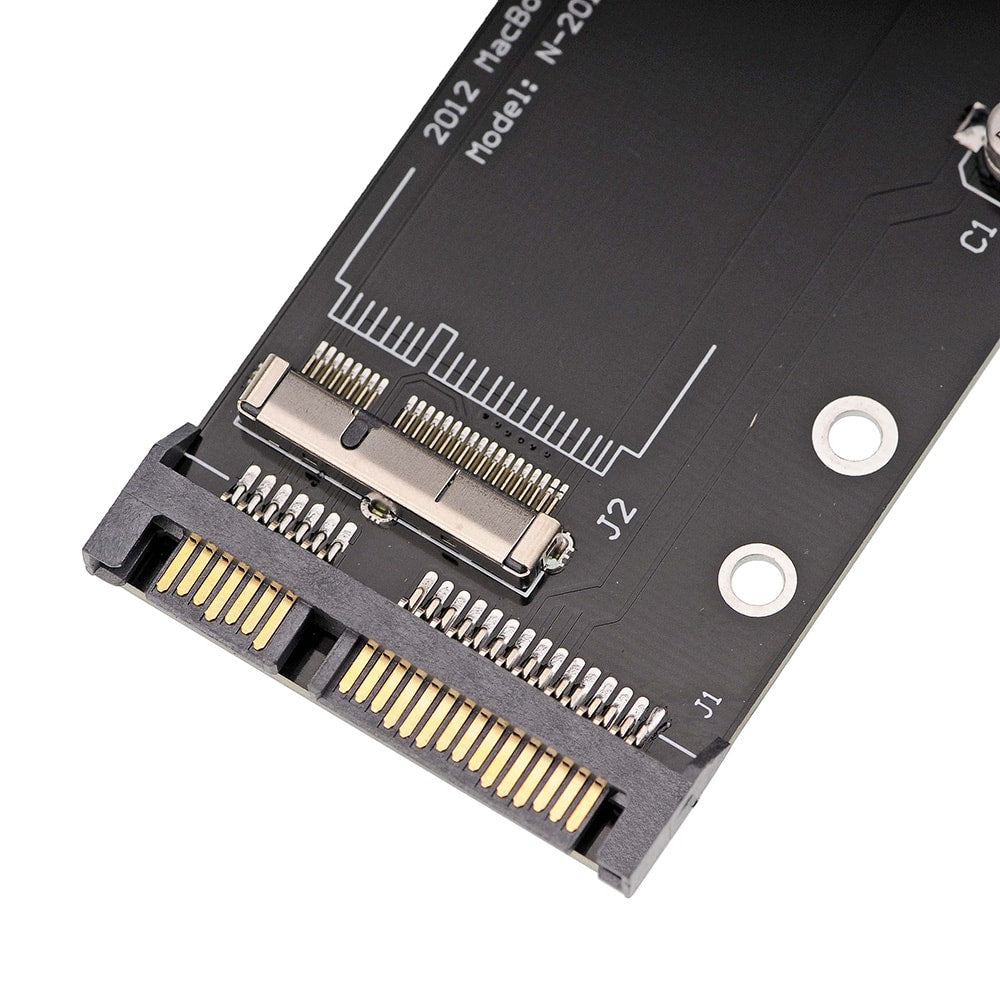

- Install SSD Card in this adapter as SATA HDD
- The speed and other properties are not changed, only from the conversion interface.
- The main body is very light.
- You can connect it to desktop
- Size:12.4 cm*4.1 cm*1 cm
MacBook Air SSD interface standard:
- 2010 and 2011 Air SSD is 6+12 pin, only one side have contact, size is 109 mm*24 mm.
- 2012 Air SSD is 7+17 pin(the SSD slot is 8+18 pin, the gold finger of SSD there are two groups is connected, so the SSD is 17+7 pin), size is 109 mm*24 mm.
- 2012 Pro SSD is 7+17 pin(the SSD slot is 8+18 pin, the gold finger of SSD there are two groups is connected, so the SSD is 17+7 pin), size is 89 mm*33 mm.
- 2013 and 2014 Air SSD is both sides have contact, one side is 16+12 pin, the other side is 11+14 pin, size is 89 mm*24 mm.
Compatibility:
MacBook Air 11" A1465 2012
- for MacBook Air "Core i5" 1.7 11" (Mid-2012)
- for MacBook Air "Core i7" 2.0 11" (Mid-2012)
- for MacBook Air "Core i5" 1.8 13" (Mid-2012)
- for MacBook Air "Core i7" 2.0 13" (Mid-2012)
Package Included:
- 1 x Card for 2012 MacBook Air A1466 A1465 A1398 A1425 SSD to SATA adapter card original slot (Green or Black, Randomly)

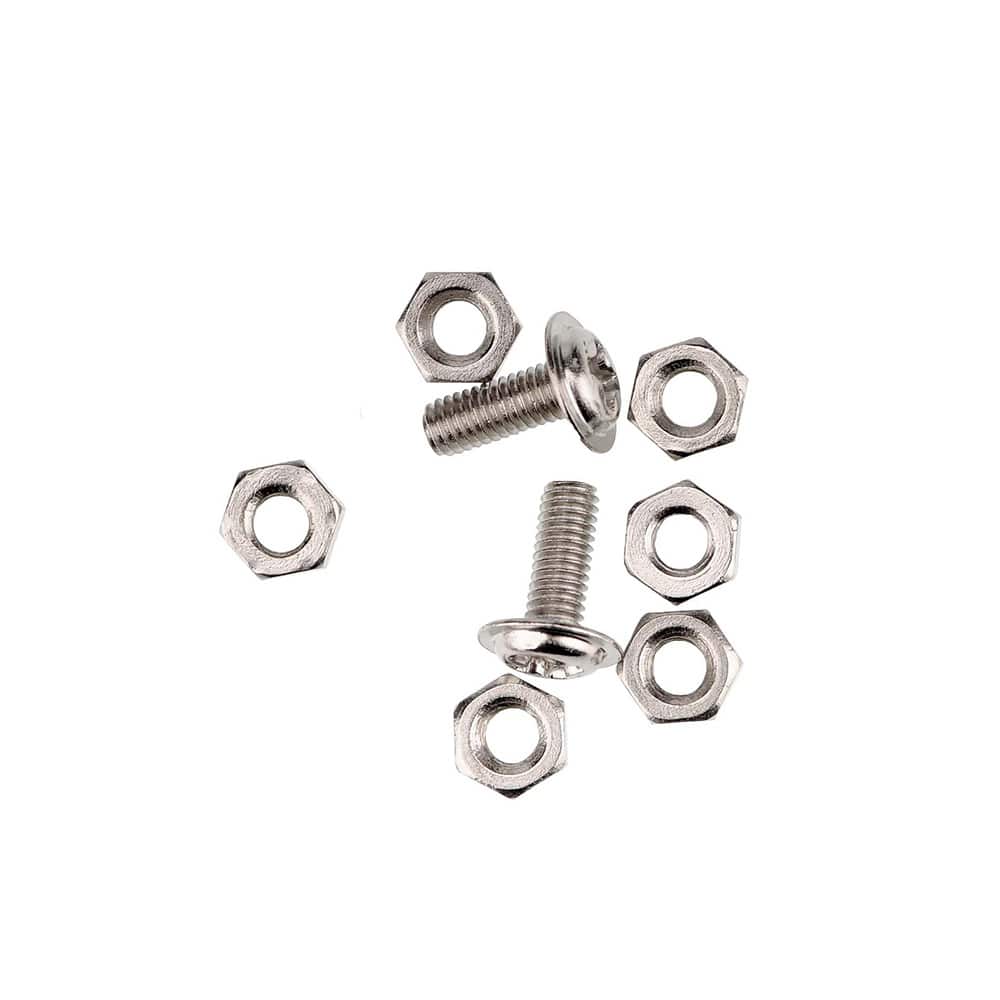

- 1 x Al packet of screws
- Please choose the right part before placing an order.
- Please try to handle the repair or replacement work in a dry and dust-free environment without direct sunlight.
- Special tooling is required for the repair or replacement work.
- The installation of any new parts should be done by a qualified person. MF is not responsible for any damage caused during installation.
