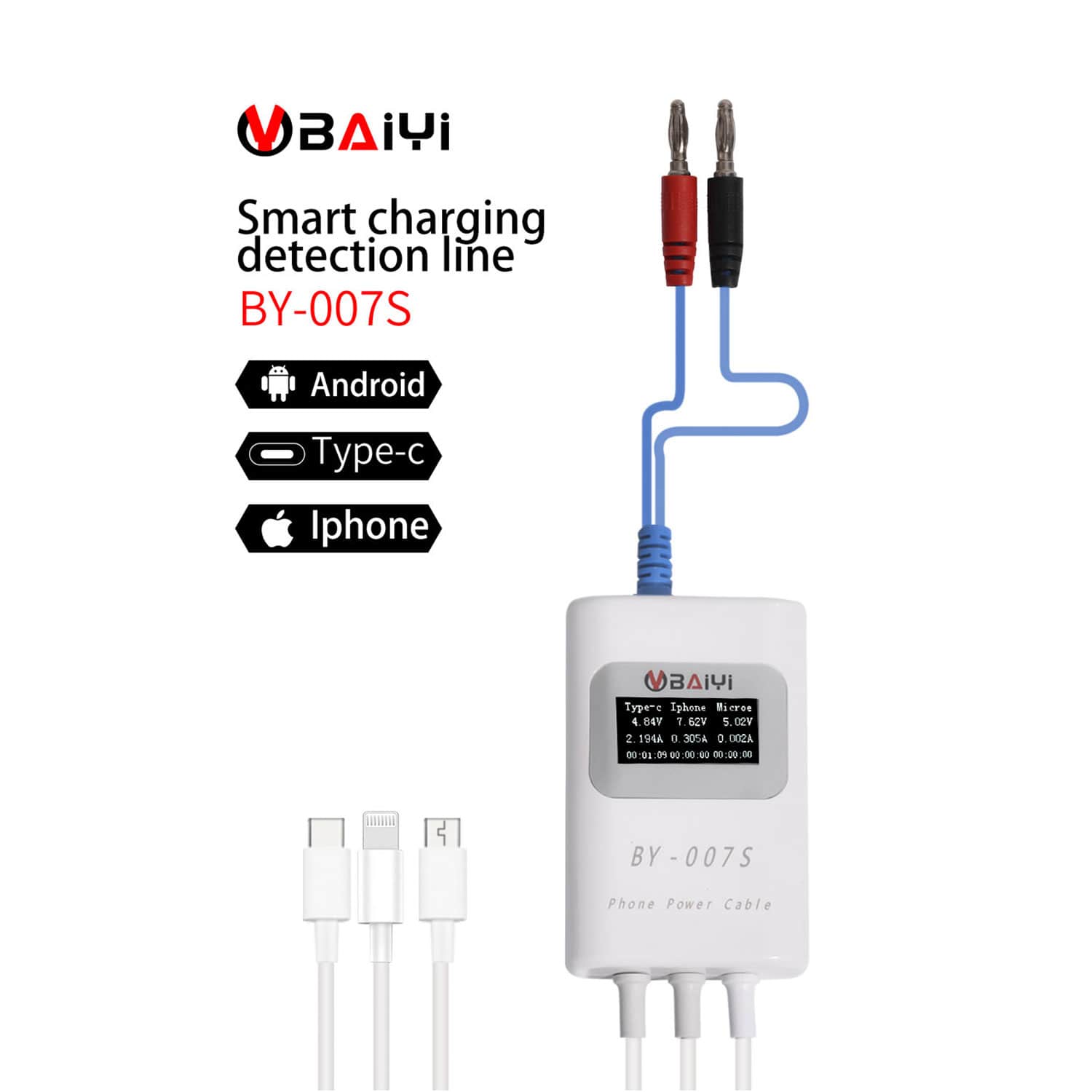

BY-007S MULT-FUNCTION SMART CHARGING DETECTION LINE
Quantity:
BY-007S Usage Instructions:
Frist: The advantages compared to other chargers and power cables
- Support Type_C, Lightning, Micro USB three device interface input
- Support multiple fast-charging protocols such as PPS/PD/QC/AFC/FCP/SCP/PE/SFCP/low-voltage direct charging
- Support output Type_C interface 100W, QC 3.0 fast charge protocol
- Support output voltage 5V, 9V, 12V, 20V voltage, the device automatically recognizes the required voltage output

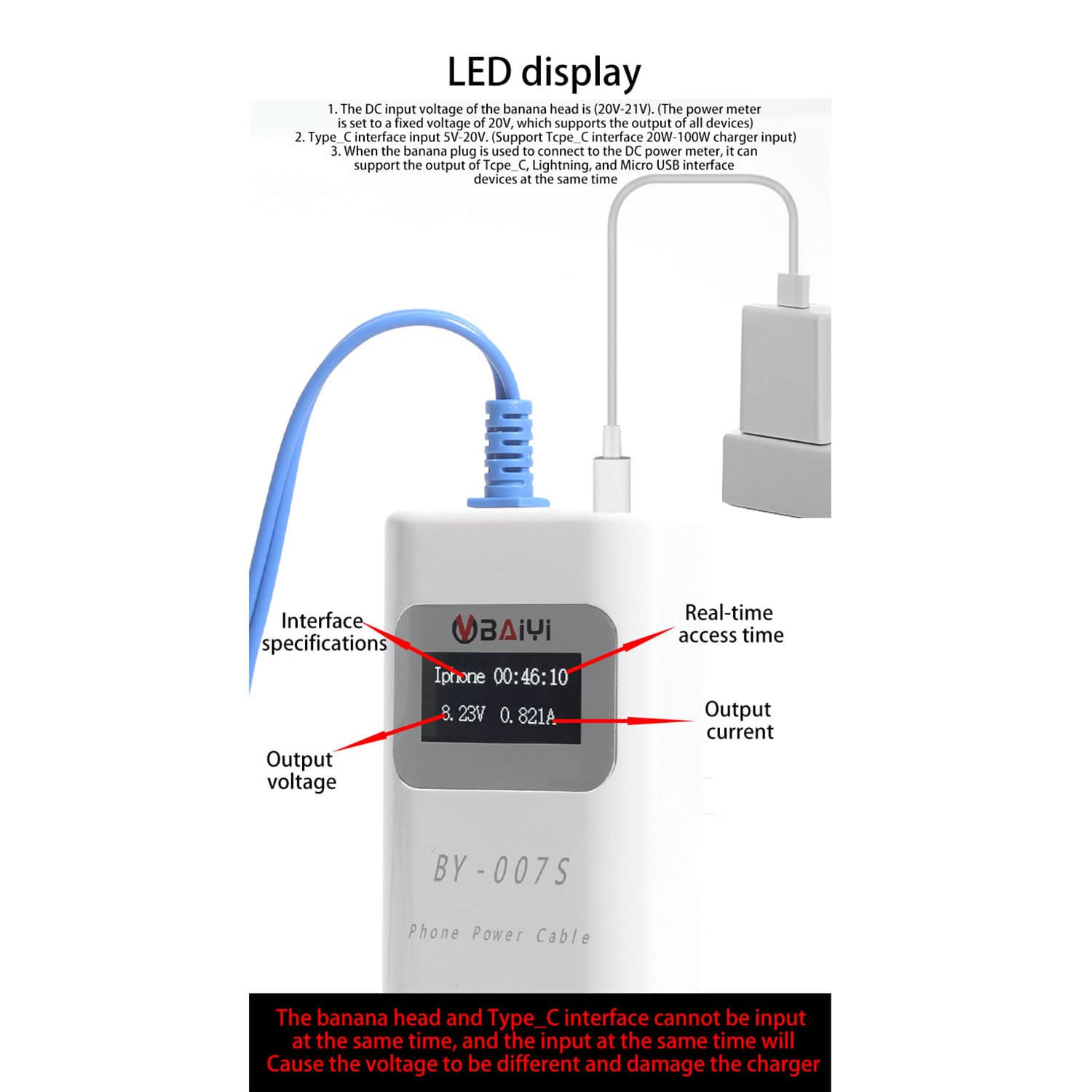

- LED display shows: Interface model, Real-time use time, Output voltage, Output current

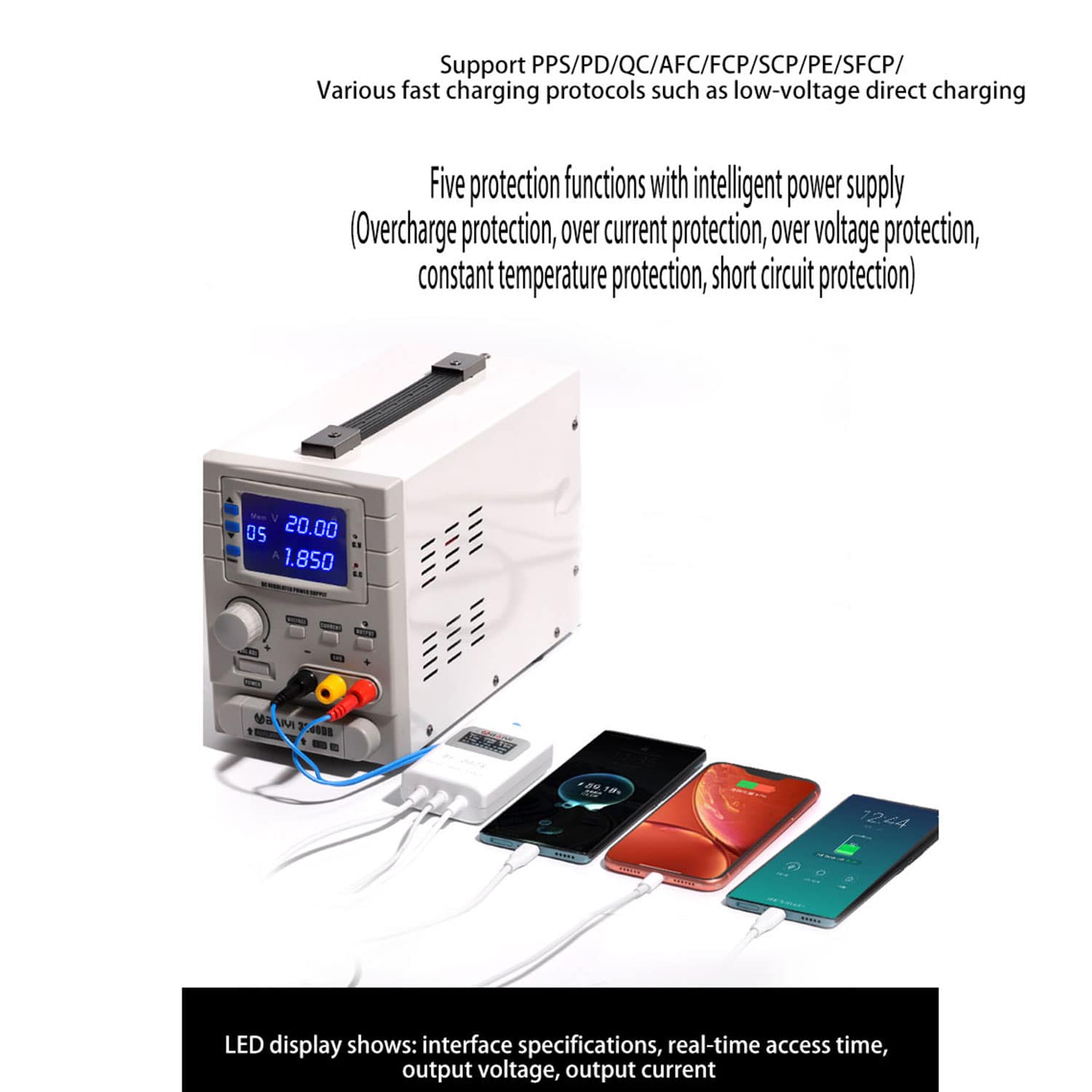

- Five protection functions of intelligent power supply (overcharge protection, overcurrent protection, overvoltage protection, constant temperature protection, short circuit protection).
Second: Set two inputs at the power input
- The input voltage of the DC power supply is 20V. (The power meter is set to a fixed voltage of 20V, which supports the output of all devices)
- Type_C interface input 5V-20V. (Support Tcpe_C interface 20W-100W charger input)
- When connected to a DC power meter, it can support Type_C, Lightning, and Micro USB interface device output at the same time.
Third: Including three power cords

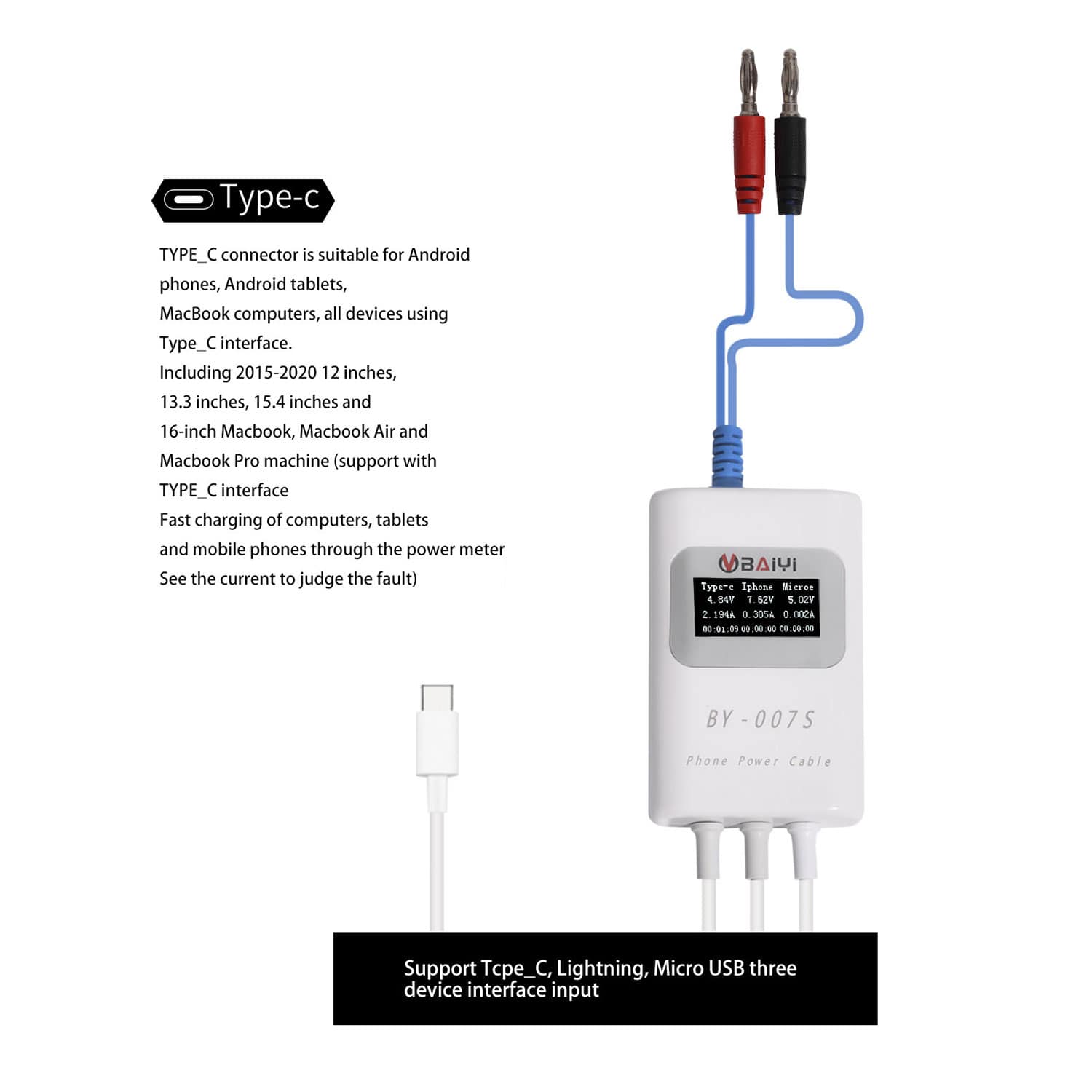

- TYPE_C connector is suitable for Android phones, Android tablets, MacBook computers, and all devices with a Type_C interface.
- Including 2015-2020 12-inch, 13.3-inch, 15.4-inch, and 16-inch Macbook, Macbook Air, and Macbook Pro machines (supports computers, tablets and mobile phones with TYPE_C interface fast charging, judge the fault by looking at the current through the power meter).

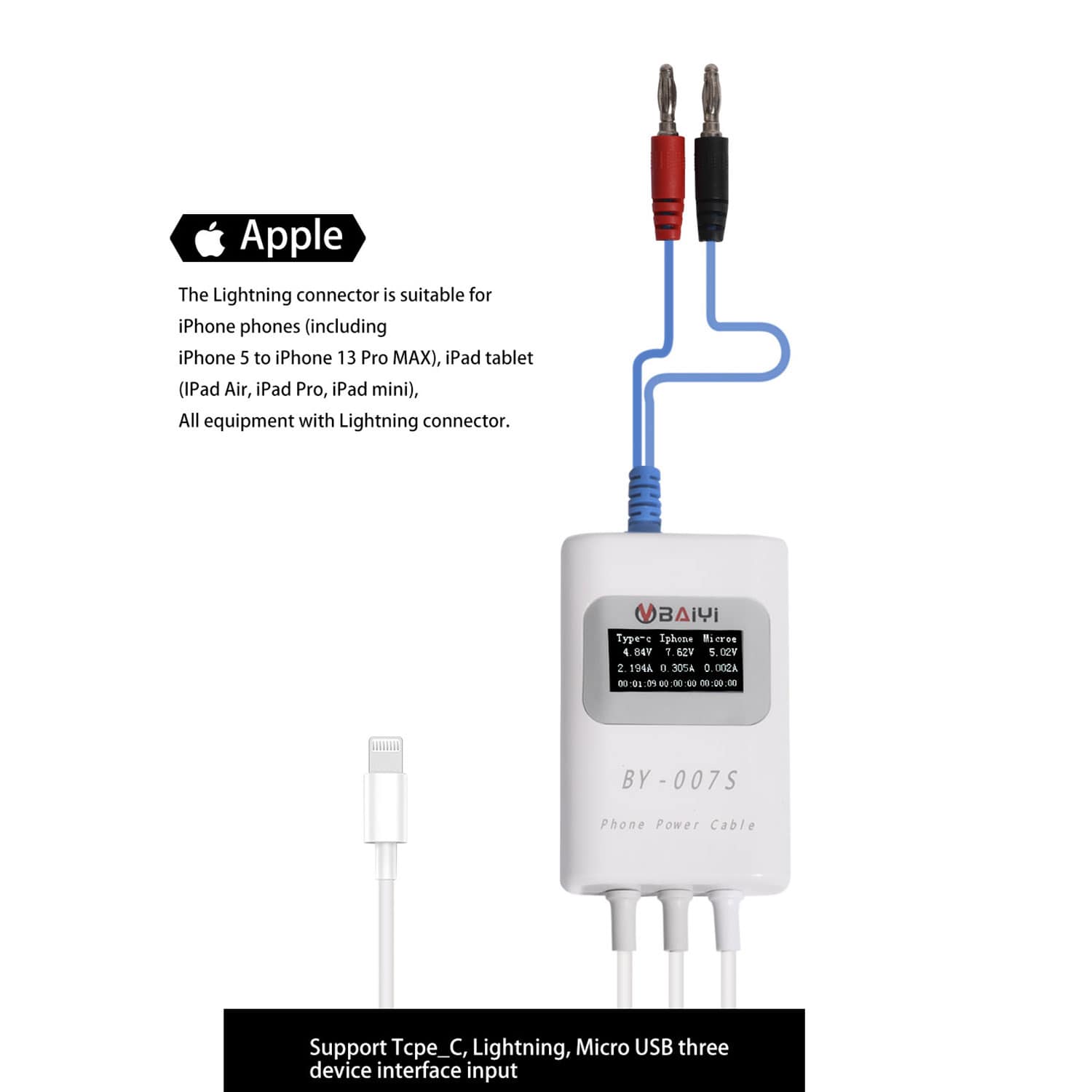

- The Lightning connector is suitable for iPhone phones (including iPhone 5 to iPhone 13 Pro MAX), iPad tablets (iPad Air, iPad Pro, iPad mini), and all devices with Lightning connectors.

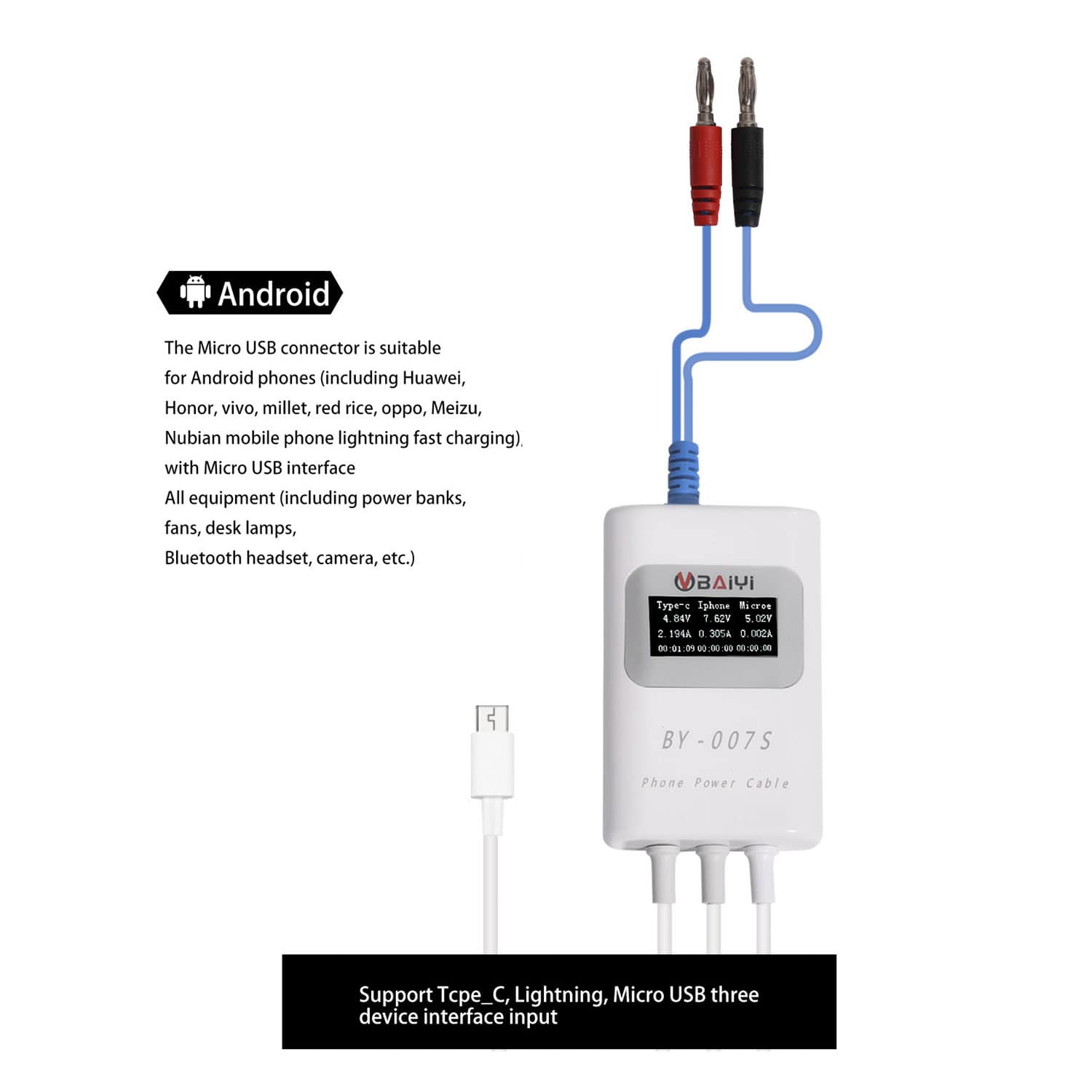

- The micro USB connector is suitable for Android phones (including Huawei, Honor, Vivo, Xiaomi, Redmi, Oppo, Meizu, Nubia mobile phone lightning-fast charging), all devices with Micro USB interface (including power bank, fan, desk lamp, Bluetooth Headphones, cameras, etc.).
Fourth: Function and Role

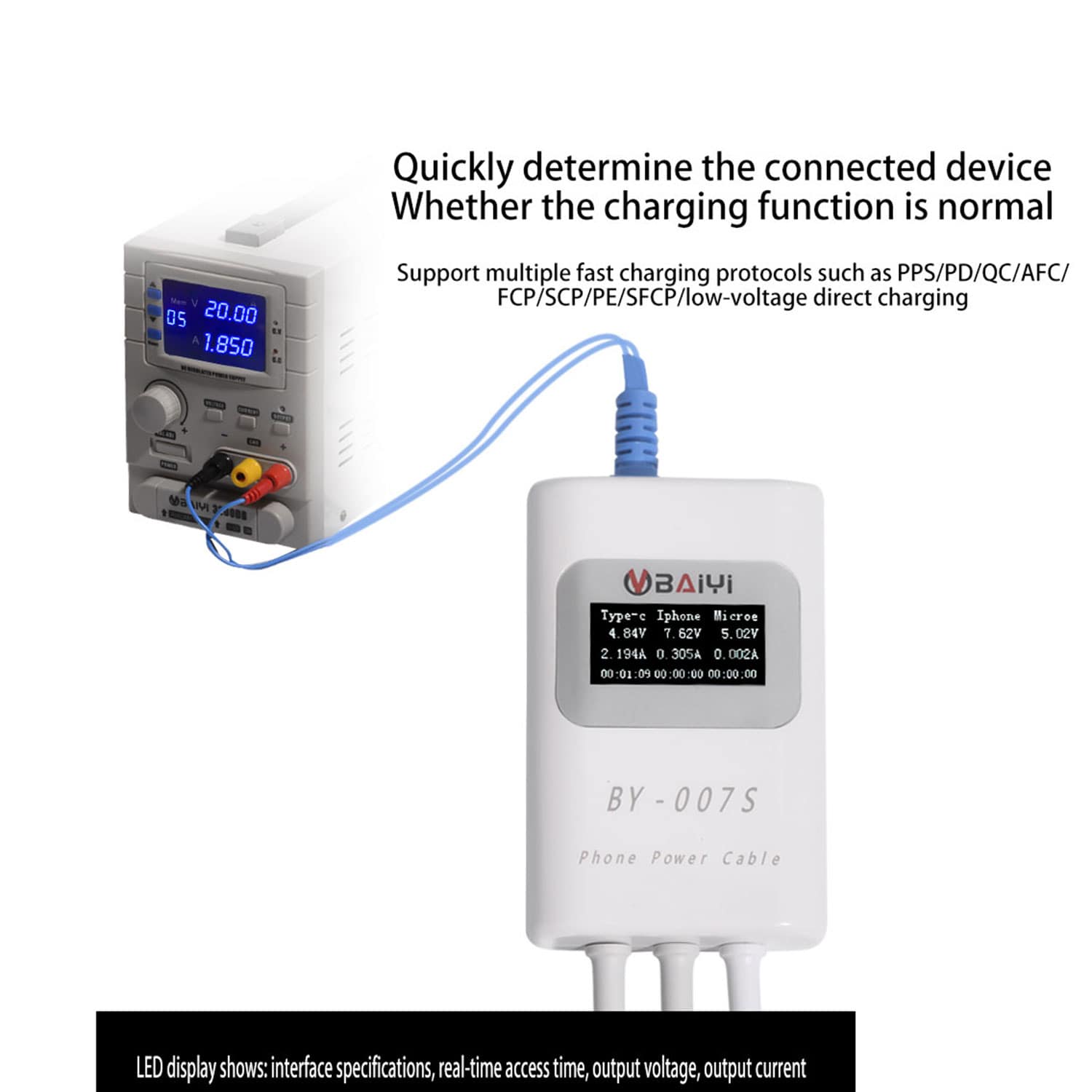

- Quickly determine whether the charging function of the connected device is normal

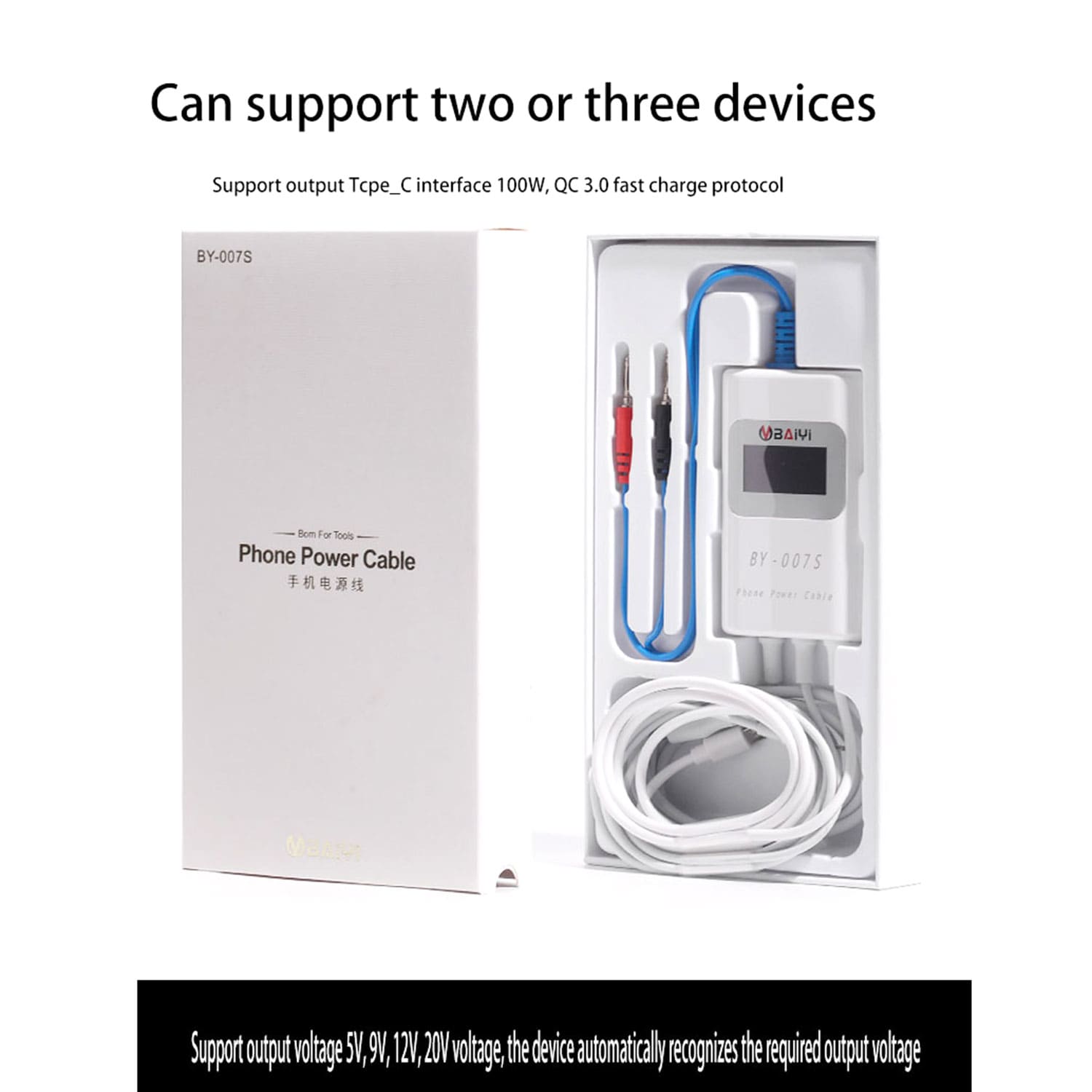

- It can support simultaneous output of two or three devices
- Display the interface type of the connected device, you can judge whether the connected interface type is correct
- Display real-time access time, you can calculate the time required for the device to be fully charged

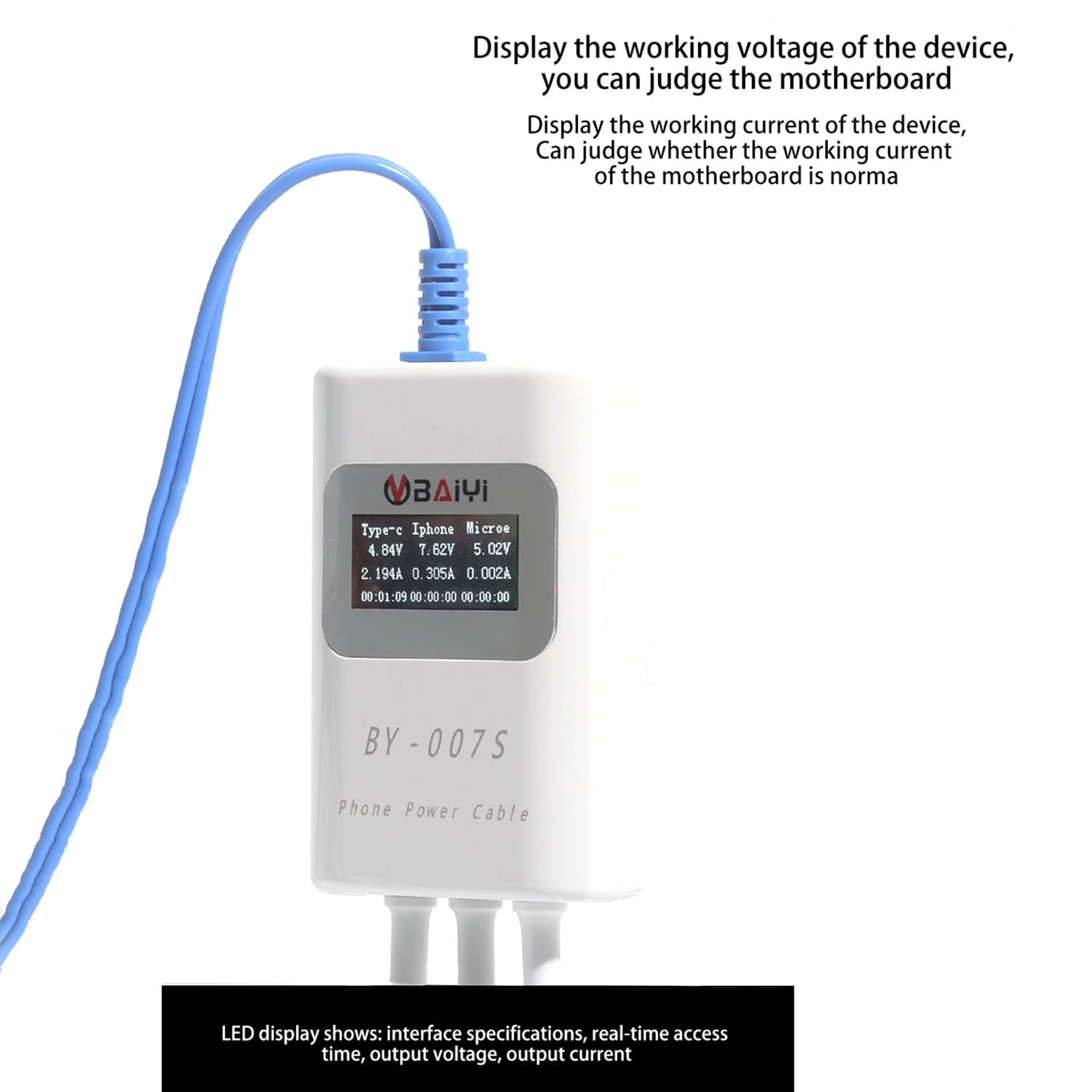

- Display the working voltage of the device, you can judge whether the power supply of the motherboard is normal
- Display the working current of the device, you can judge whether the working current of the mainboard is normal
