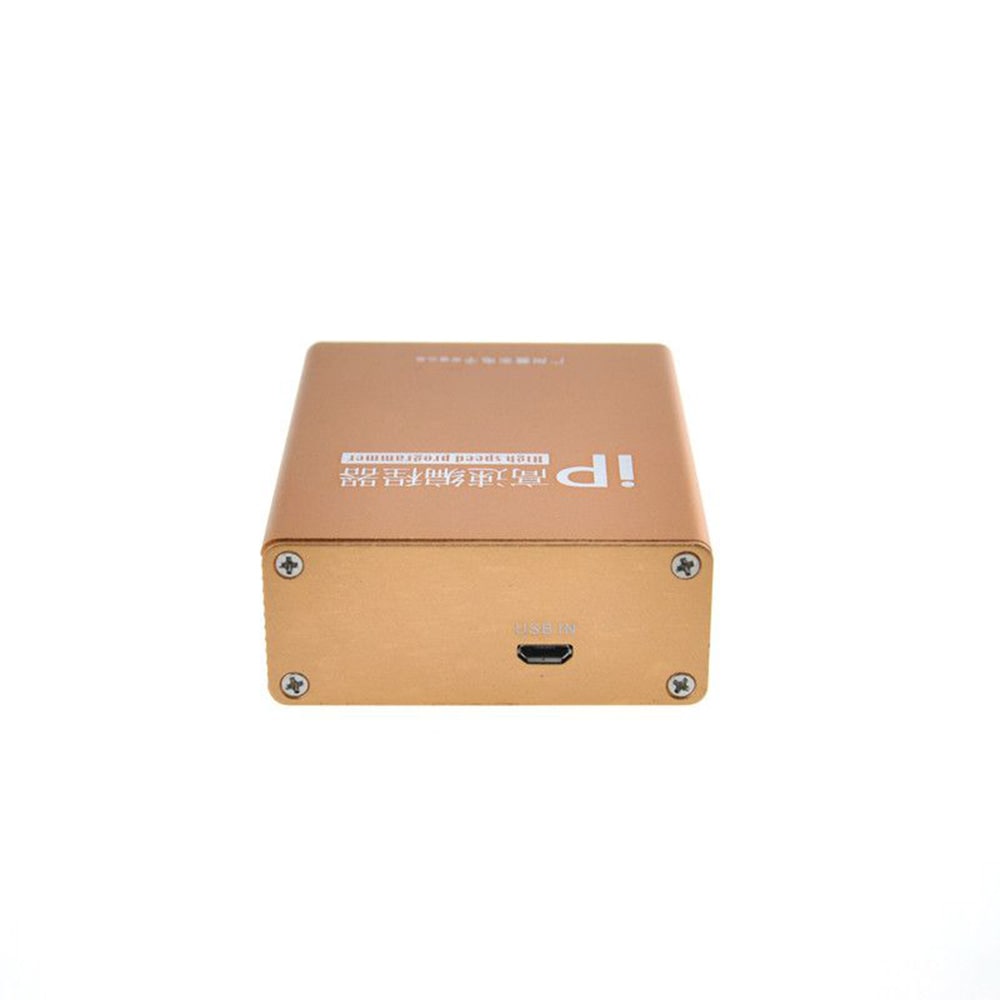

IPBOX V2 NAND FLASH IC PROGRAMMER REPAIR TOOL
Quantity:
Description:
- New IP BOX V2 is the iP High-Speed Programmer for iPhone / iPad device, Support Apple NAND Flash, Baseband EEPROM, CHIP Read Write Erase Repair function, help engineer fix the brush and boot errors on hardware.
- IP BOX V2 / IPBOX 2 iP high speed programmer for iPhone / iPad (All-in-One machine)
- This machine case Apple NAND Model, not Match the iphone / ipad model. perhaps, parts NAND mode can't support, the factory will add in future,
- others Tools, Model: VP406 / W002 / VP405 / VC199/ W004/ W005 / W012... just case iphone / ipad Model, don't match Apple NAND.
- Don't need Boot Nand Flash, easy to use, also don't need Apple engineering Cables (DCSD USB cable )
Features:
- APPLE NAND Flash supported list
- 64bit: iphone 5s, 6,6p; ipad mini2/3, ipad5/6 underlying data modification, SN, country, color, wifi...modification
- 32bit: iPhone 5, 5c, 4s, 4; iPad 2/3/4,mini1 underlying data modification, SN, country, color, wifi...modification
- Apple EEPROM IC (IMEI CHIP) supported list
- PCIE Mode: support phone 5se, 6s, 6sp EEPROM IC reading / writing, underlying data repairing
- 64bit Mode: support 5s, 5se, 6, 6p EEPROM IC reading / writing, underlying data repairing
- 32bit Mode: support 5, 5c, 4s, 4, EEPROM IC reading / writing, underlying data repairing
- support iPhone 5s underlying data change and when to change the NAND Flash on iPhone 5S, fingerprints function is also working well.
iP box V2 / iP BOX2 function-option:
IPBOX V2 NAND Flash IC Programmer Repair Tool
- IP_BOX2: iPhone / iPad NAND Flash storage upgrade, NAND Flash error repair, NAND Testing, Backup Extract NAND information, re-write data into new replace NAND, repair NAND Partition Information.
- NAND_Flash: Read, Write, Erase, Test Apple NAND Flash.
- SPI_Flash: Read, Write, Erase Apple Baseband EEPROM IC, support almost SPI FLASH IC, fit with: iPhone 4s, iPhone 5, iPhone 5C, iPhone 5s..
- EEPROM: Read, Write, Erase Apple Baseband EEPROM IC, support iPhone 6, iPhone 6Plus, iPhone 6s, iPhone 6s Plus, iPhone 5se..
- Firmware Upgrade
2- NAND Capacity Expansion / NAND Repair function:
IPBOX V2 NAND Flash IC Programmer Repair Tool
- Support iPad mini1/mini2/mini3/mini4/air/air2/2/3/4/5/6, iPhone 4s/5/5c/5s/6/6p
- Extract iPhone / iPad information, also support Change the iPhone iPad information ( wifi macbt mac local modem... )
- Can Load before NAND BOOT1 information (Partition Information), easy and fast operation.
- Can Load before NAND BOOT2 information (snwifi macbt mac local modem Information), easy and fast operation.
- Fast format NAND / re-boot the NAND.
3 -NAND_Flash Apple NAND: Read, Write, Erase, Check function:
IPBOX V2 NAND Flash IC Programmer Repair Tool
- ID Test: Reading NAND ID, Model, Size ...etc information.
- Read Test: print Internal partial data information
- Read All: Read the full font data, and also saved to the computer
- Erase Block: Erase the Part block data
- Erase ALL: Erase NAND.
- Write Block: Write the Part block data
- Write ALL: Write NAND Boot (Font) information.
- NAND Bus communication parameters
- NAND Protocol mode and NAND bus clock
- Read Test, Erase Block, Write Block
- NAND Page Start Address and NAND Chip Select
- Read All, Write All, All Erase. CE1CE2CE3CE4
4- SPI_Flash (EEPROM IC Read, Write, Erase, Repair Function)
- Can read-write fix base spi flash ic, Helpfull to solve update and restore errors ( ex: Itunes 1,16...39,54 error and more)

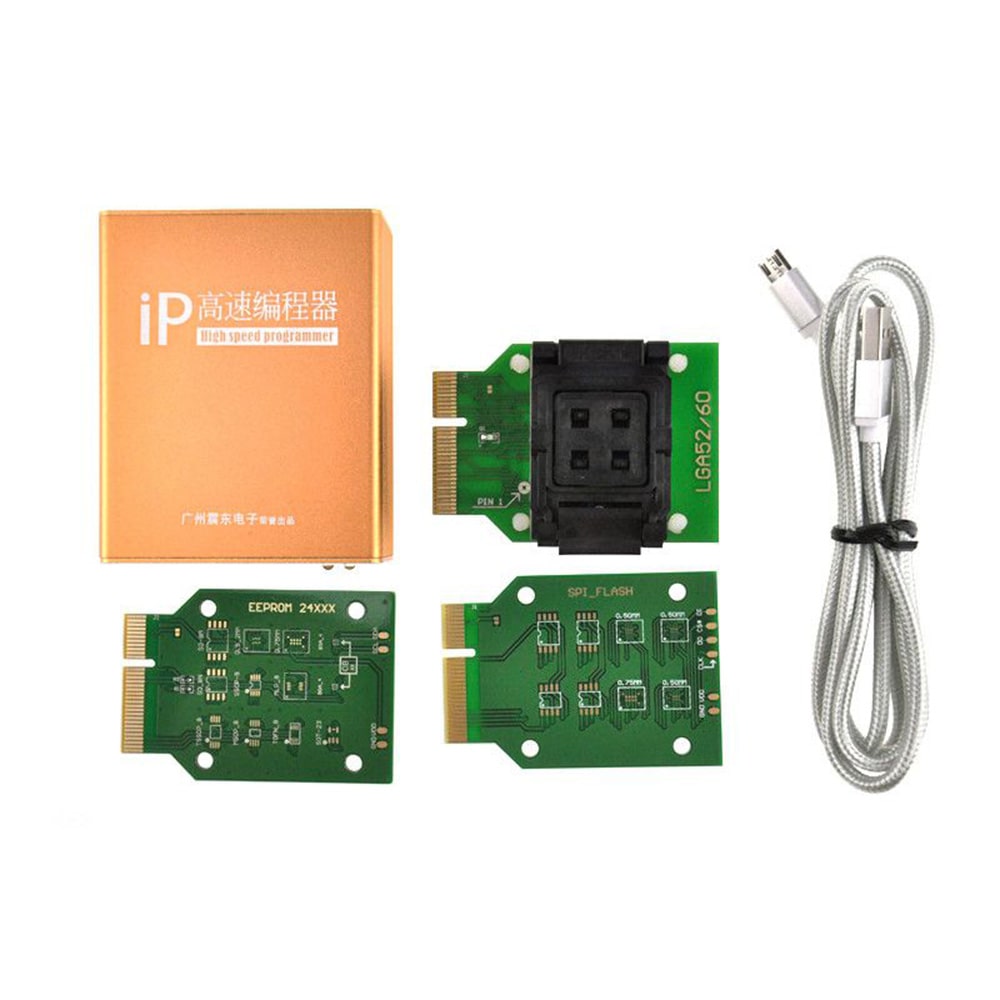

IP-BOX V2 Package Content:

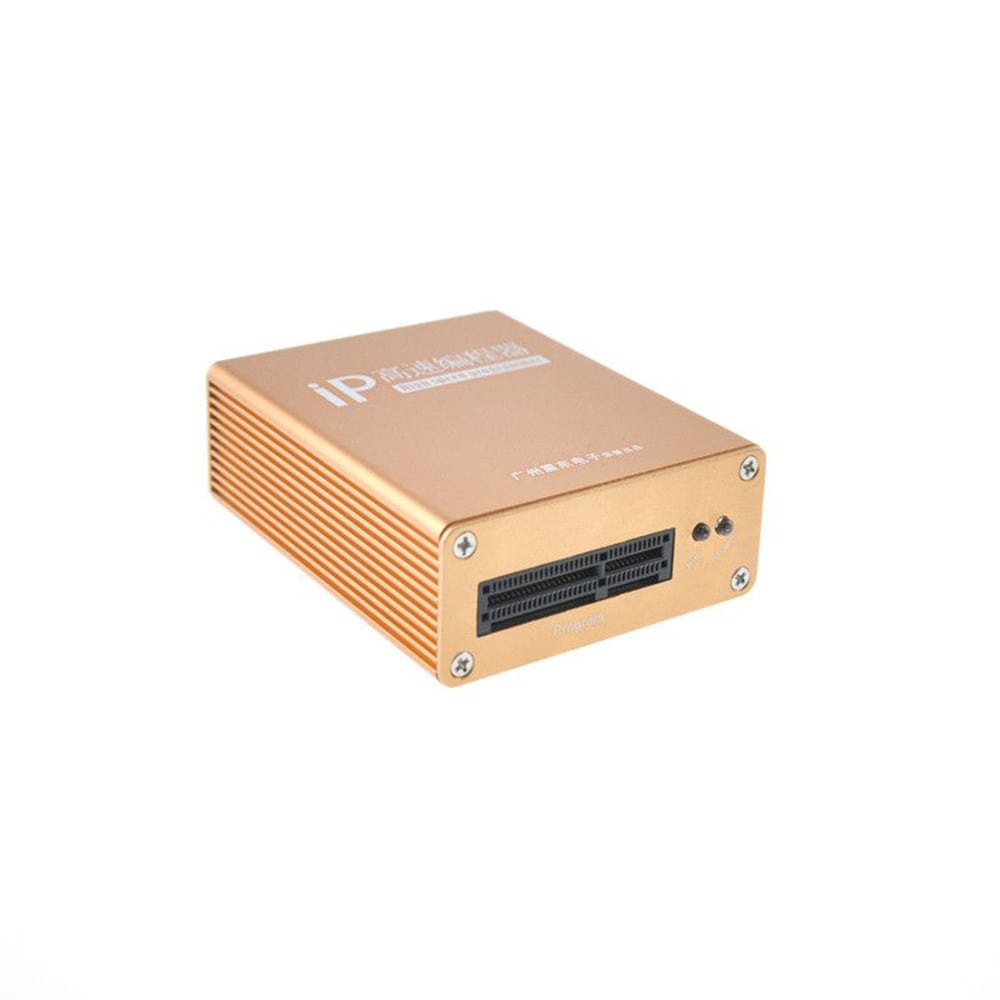

- 1pcs: IP-BOX 2

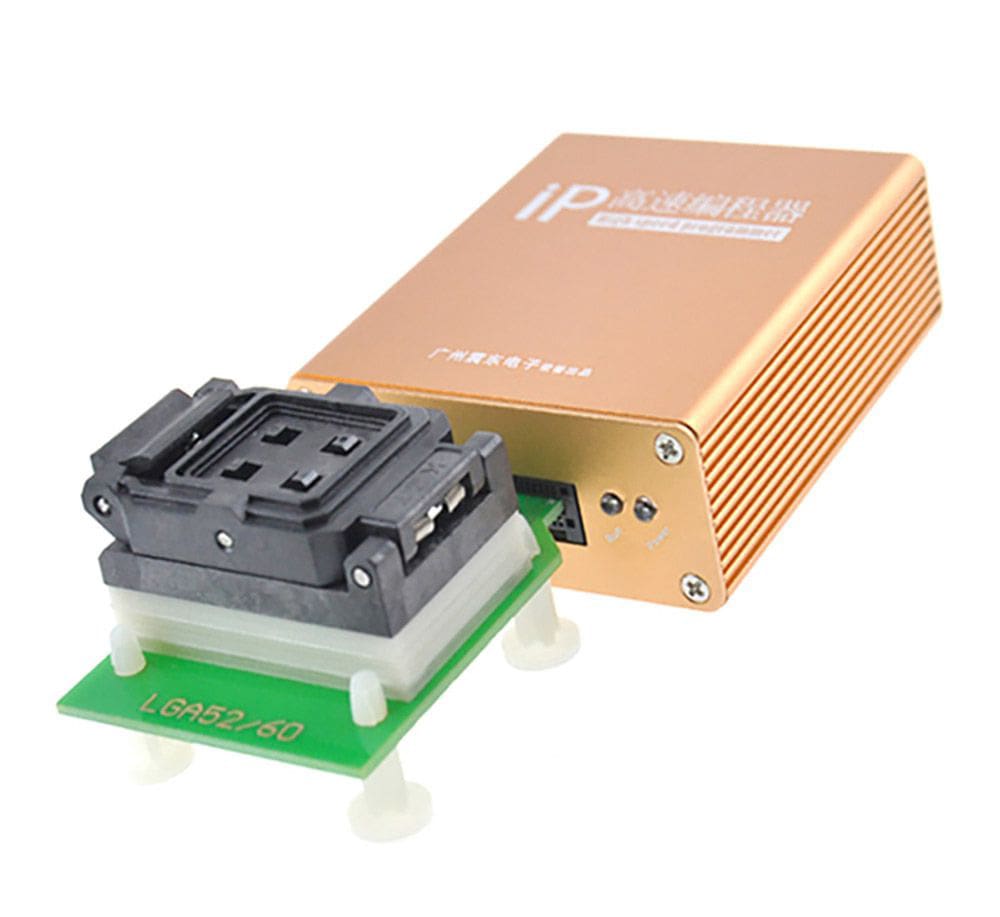

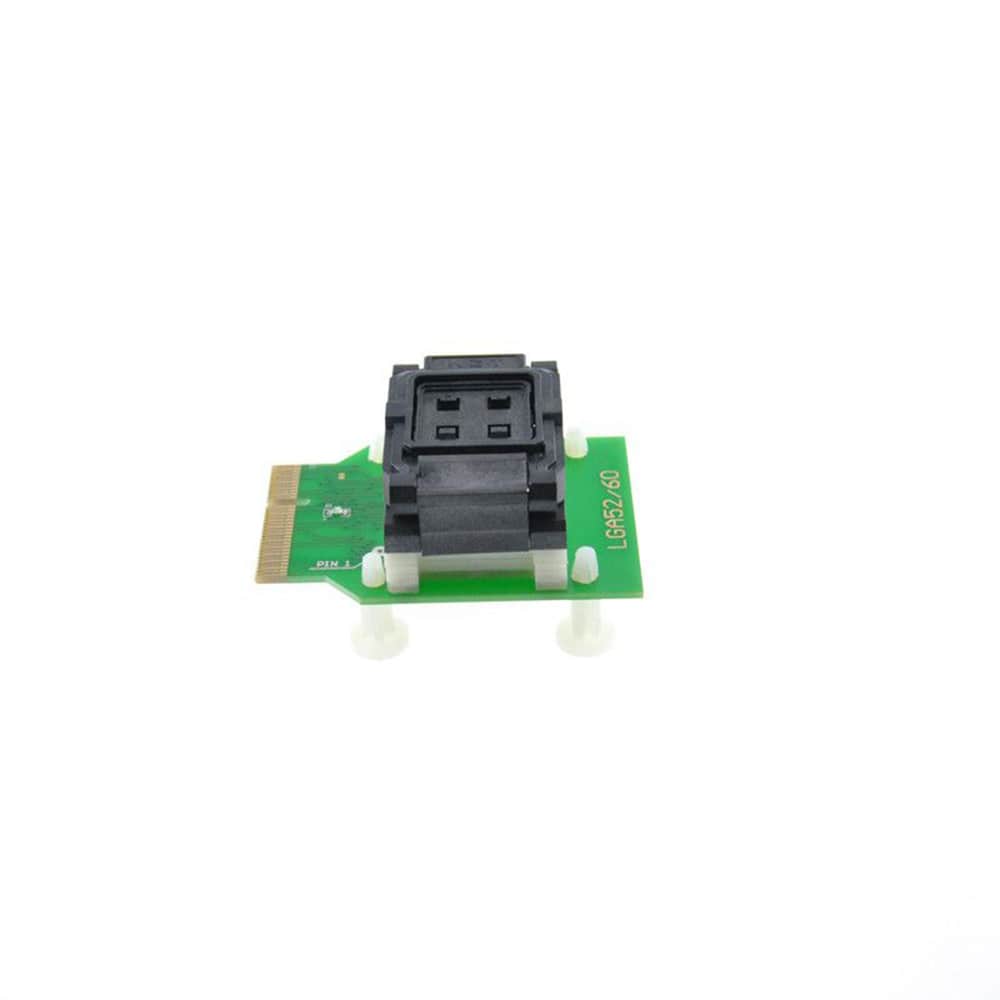

- 1pcs: LGA5260 Test socket (fixture)
- 1pcs: SPI Flash Test socket (connection PCB)
- 1pcs: EEPROM IC Test socket (connection PCB)
- 1pcs: USB Cables
