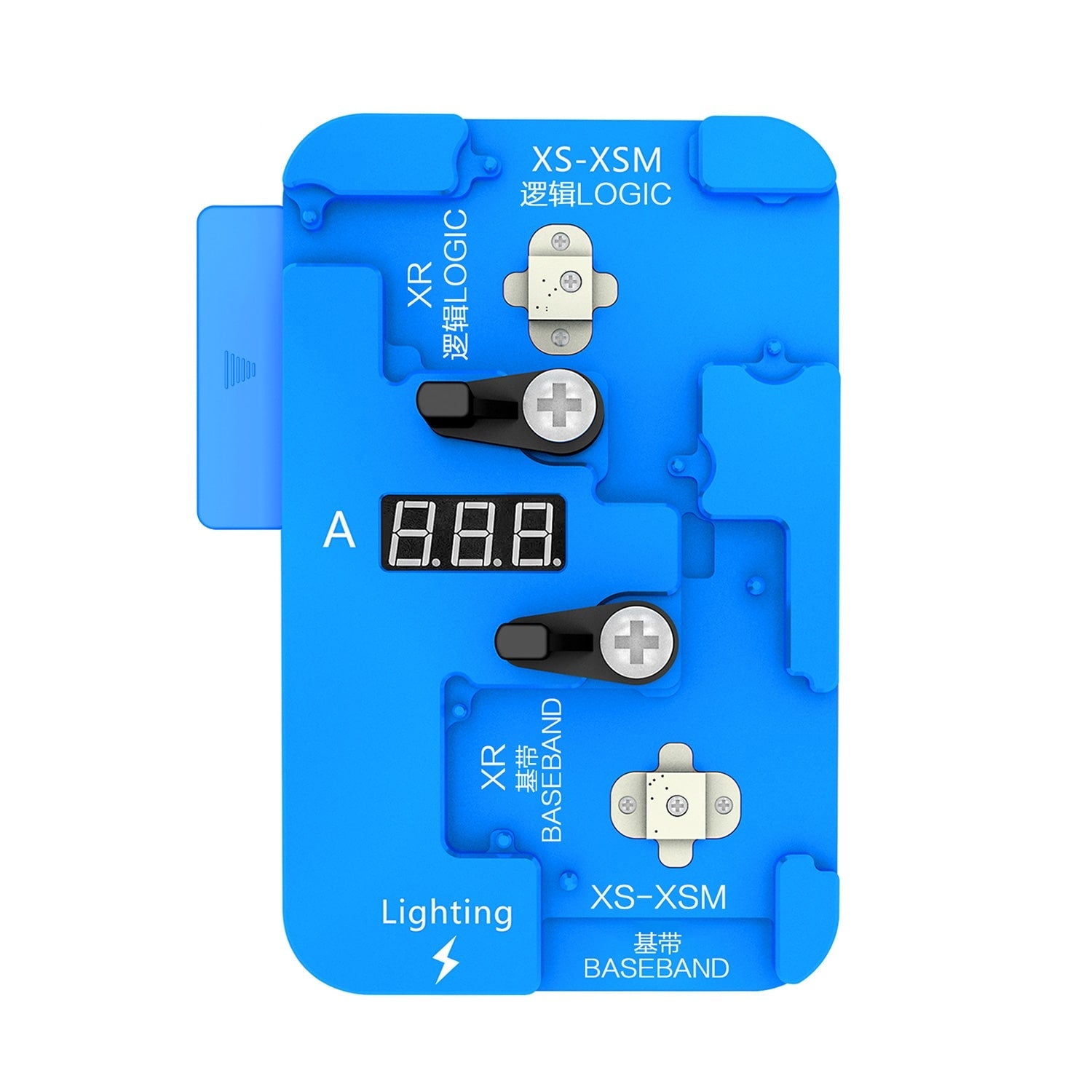

JC MODULE 3IN1 LOGIC BASEBAND EEPROM CHIP NON-REMOVAL FOR IPHONE XR/XS/XS MAX
Compatible:iPhone XS Max
Quantity:
Overview:
- JC BLE-X Baseband/Logic Non-removal Module bring you below great features,
- Online offline dual mode supported 2. Intel baseband/ Qualcomm baseband/logic chip supported 3. Risk free non-removal operations Data Read/write/backup/edit/burn supported 5. OLED display real time indicate voltage of logic board 6. XR/XS/XS-MAX Supported.
- Bring you the ultimate experience for logic/baseband chip data read, backup and burn into new replacement logic board
- Pro1000S + XS-XSM offline mode operation
Model:
- BLE-XS
Features:
- 1. Online offline dual mode supported
- 2. Intel baseband/ Qualcomm baseband/logic chip supported
- 3. Risk free non-removal operations
- 4. Data Read/write/backup/edit/burn supported
- 5. OLED display real time indicate voltage of logic board 6. XR/XS/XS-MAX Supported

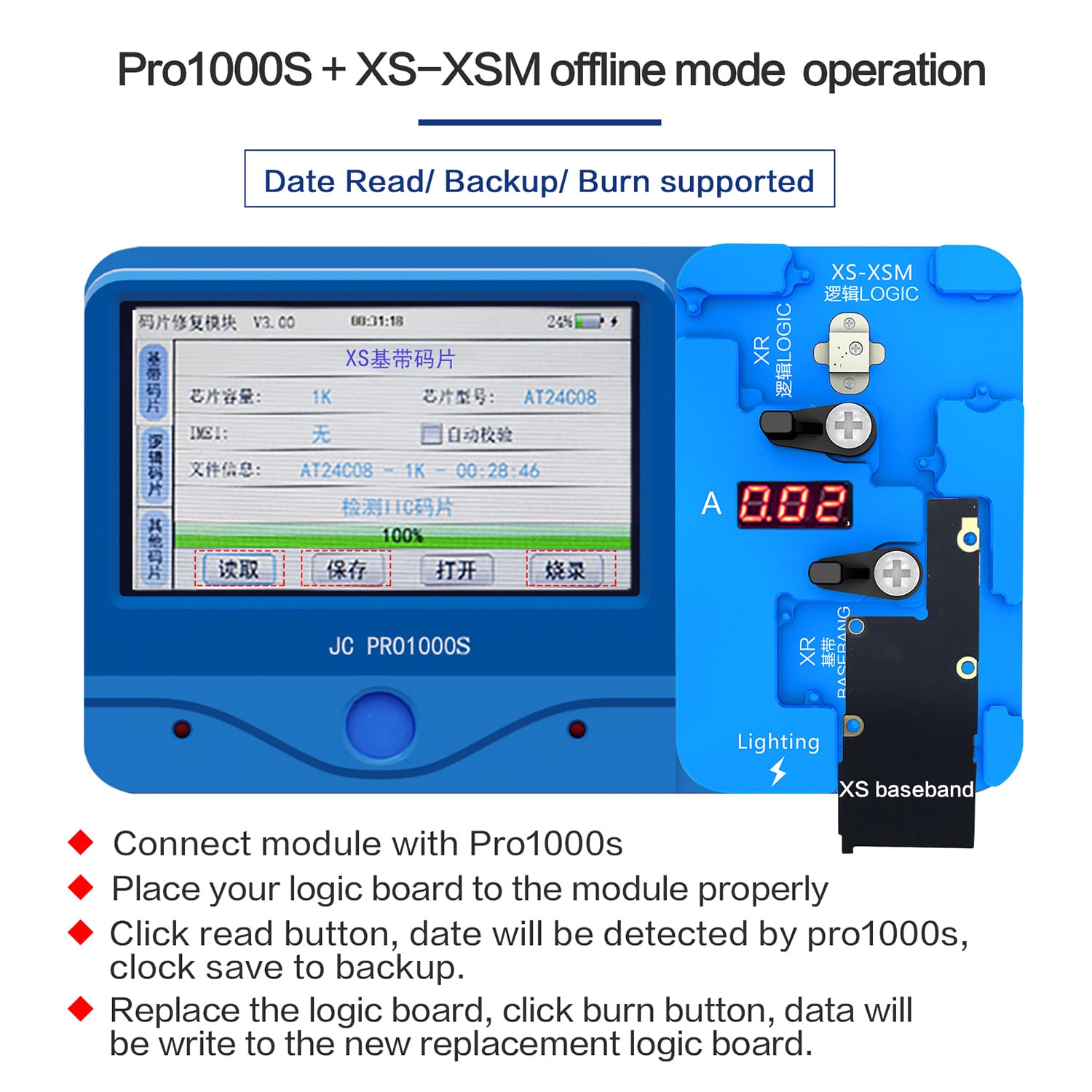

Offline mode operations:
- 1.Connect module with pro1000s
- 2.Place your logic board to the m module properly
- 3.Click the read button, data will be detected by pro1000s, click save button to backup
- 4.Replace the logic board, lock the burn button, data will be write to the new replacement logic board

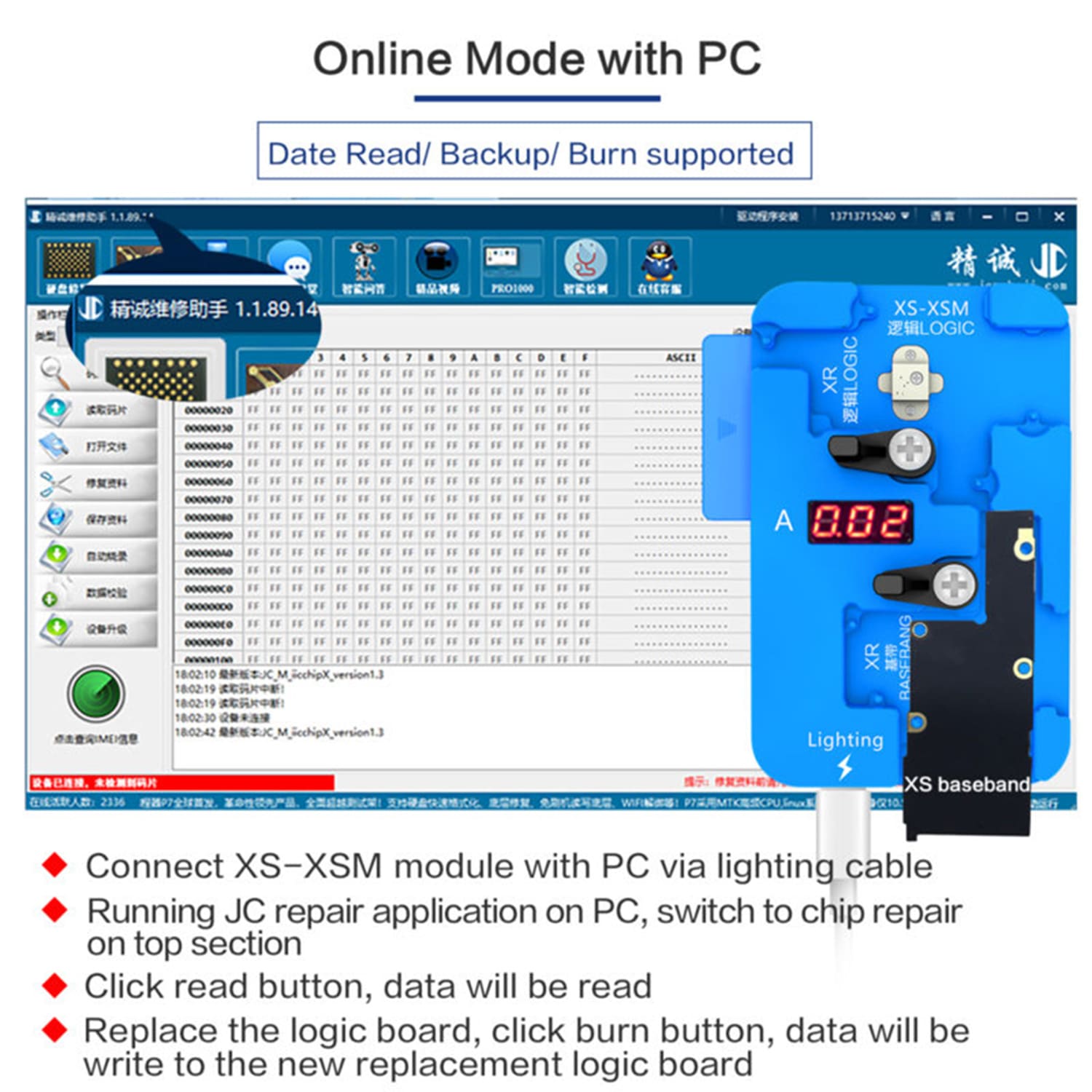

Online mode operations
- 1.Connect BLE-XS Module with PC lightning cable
- 2.running JC repair application on PC, switch to chip repair on top section
- 3.Click read button, data will be read
- 4.Replace the new replacement logic board, click burn button, date will be write to thee new replacement logic board
Package include:
- 1 x JC Logic/Baseband EEPROM Chip Non-removal Module for iPhone XR/XS/XS MAX
