JC MODULE LOGIC BASEBAND EEPROM CHIP NON-REMOVAL FOR IPHONE 11-PRO MAX
Compatible:iPhone 11 Pro Max
Quantity:
Pro1000S + 11-Pro Max offline mode operation
Overview:
- Bring you the ultimate experience for logic/baseband chip data read, backup and burn into new replacement logic board
Offline mode operations:
- 1.Connect module with pro1000s
- 2.Place your logic board to the m module properly
- 3.Click the read button, data will be detected by pro1000s, click save button to backup
- 4.Replace the logic board, lock the burn button, data will be write to the new replacement logic board
Online mode operations:
- 1.Connect 11-Pro Max Module with PC lightning cable
- 2.running JC repair application on PC, switch to chip repair on top section
- 3.Click read button, data will be read
- 4.Replace the new replacement logic board, click burn button, date will be write to thee new replacement logic board
Features:
- 1. Online offline dual mode supported
- 2. Intel baseband/ Qualcomm baseband/logic chip supported
- 3. Risk free non-removal operations
- 4. Data Read/write/backup/edit/burn supported
- 5. OLED display real time indicate voltage of logic board
- 6. 11-Pro Max Supported
Package include:

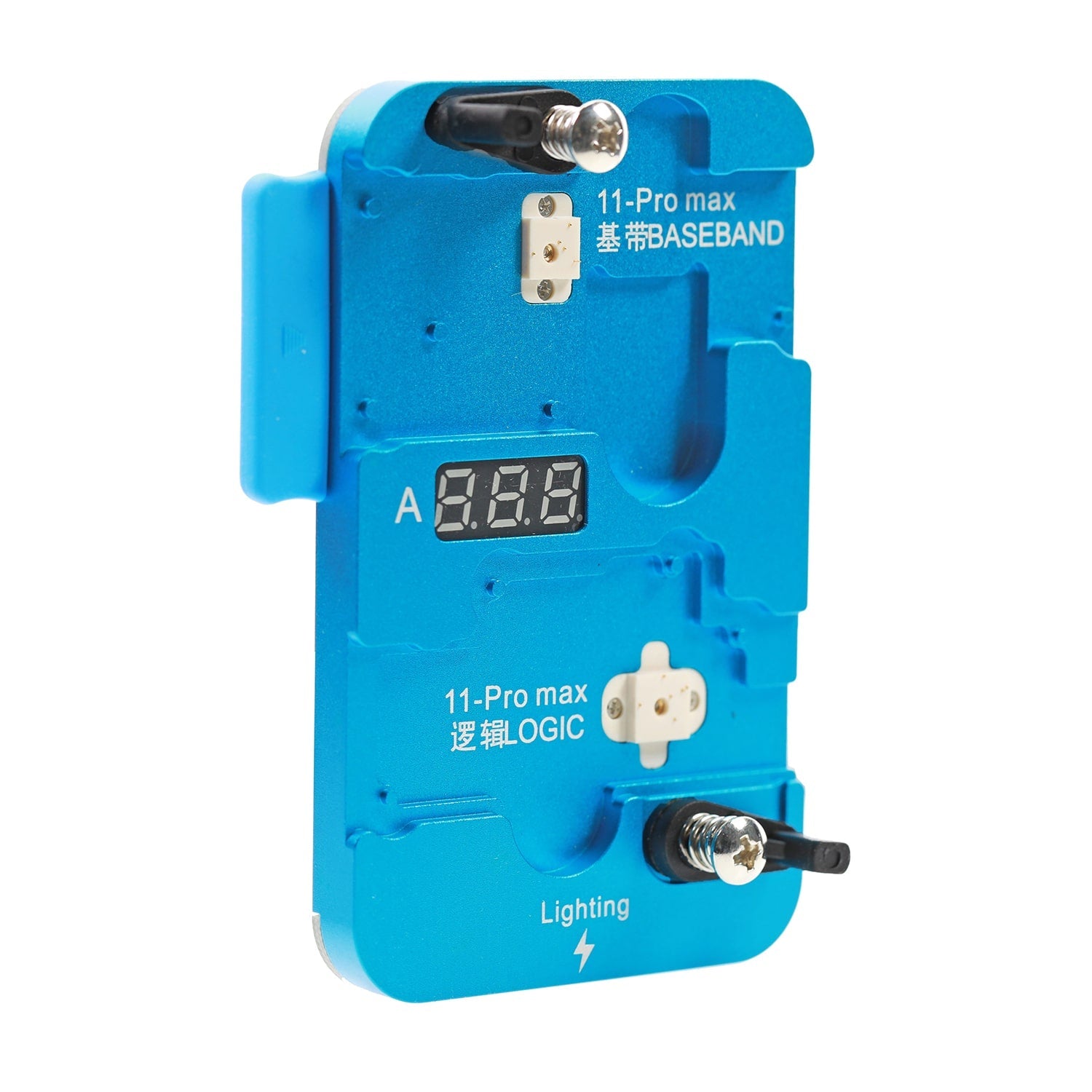

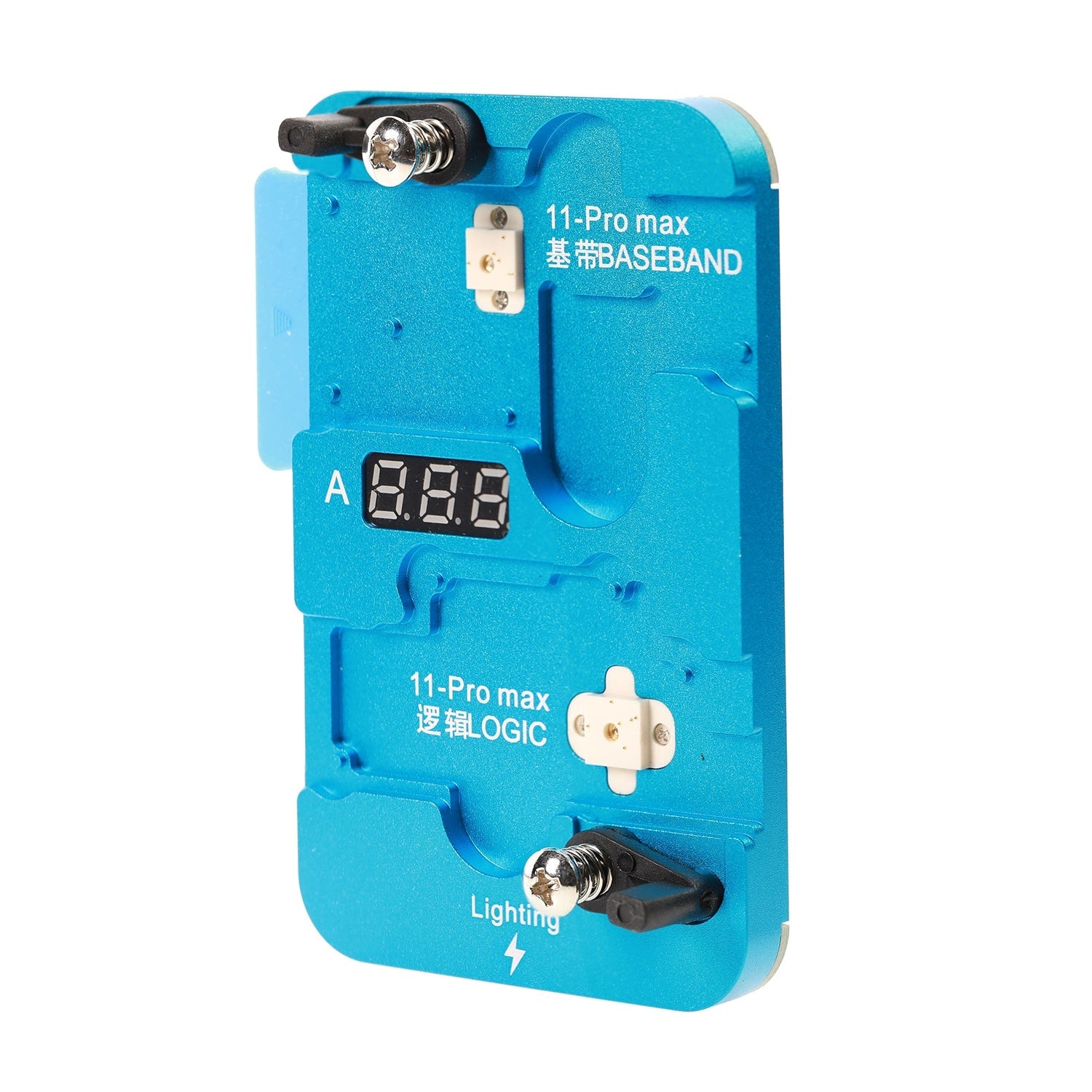

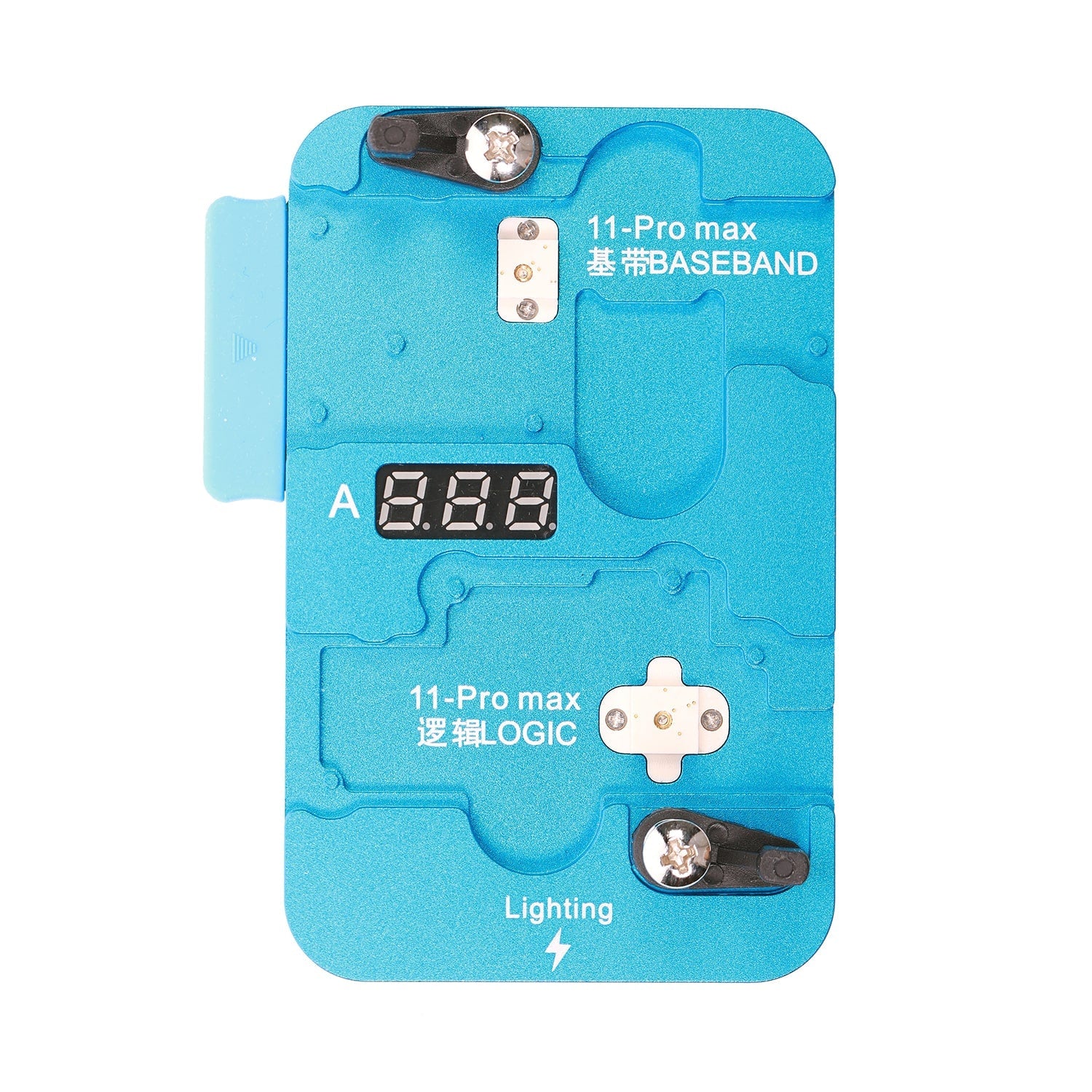

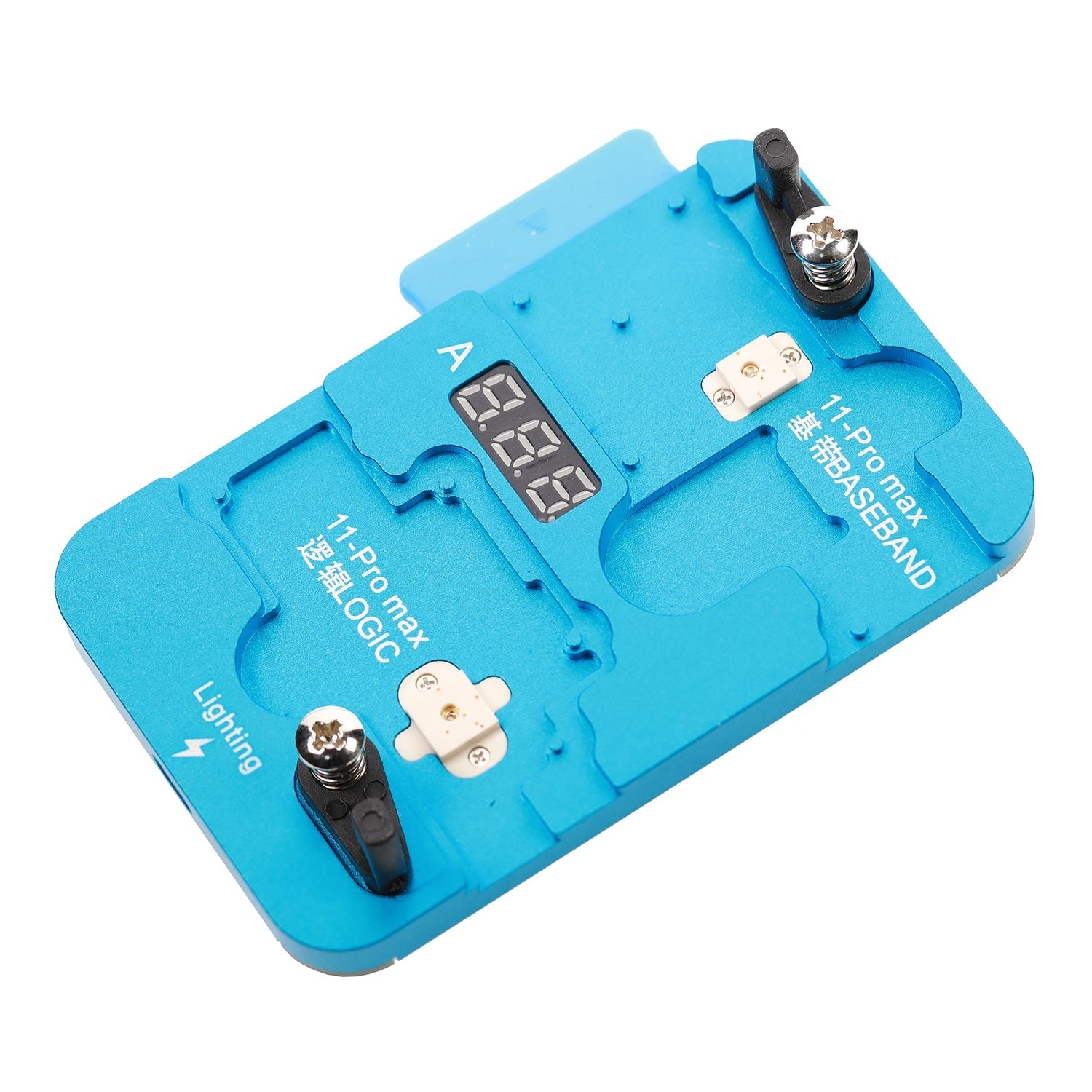

- 1 x JC Logic/Baseband EEPROM Chip Non-removal Module for iPhone 11-Pro Max
