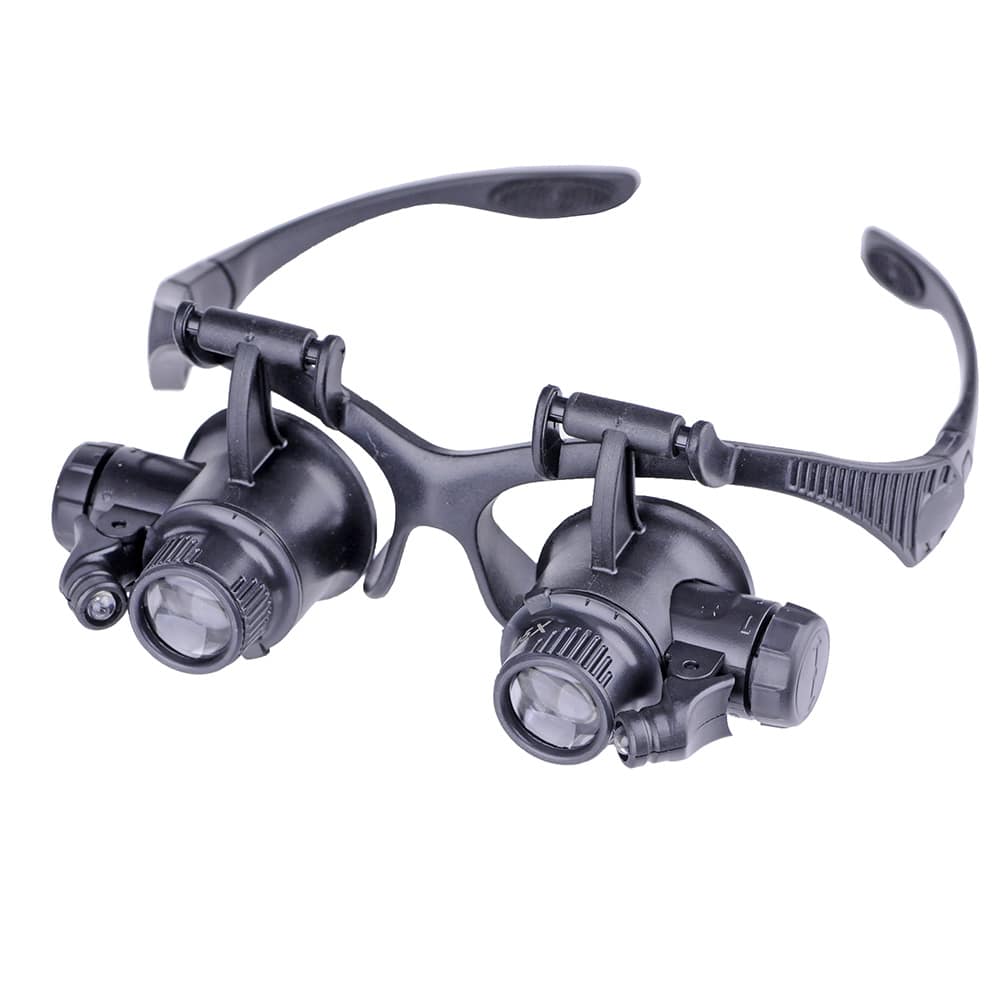

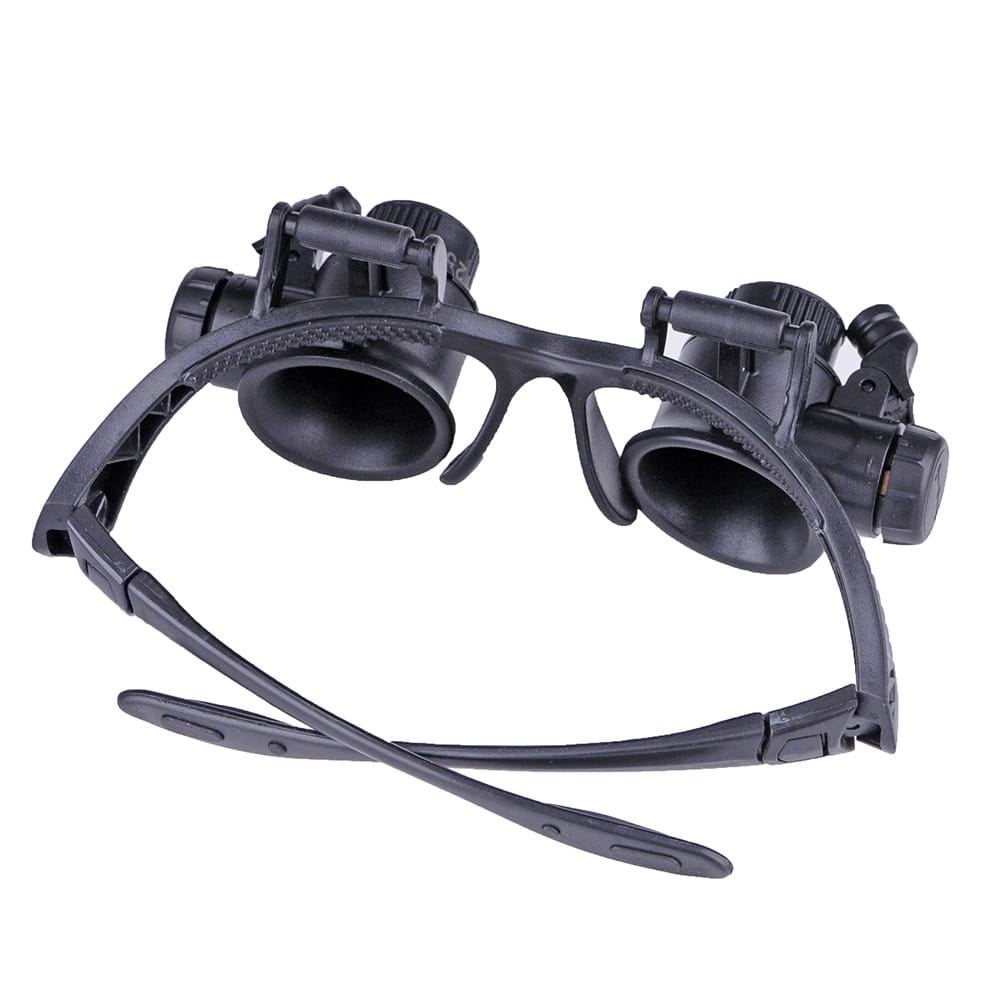

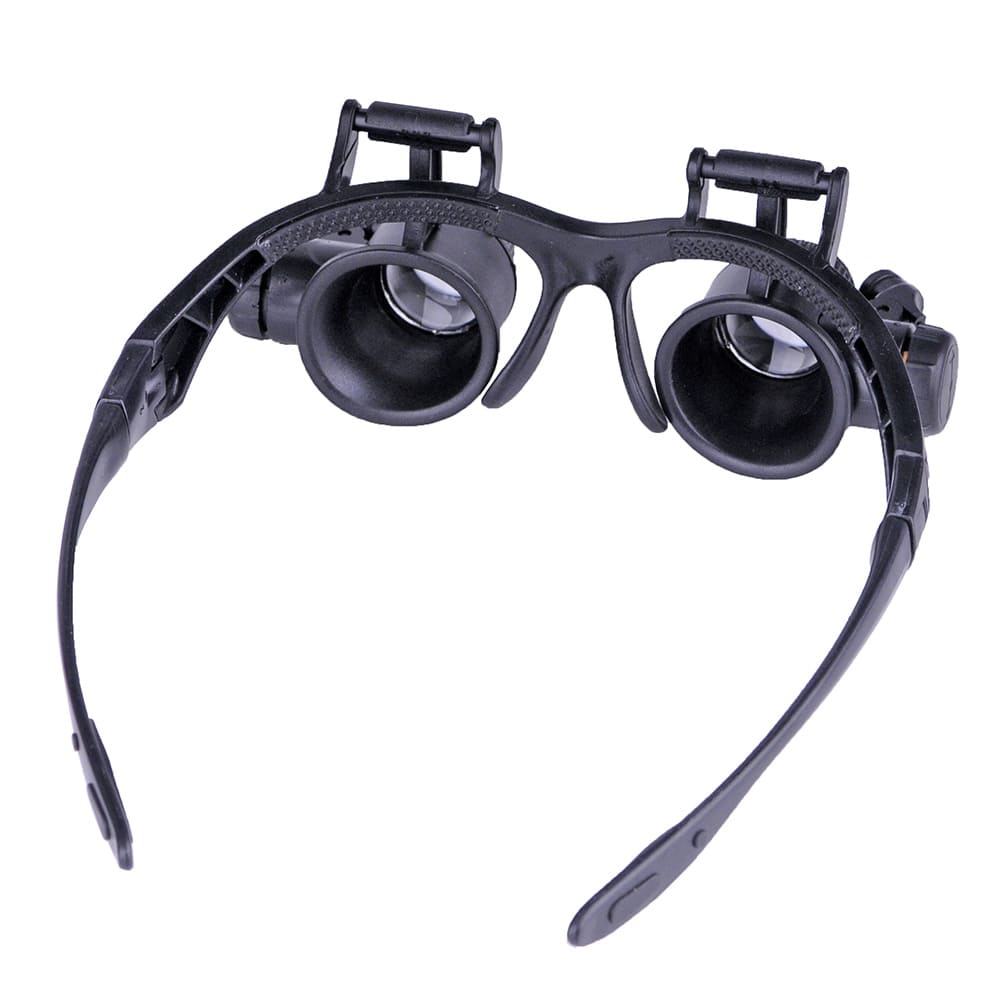

LENS MAGNIFICATION 10X 15X 20X 25X GLASSES TYPE WATCH REPAIR MAGNIFIER WITH LED LIGHT #9892GJ
Quantity:
Watch Repair Magnifier(upgeaded version)
- lens magnifications: 10x,15x,20x,25x
- Left/right double eye patches magnifier with LED.

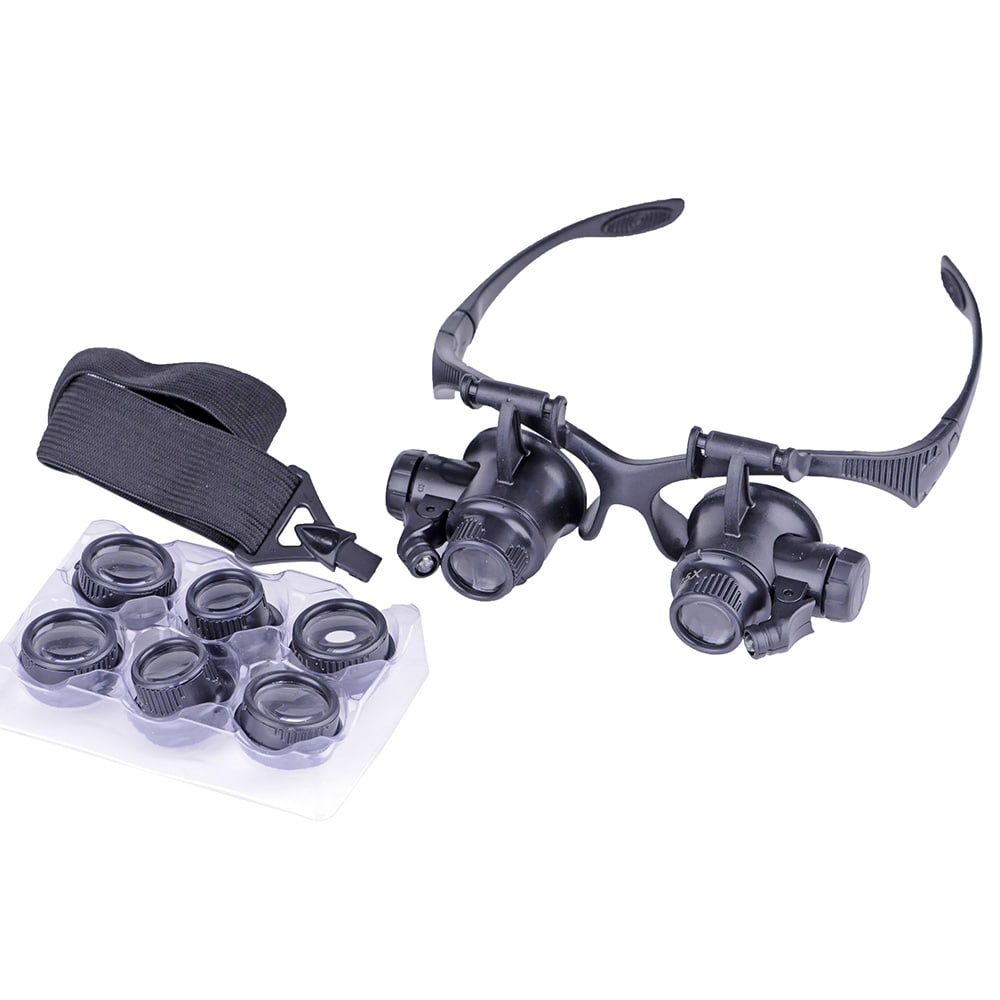

- 4 different magnifications can be interchanged quickly.
- Bracket and headband is interchangeable to each other.
Application range:
- mechanical processing,electronic repair,jewelry appraisal,timepieces repair and miniature engraving etc.
Features:
- 1,Install two left/right magnifying eye patches with LED on the lens bracket,each eye patch is furnished with 4 lens barrels of different magnifications.It is advisable to choose lens barrel of appropriate magnification according to the size of the object to be observed.If this magnifier is used for long time,you may use two lens barrels alternately to eliminate visual fatigue and improve work efficiency.

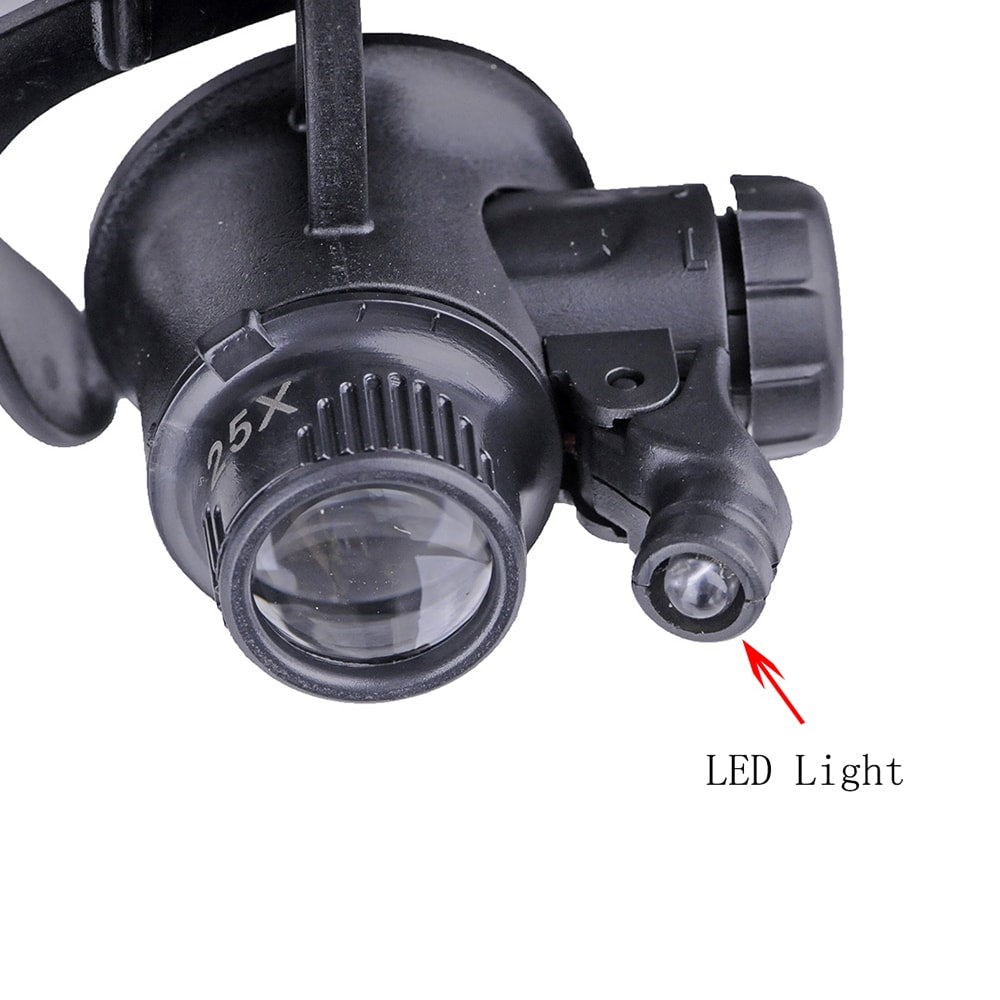

- 2,LED light source and battery compartment are designed separately.
- (1)LED lamp holder and control switch battery compartment are designed separetely to facilitate stabilizing light source irraadiation point in time of operation.It is not required to readjust the orradiation point for repeated use.
- (2)Switching operation is quite easy.Rotate switch battery cover about 40 degrees clockwise from the dot to lamplight mark,LED light source will be turn on;anticlockwise rotation of switch battery cover will turn off the light source.
- (3)It's easy to replace batteries.Press switch battery cover and rotate it about 30 degrees anticlockwise to make the switch batteries and put three new LR1130 batteries inside,make sure negative poles of batteries face inwards.
- 3,Bracket and headband is interchangeable to each other.As for common bracket-type eye patch magnifier,eye patches will easily fall off during use because the LED light source on eye patches is relatively heavy.This product is extra installed with interchangeable headband which can effectively solve such as falling-off problem.Eye patches will not fall off despite of long working hours or too much work.
- 4,Eye patches can move 5mm leftwards and ringwards on the bracket.Face width and distance between left/right eyeballs can be adjusted to adapt to the central position of eye patches between bothe eyes.
- 5,Eye patches can rotate 180 degrees upwards and downwards on the bracket.It's not required to take down the whole lens bracket when the magnifier is not used temporarily and you can reuse it conveniently.
