MHP30 MINI HOT PLATE PREHEATER
Condition:MHP30
Quantity:
Description:

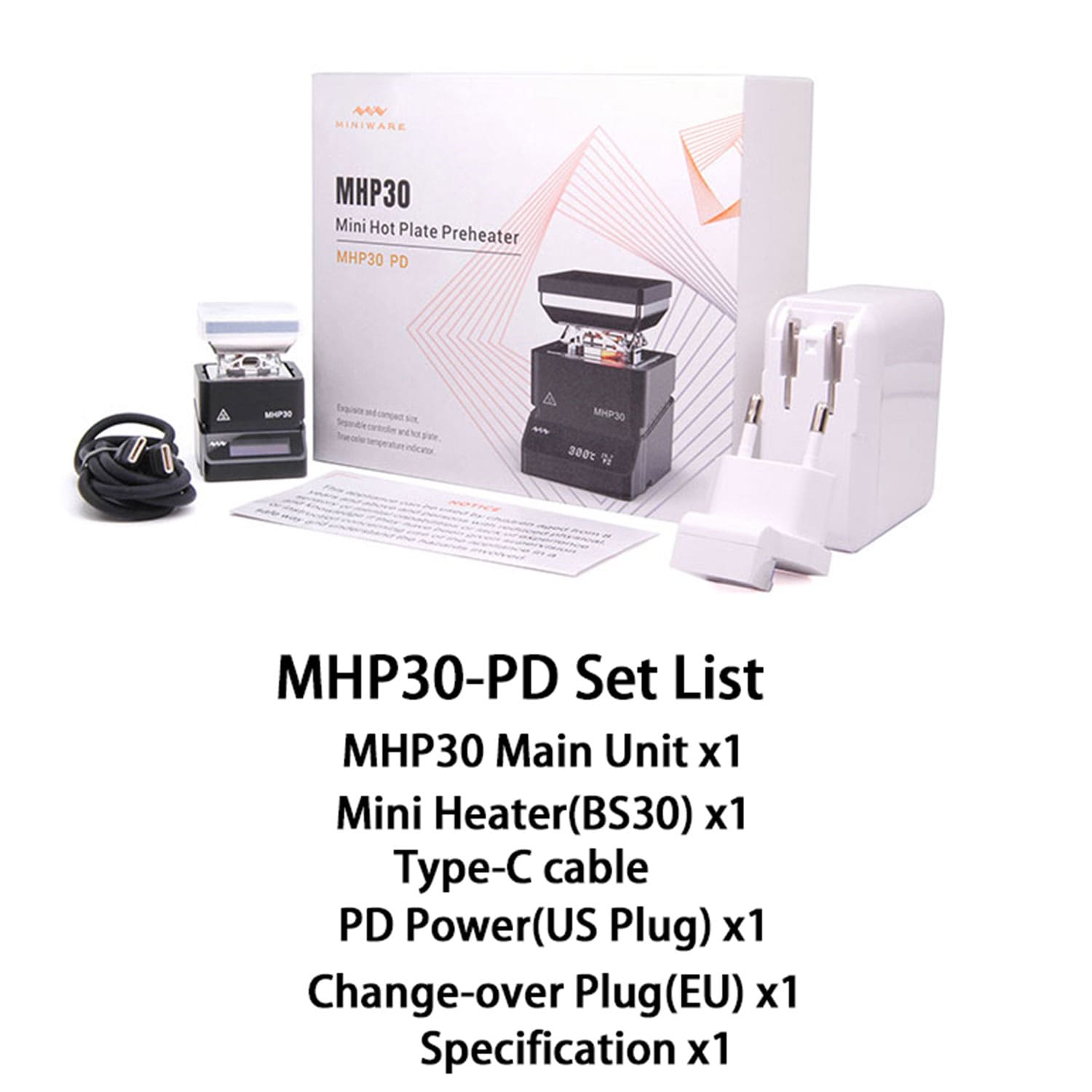

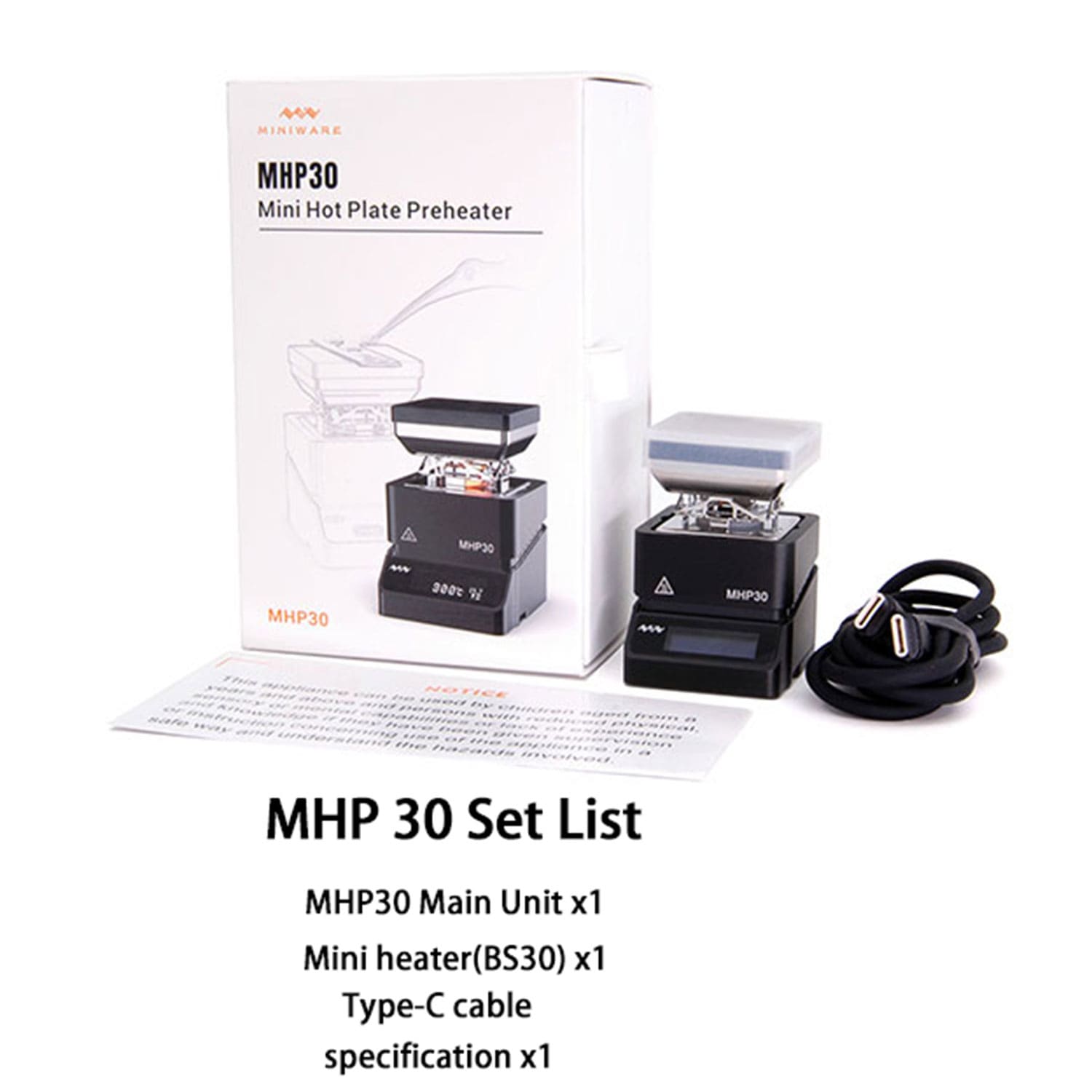

- The difference between MHP30 and MHP30-PD suits is that the PD suit has a 65W PD power adapter and a European standard converter head, as well as other accessories.
- [The 65W PD power adapter defaults to American standard (commonly used in China), and when the adapter is plugged into the conversion head of European standard, it becomes European standard to meet the needs of European users].

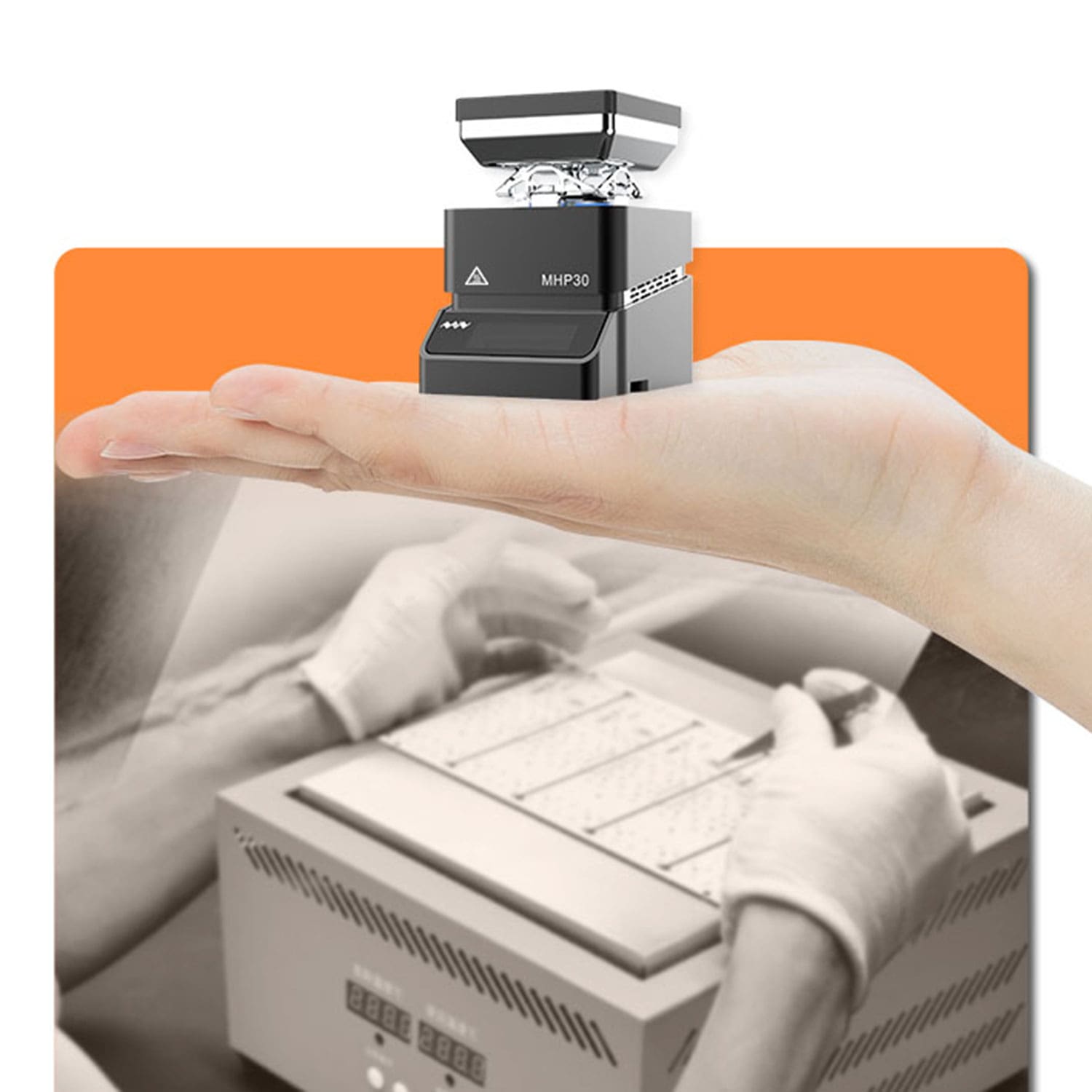

- MHP30 mini constant temperature heating table is an intelligent constant temperature heating table with supermini volume. It eliminates redundancy, retains enough effective heating area, greatly saves energy consumption and heating time, and condense the large constant temperature heating table into pocket volume.

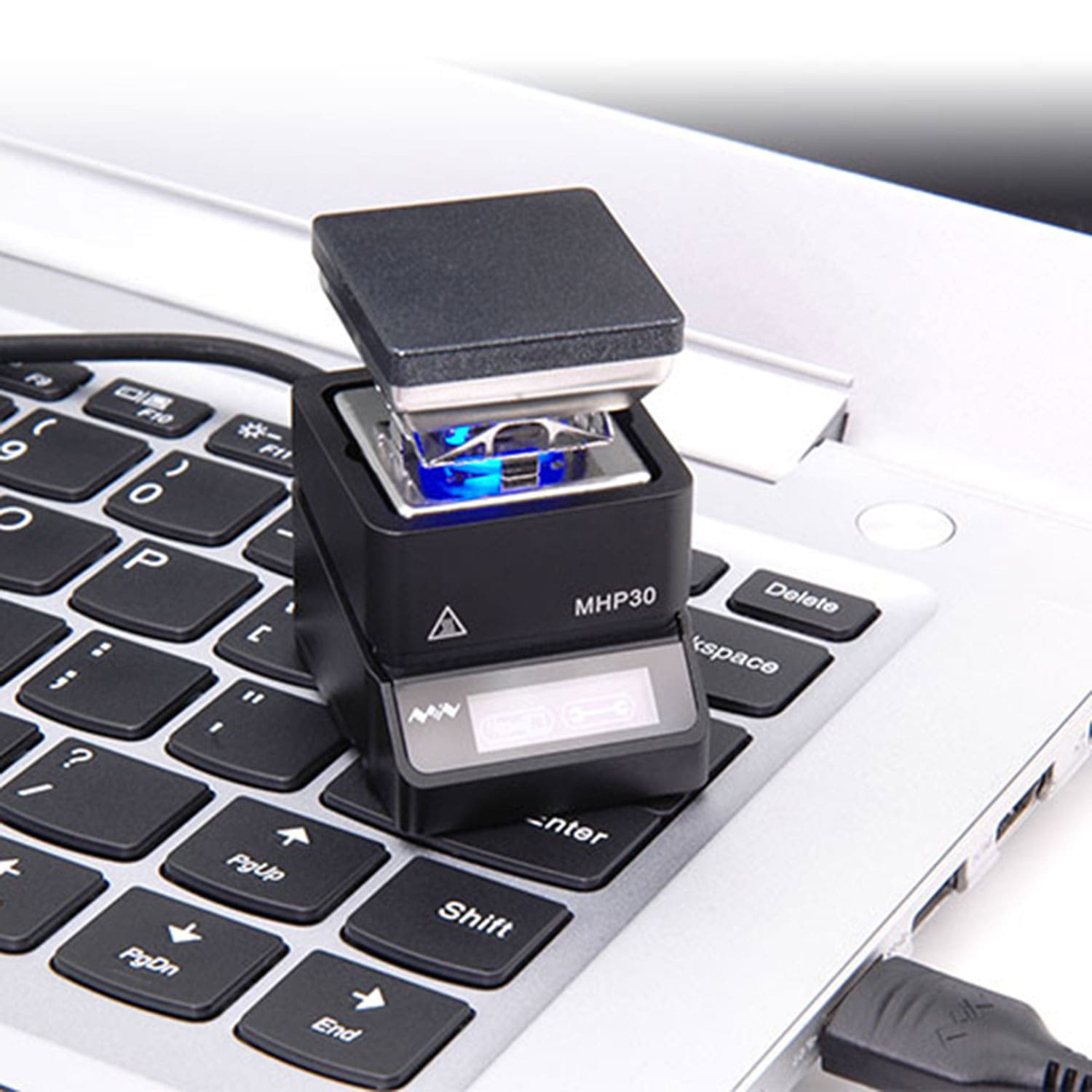

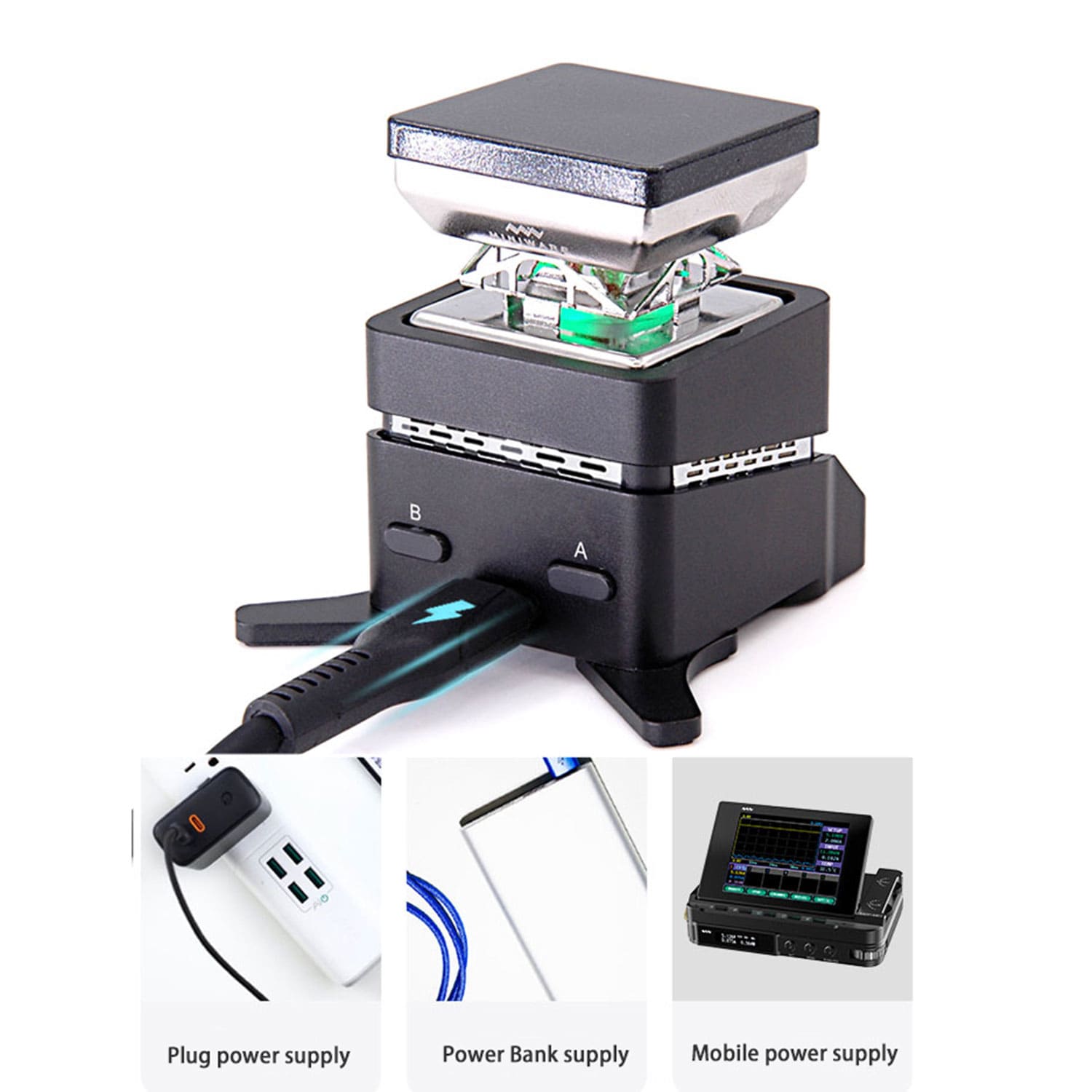

- With the popular PD power input, MHP30 takes the heating table off the table and makes it one of the portable heating tools.

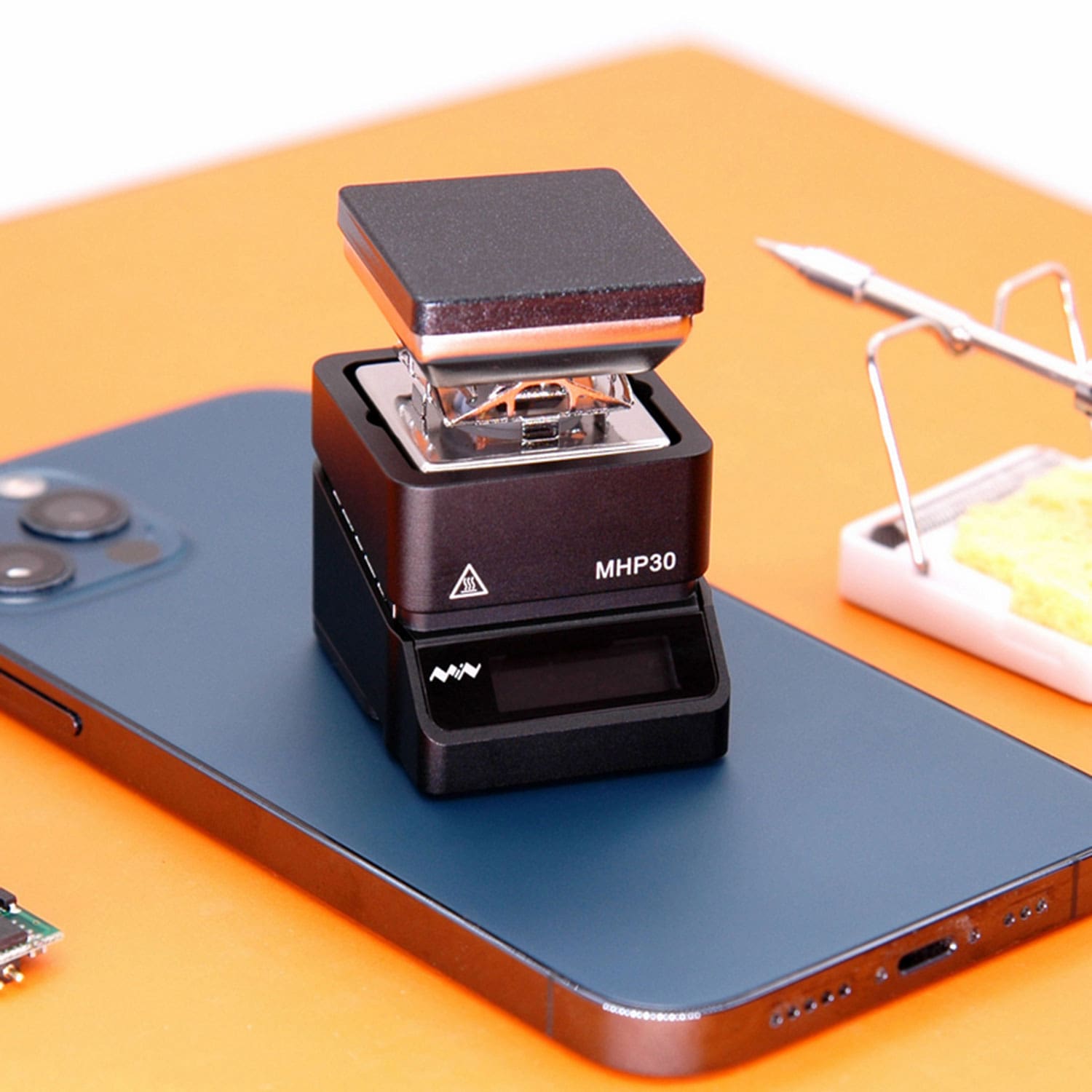

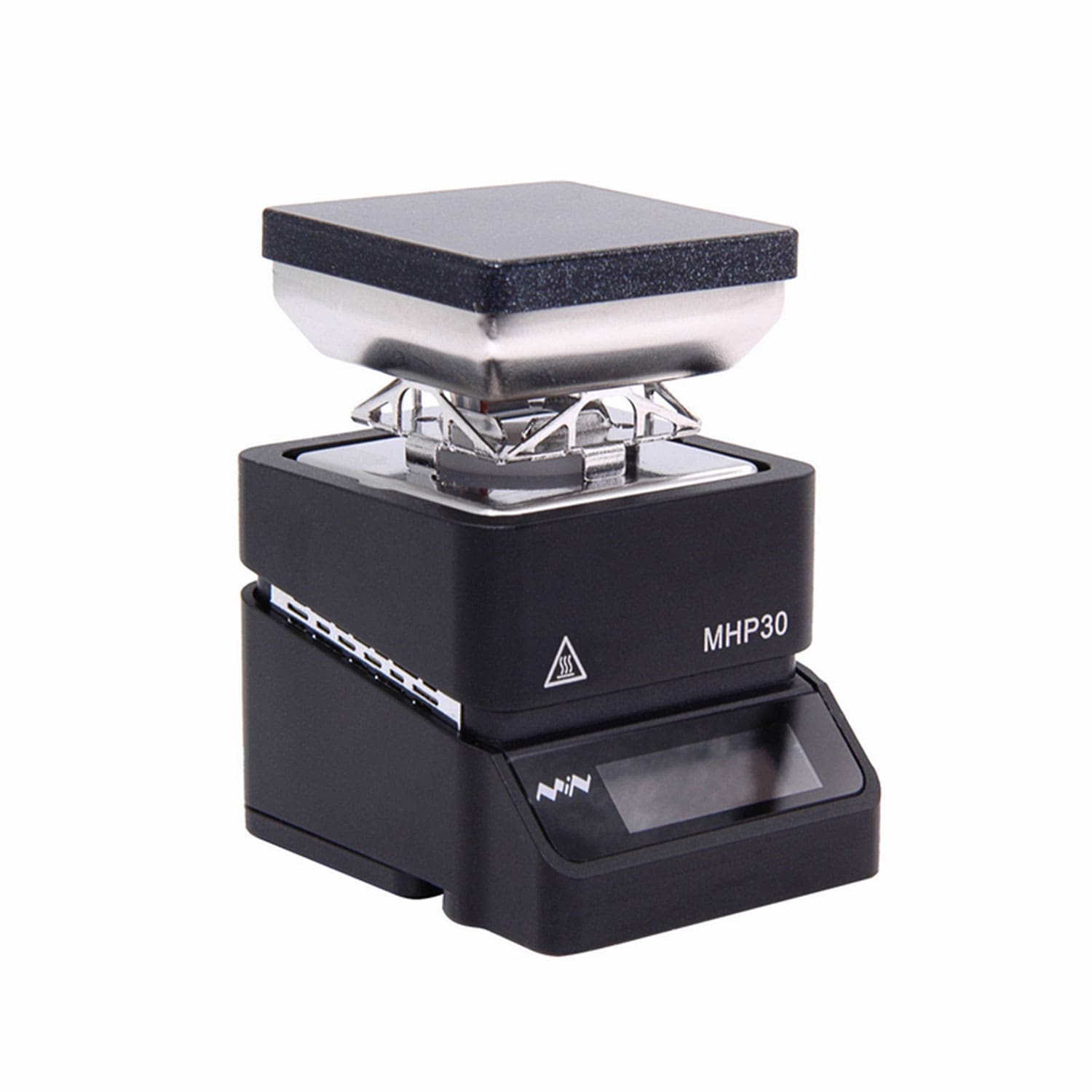

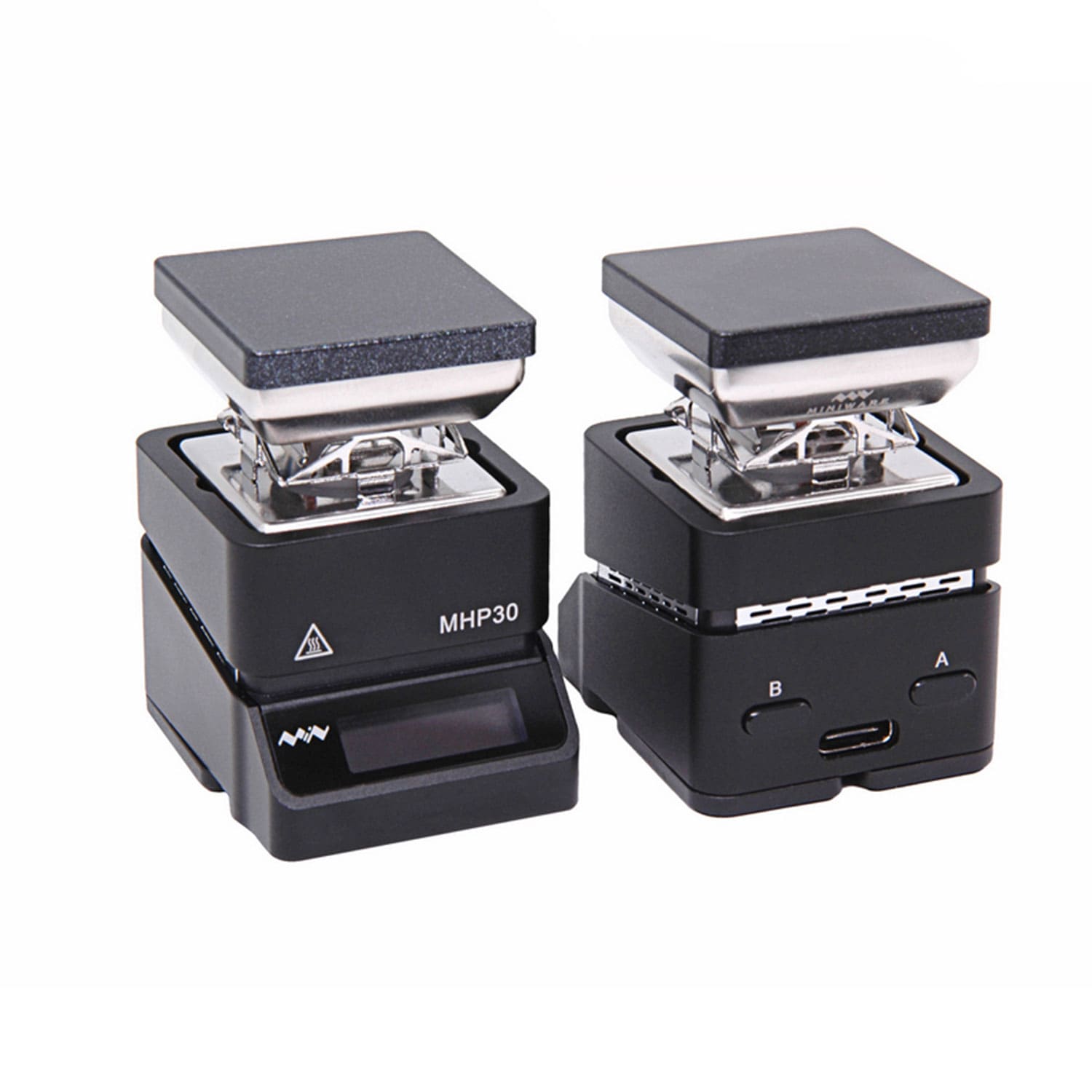

- MHP30 is a small, delicate, square-shaped tower with a total height of just 5.2cm (2 inches).
- The main body adopts the split design, and the control end and the heating body can be flexibly separated and replaced.

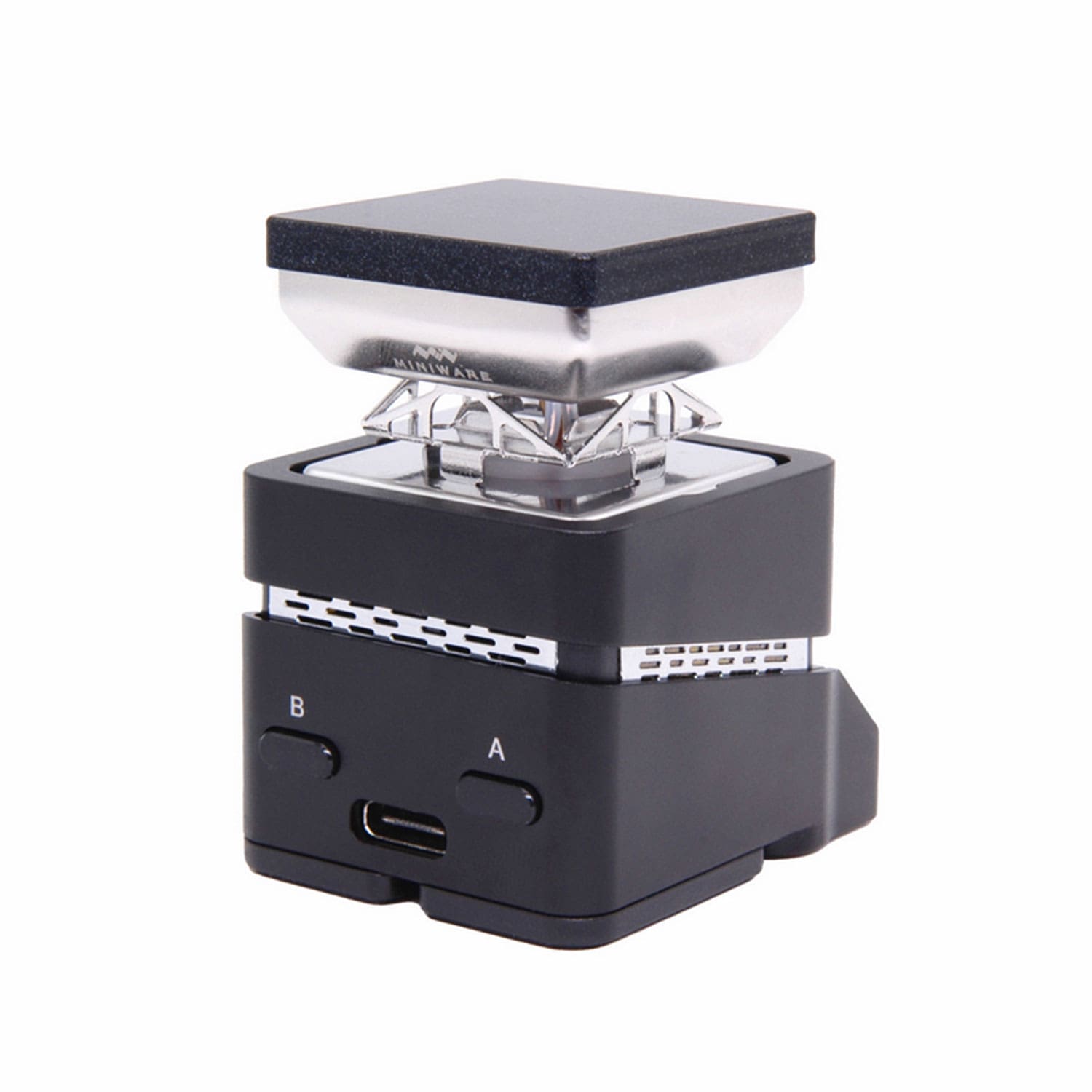

- The control end is equipped with an OLED display screen and two solid keys (back), and the bottom is provided with support feet that can be expanded to make the whole system more stable and reliable when standing on the plane.
- The heating part of the heating body is made of brassy nano-ceramic coating with a smooth surface and uniform heating.
- The stainless steel hollow-out bracket is designed to connect the heating part to the circuit board, and directly insert the control end through the connecting pin.

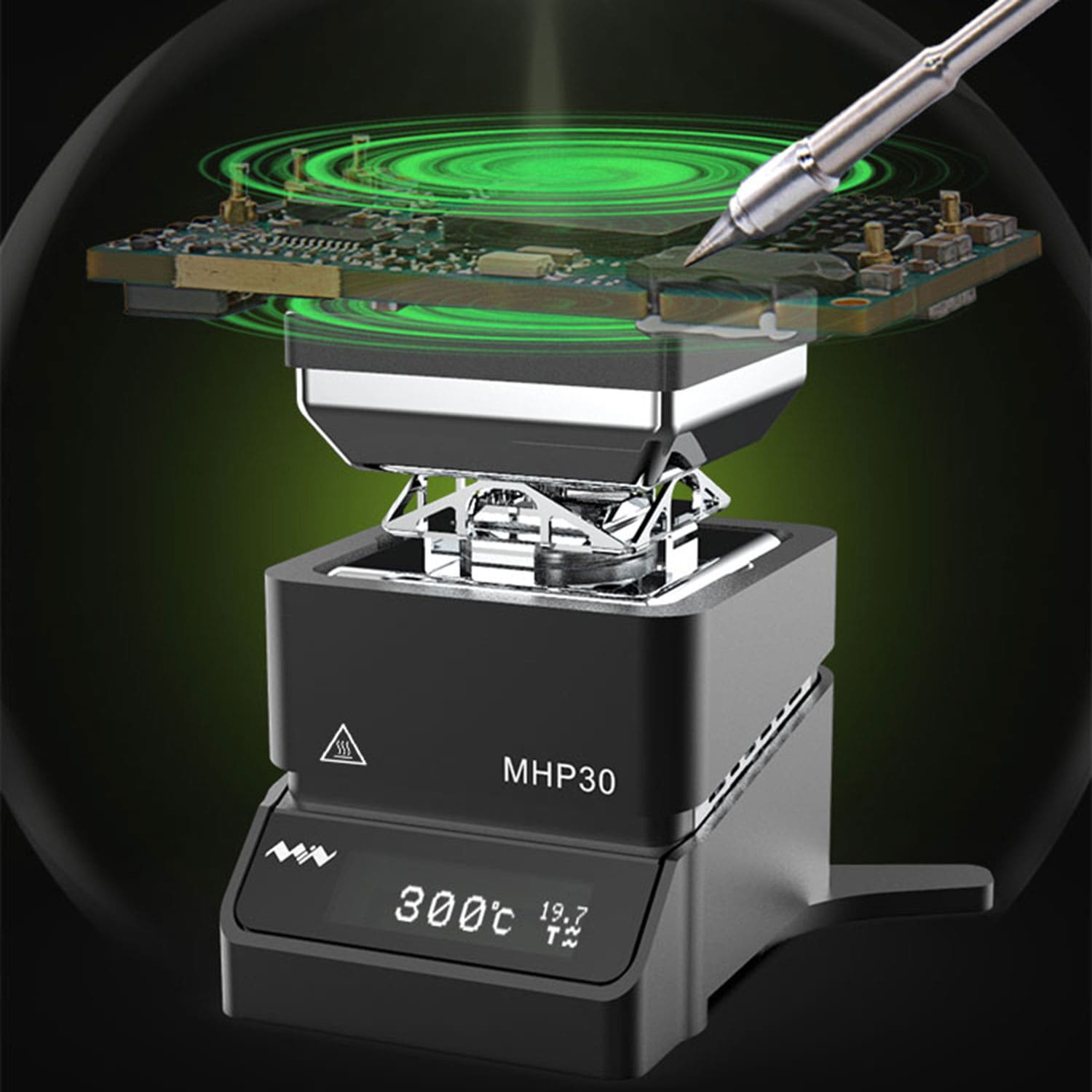

- MHP30 inherits the efficient performance of MINDWARE heating products. MHP30 has the excellent thermal performance. When a 65W PD power supply is used, heating from room temperature (26°C) to 300°C takes only 150 seconds.

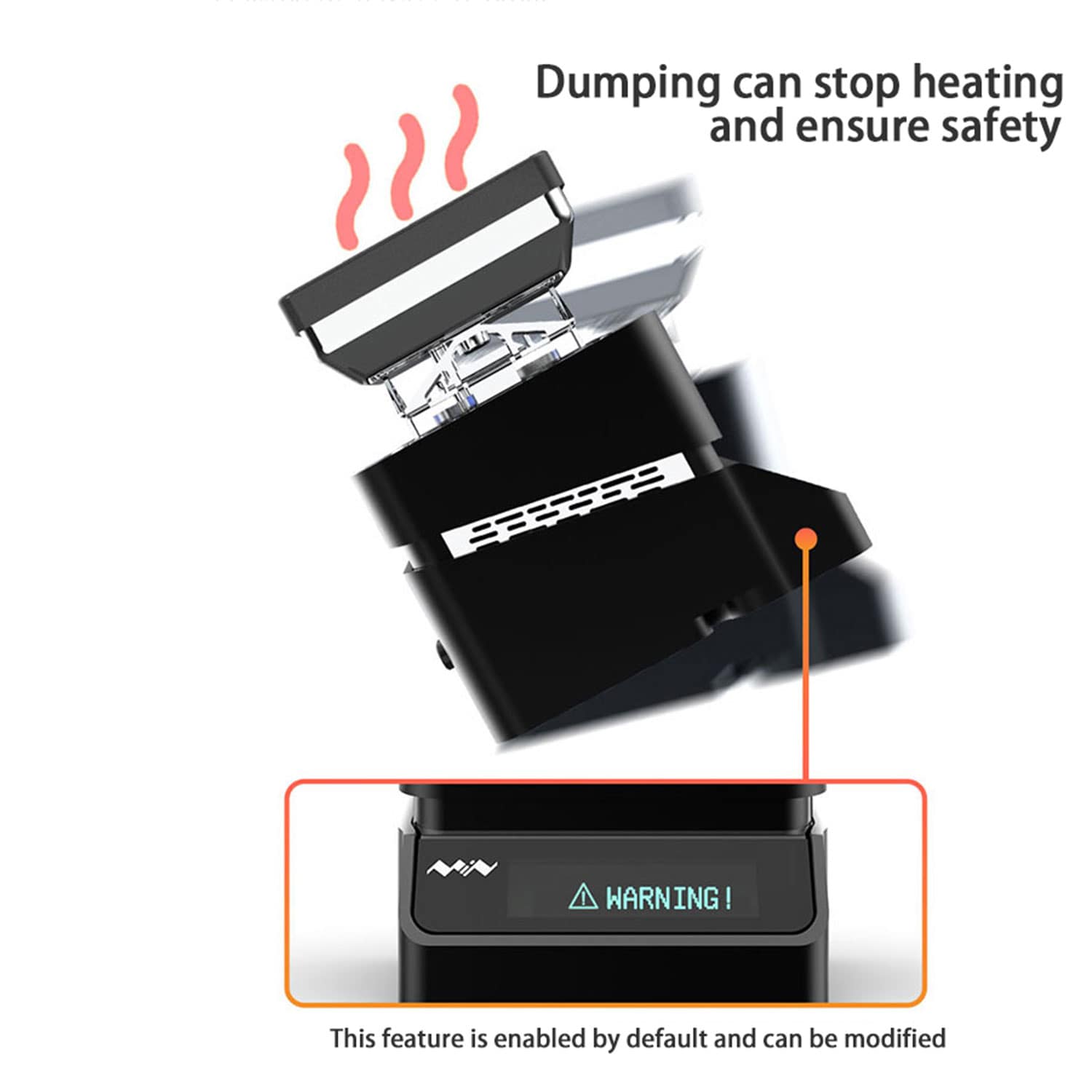

- In addition to firmware upgradable functions, MHP30 also has smart menus such as preset temperature, tilt protection, power awakening, automatic sleep, etc. Users can set the corresponding functions on or off according to their needs.
Features:
- Mini size, delicate and cute;
- Split type design, the heating element and control end can be separated and replaced;
- The shell is made of aluminum alloy and hollow-out stainless steel heat sink, with excellent workmanship;
- Built-in OLED display and real color lights, light color can change with temperature;
- One-button heating, temperature control, menu Settings free switch;
- The bottom can expand the support feet, stable support is not easy to fall;
- The brass heating body is coated with nano-ceramic coating, smooth and durable, uniform heating;
- The heating body adopts the futuristic design of the stainless steel heat dissipation bracket, which is both aesthetic and practical.
- PD power supply mode, power up to 60W;
- Heating to 300°C at room temperature (26°C) takes only 150 seconds (65W PD power supply);
- Eliminate redundancy, save energy and reduce emissions, and be environmentally friendly;
- Multiple intelligent modes: preset temperature, tilt protection, power awakening, automatic dormancy, firmware upgrade;

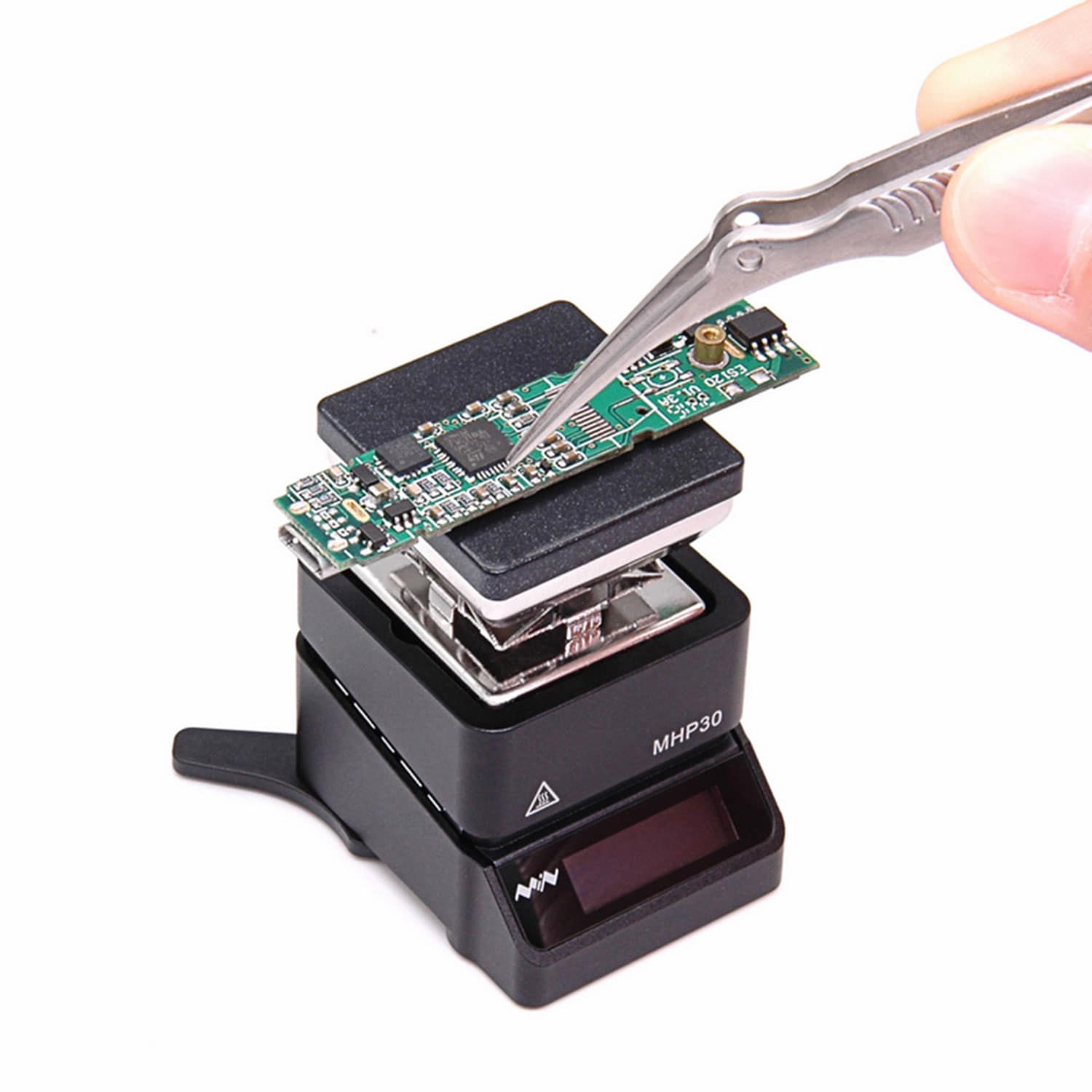

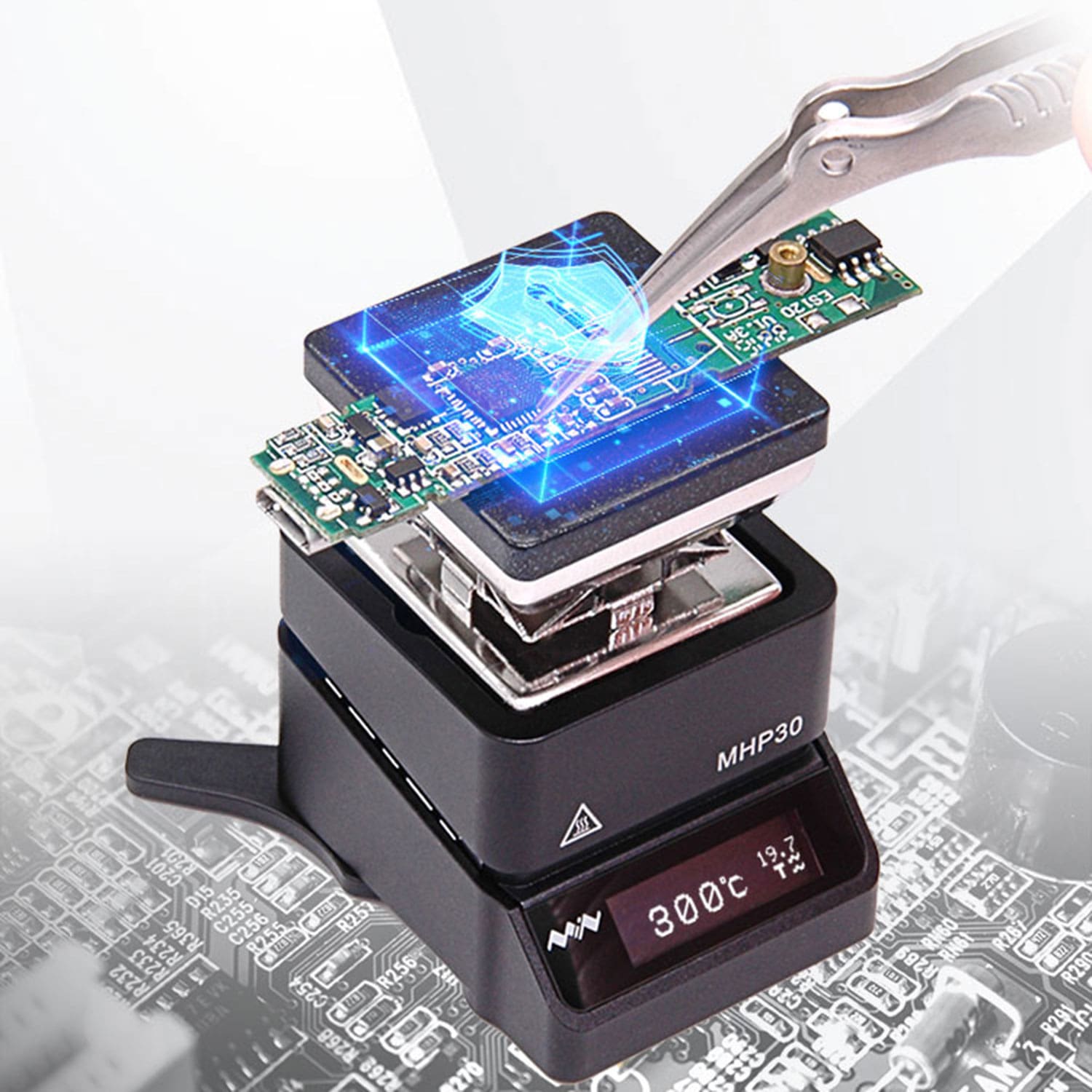

- Uses: portable, can be put into the pocket of the constant temperature heating table, preheating, is welding circuit board, components, LED beads, and so on.
Functional parameters:

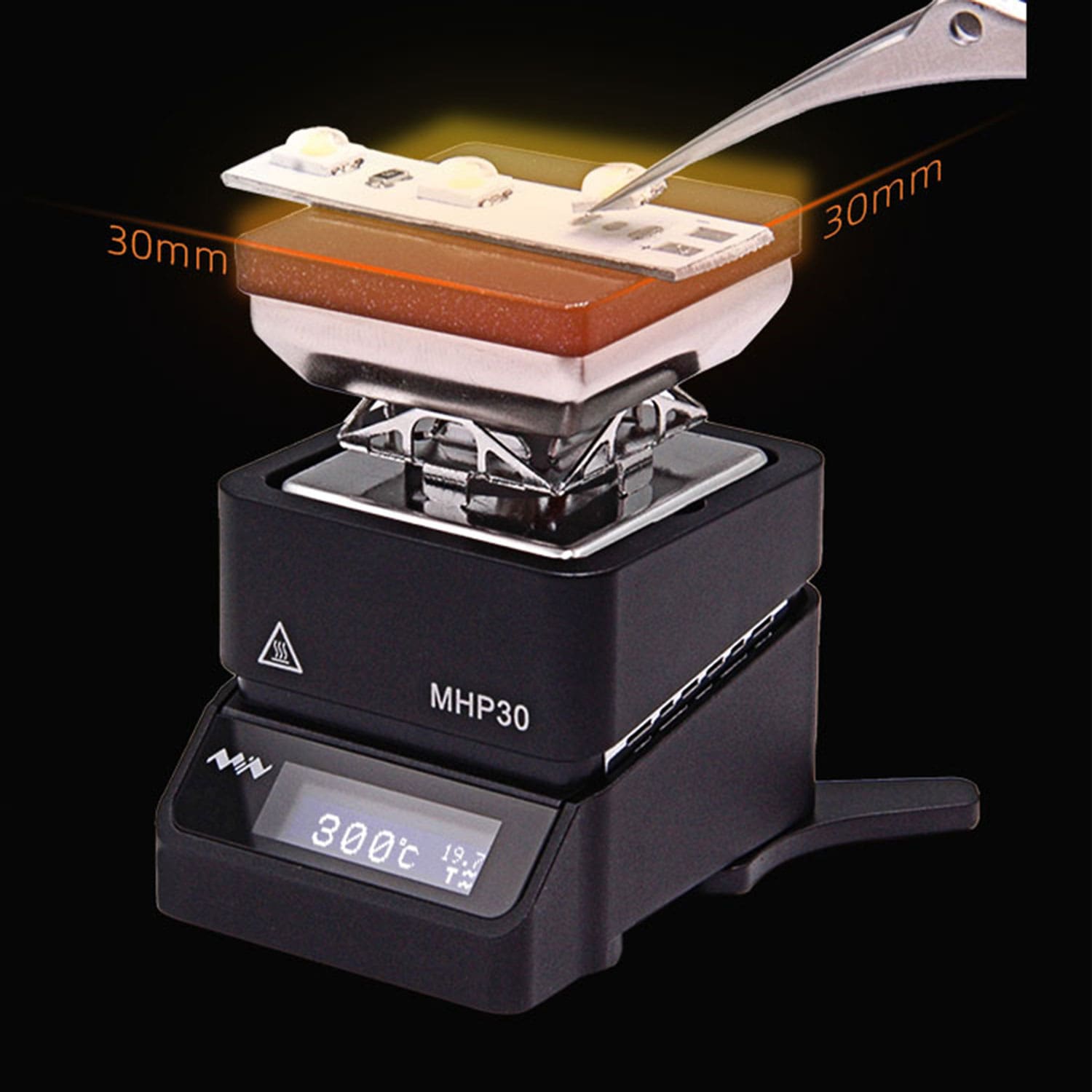

- Heating area: 30mm*30mm
- Temperature range: 100-350°C
- Temperature stability: 3%
- Resistance to earth: <2 Ω
- Power: 60W (maximum)
- Input: PD protocol
- Product size: Control end: L43mm*W35mm*H31mm
- Heating element: L31mm*W31mm*H28mm
- Weight (control end + heating element) : 82g
