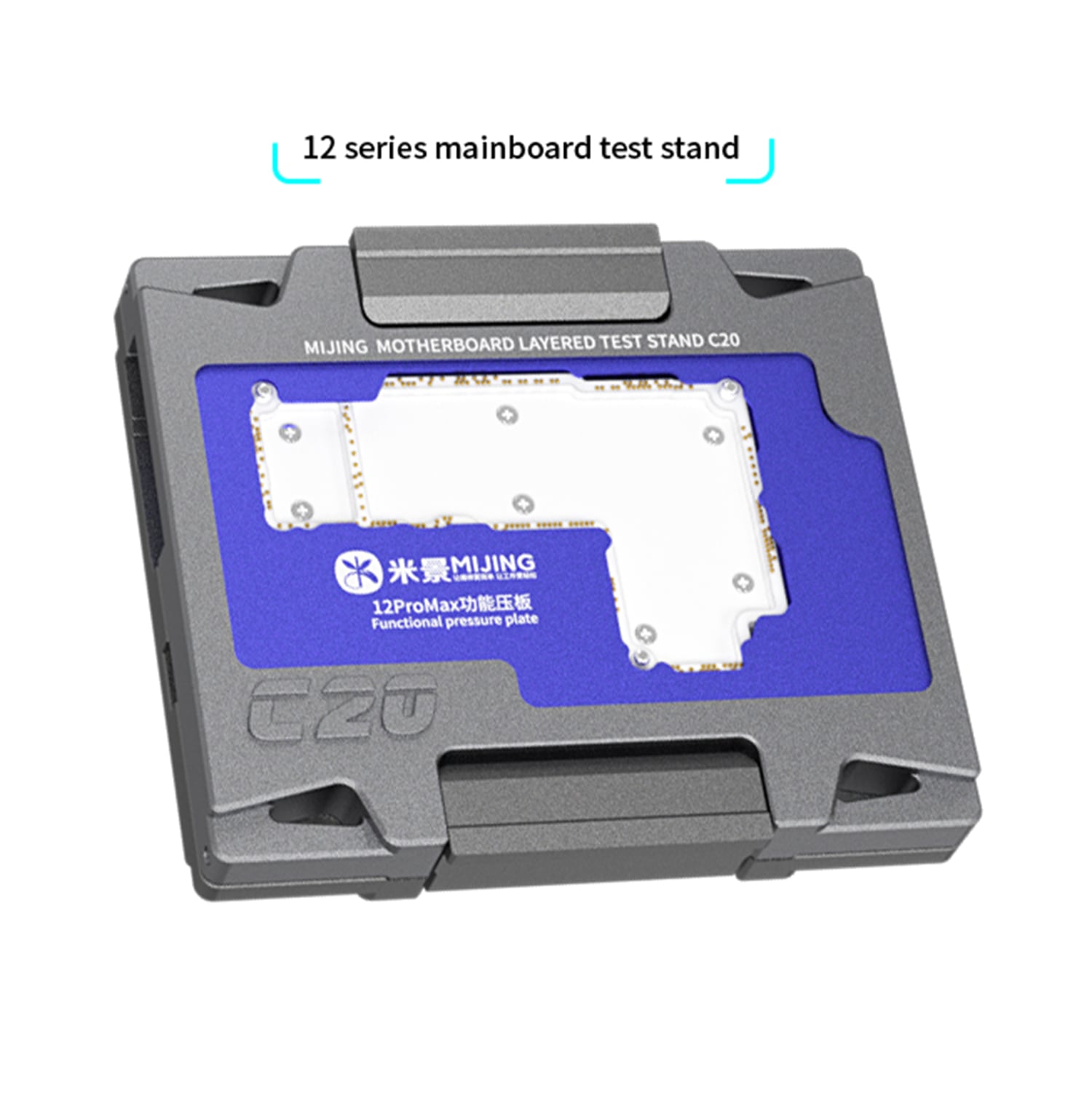

MIJING C20 FOR IPHONE 12/12MINI/12PRO/12PROMAX MAIN BOARD FUNCTION TESTING FIXTURE
Compatible:iPhone 12 Pro Max
Quantity:
Features:
- Easy to use, connect the upper and lower motherboards for testing/repair, avoid problems after installation, increase maintenance speed
- Check in advance to avoid duplicate disassembling and breaking the motherboard
- Small size, easy to carry.
Operational Process:
- 1, Prepare:
- Power On/Off Cable*1
- Power Line*1
- LCD Test Cable*1
- Screen*1 Main Board*1
- 2, Decomposition iPhone 12/12p/12promax Middle Layer simply equipped the test fixture.

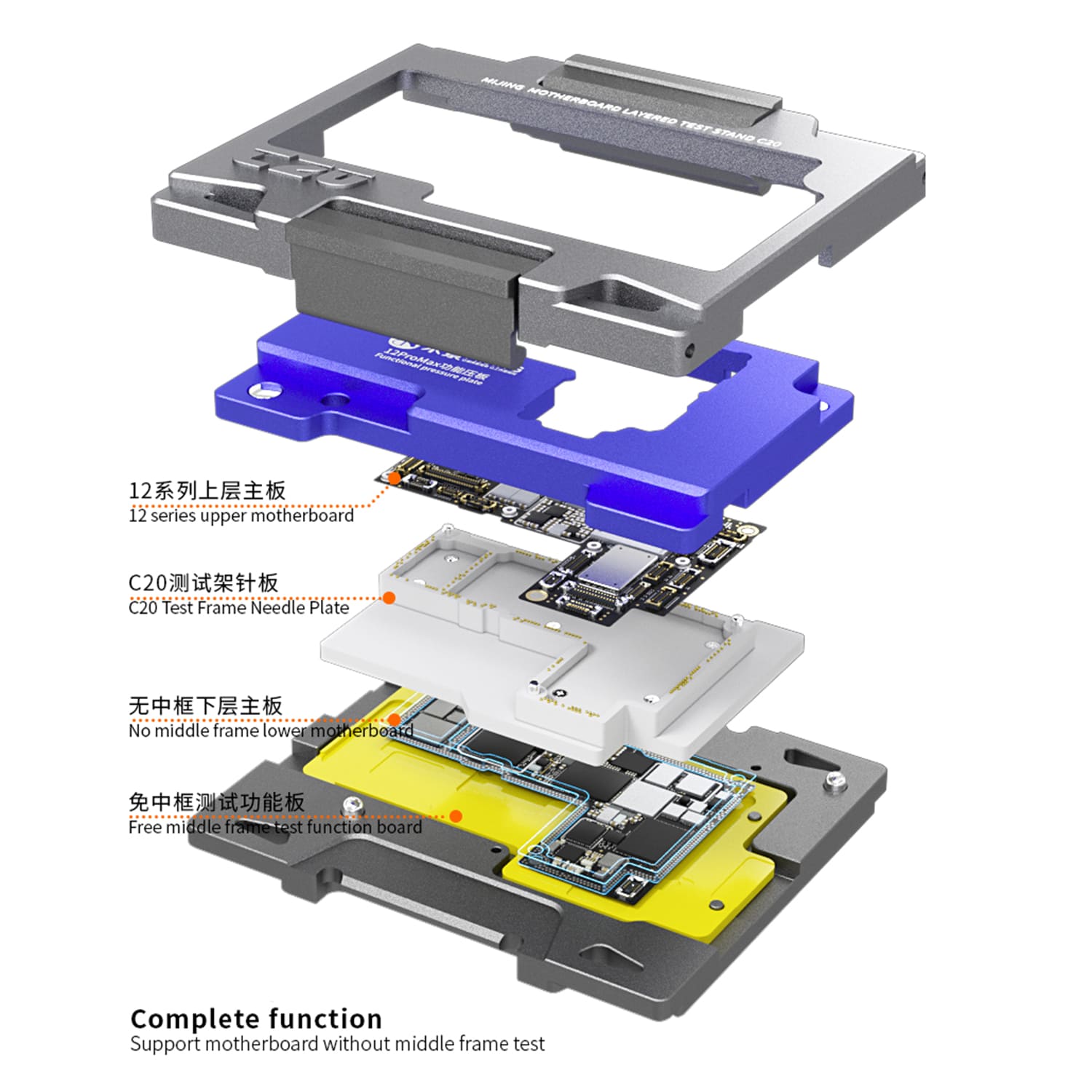

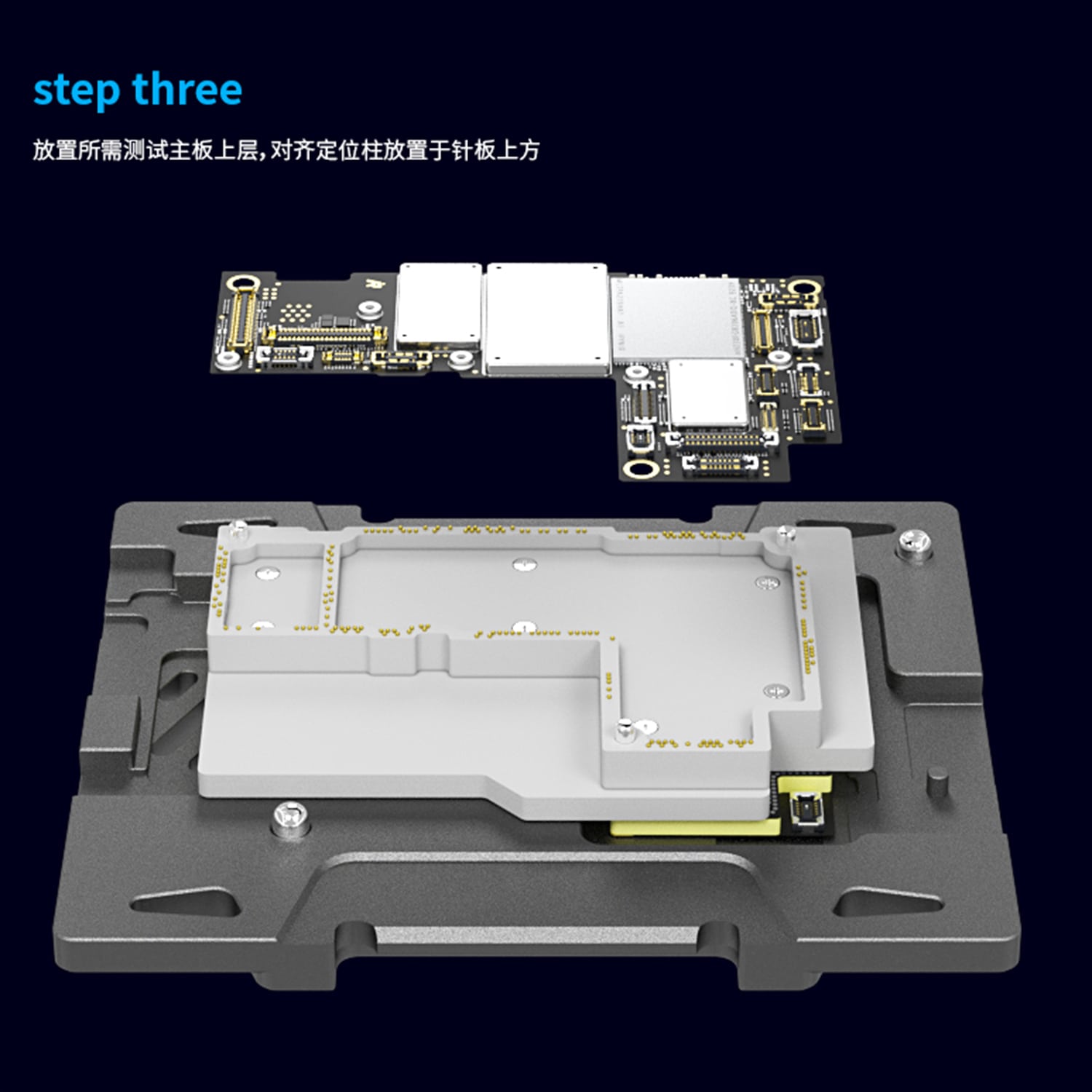

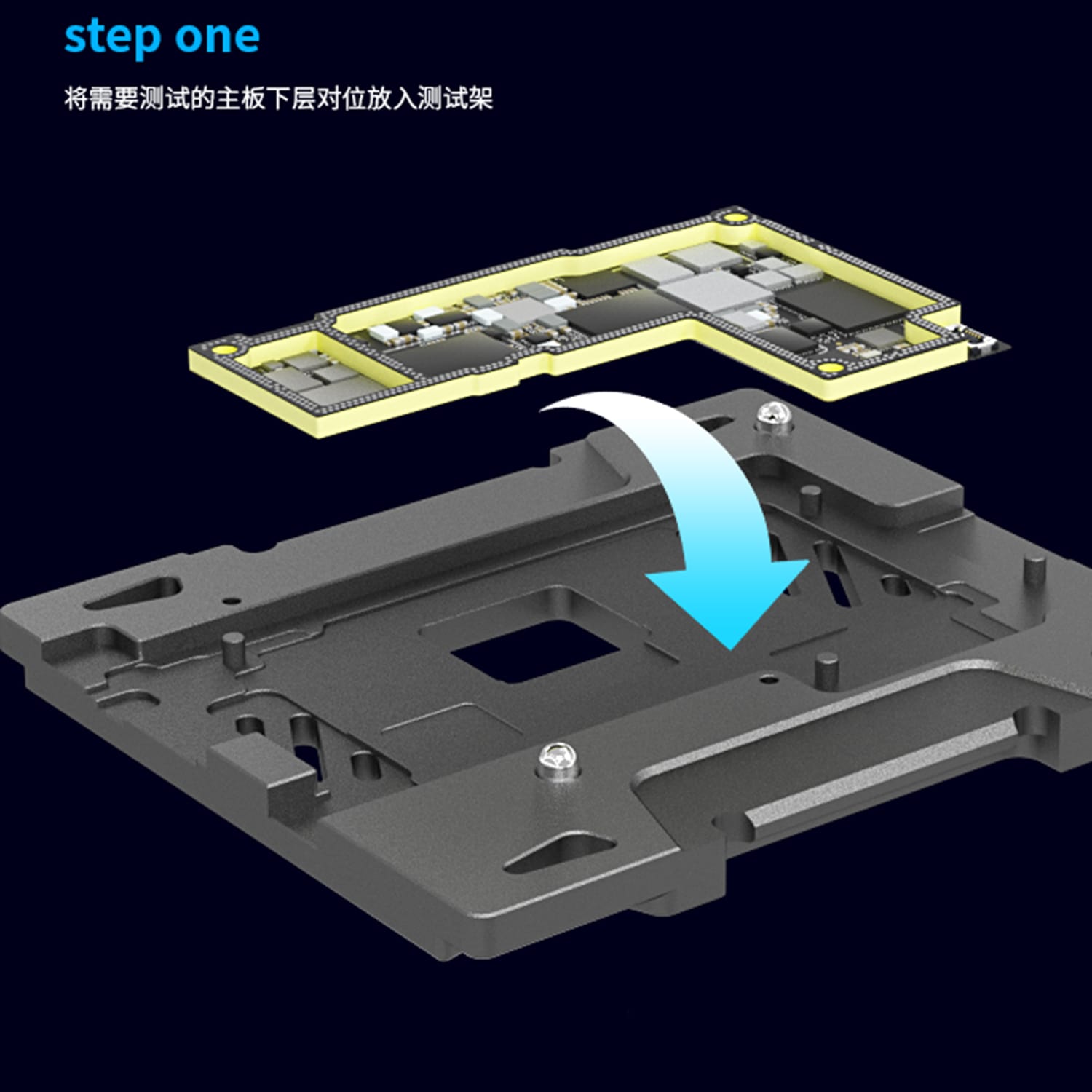

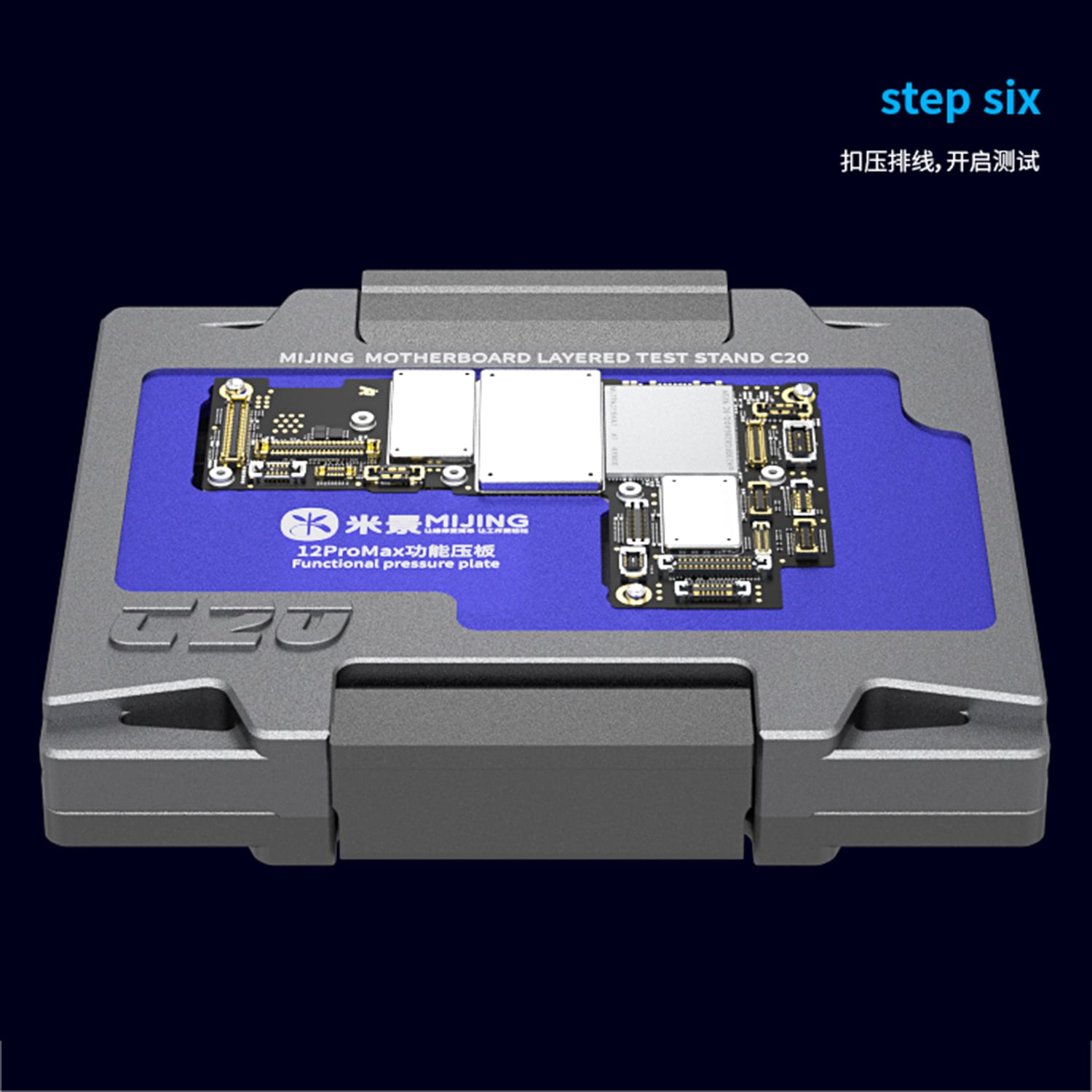

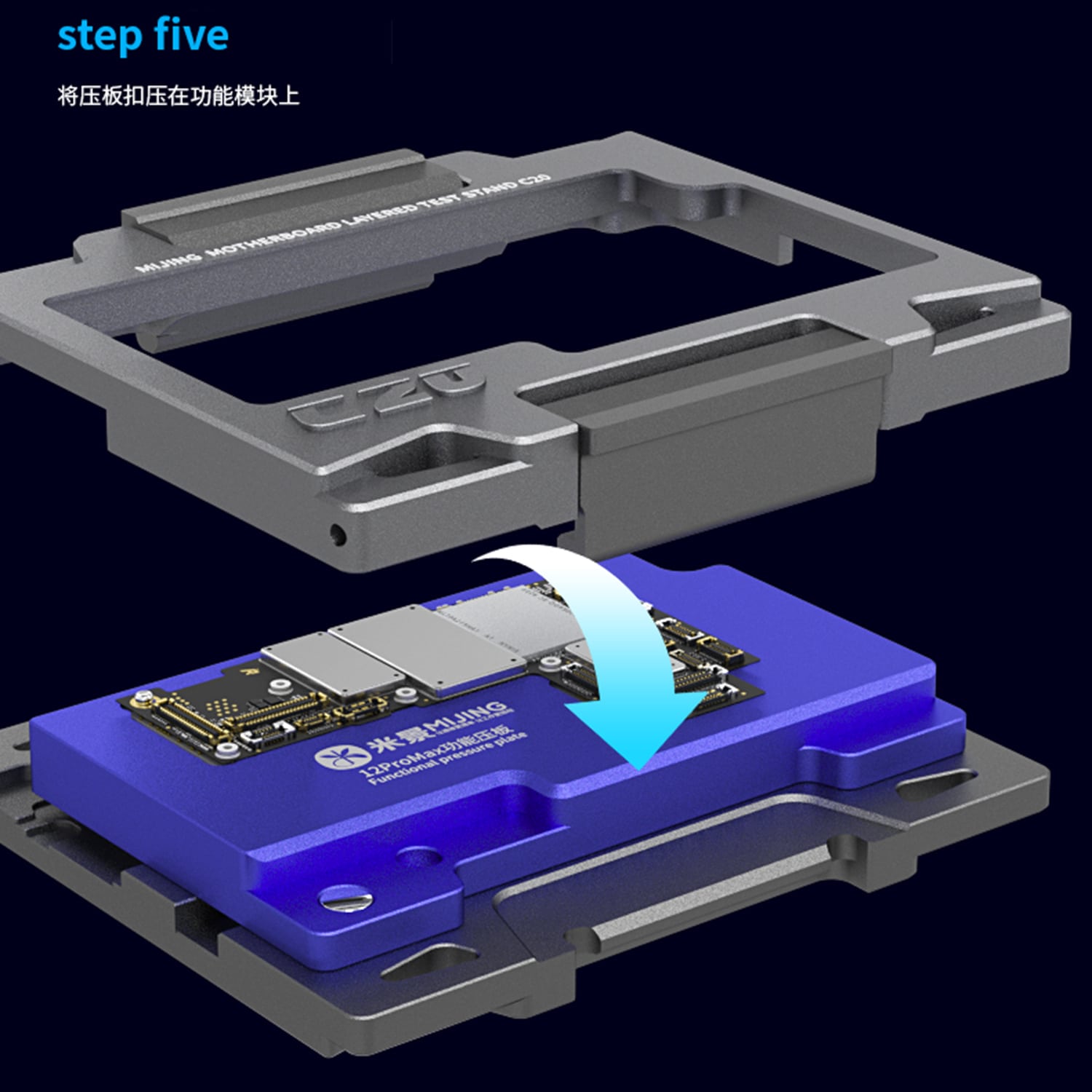

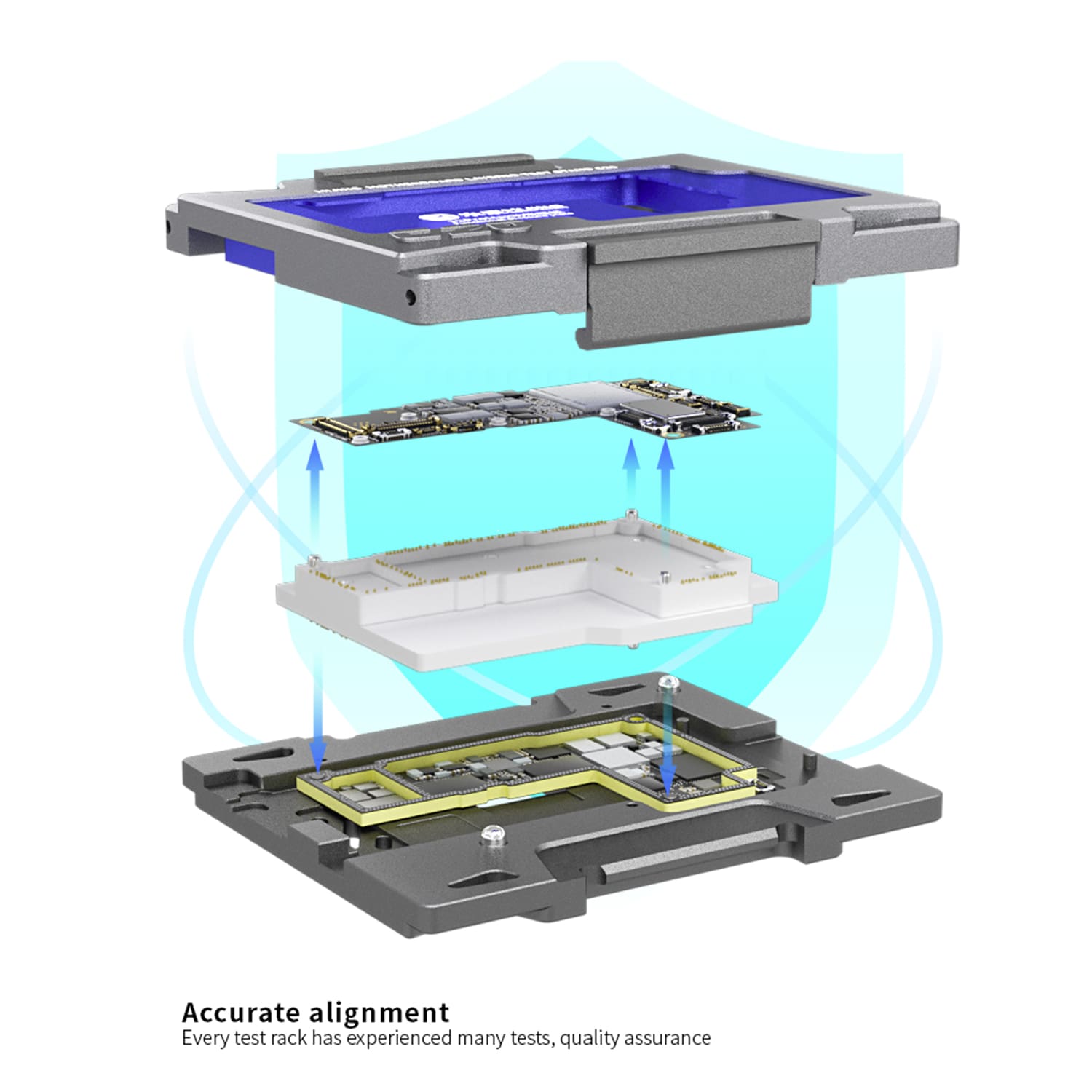

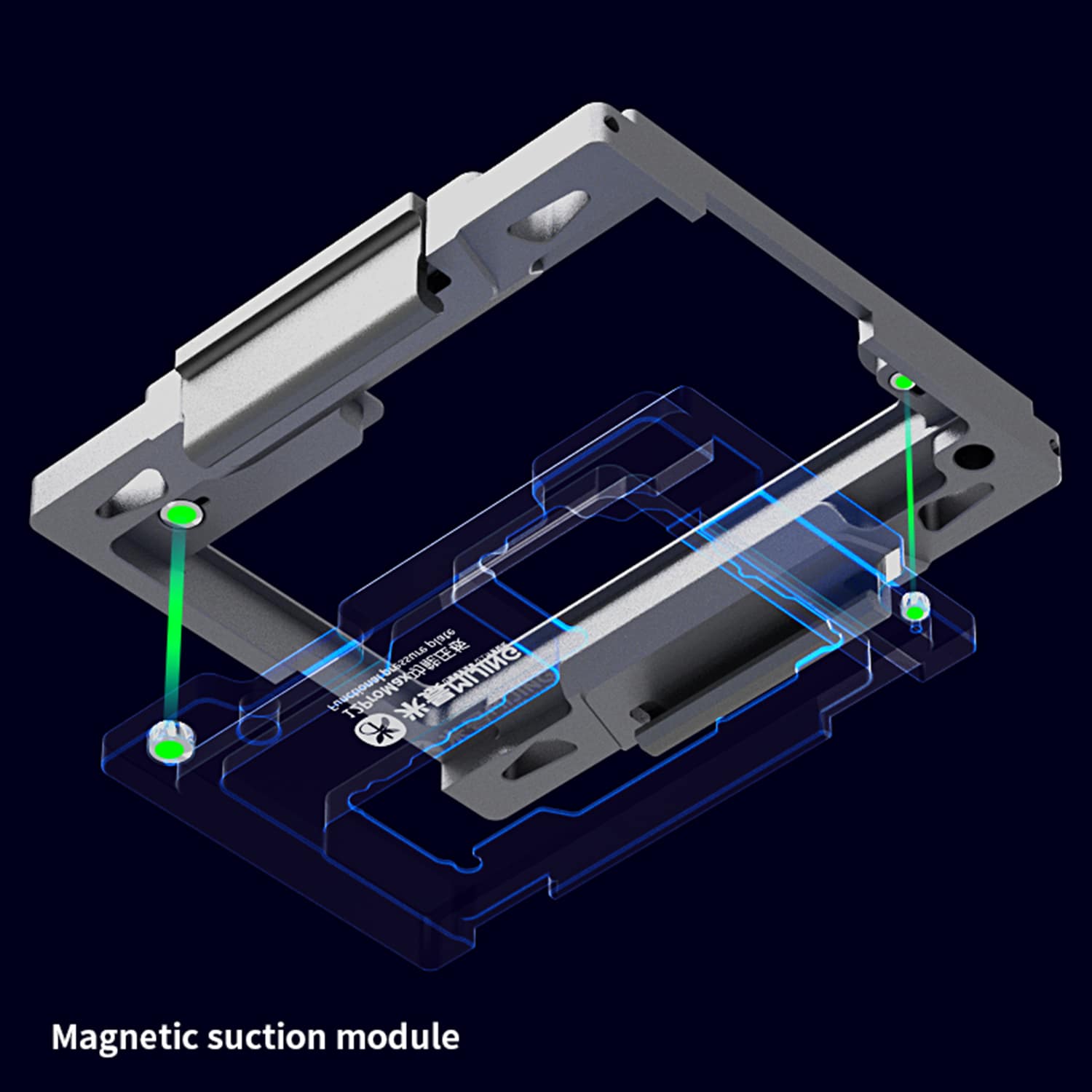

- 3, Install: Put in the lower main board, put on the pinboard, but the top board in, and then cover the test rack.
- 4, The first way to connect the screen line, boot, power cord, or battery test ink success or not.
- The second way is to connect the end plug on the base of the first method to implement the brush function.
