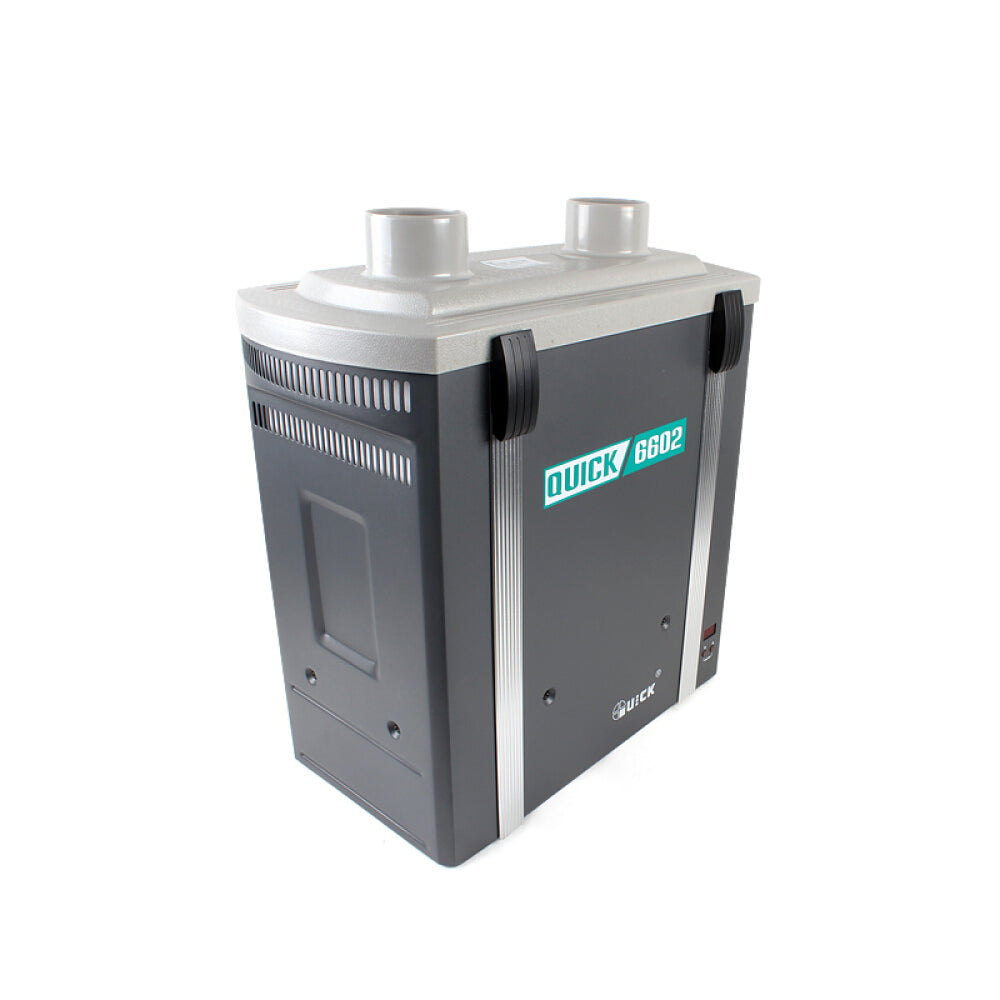

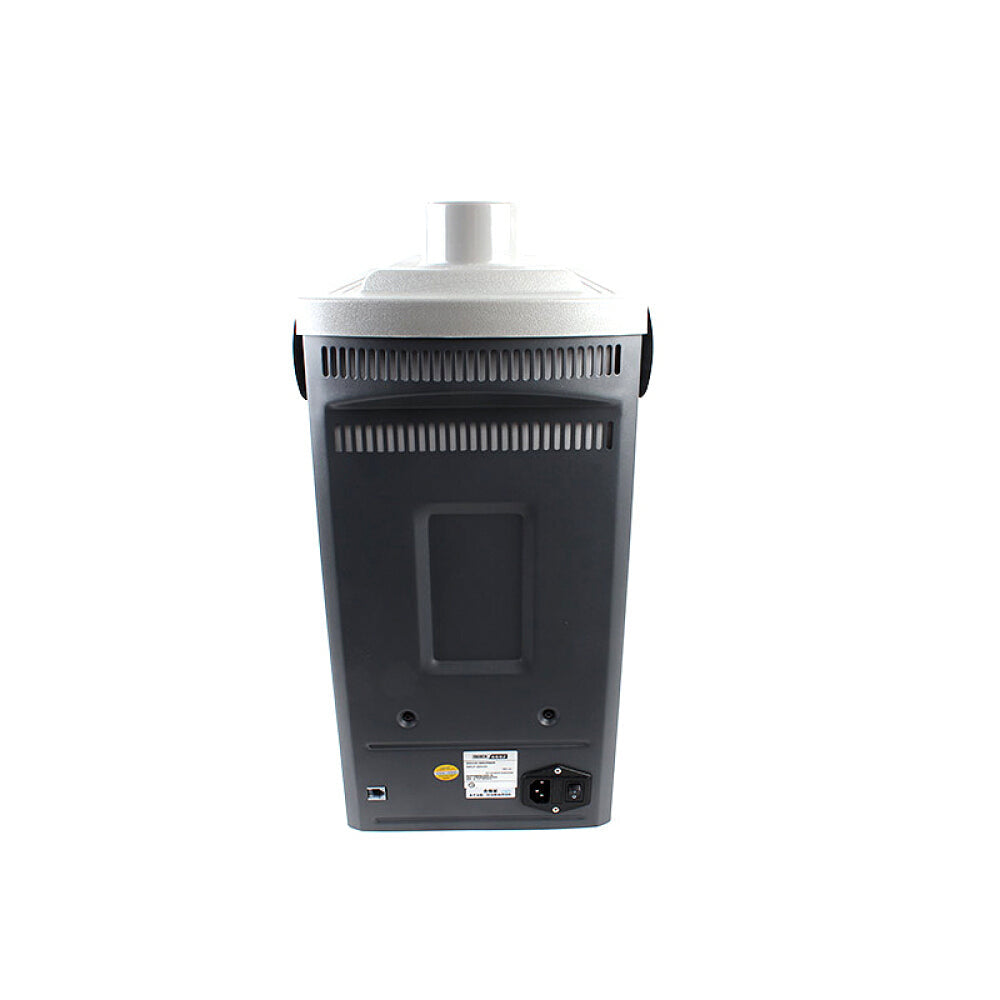

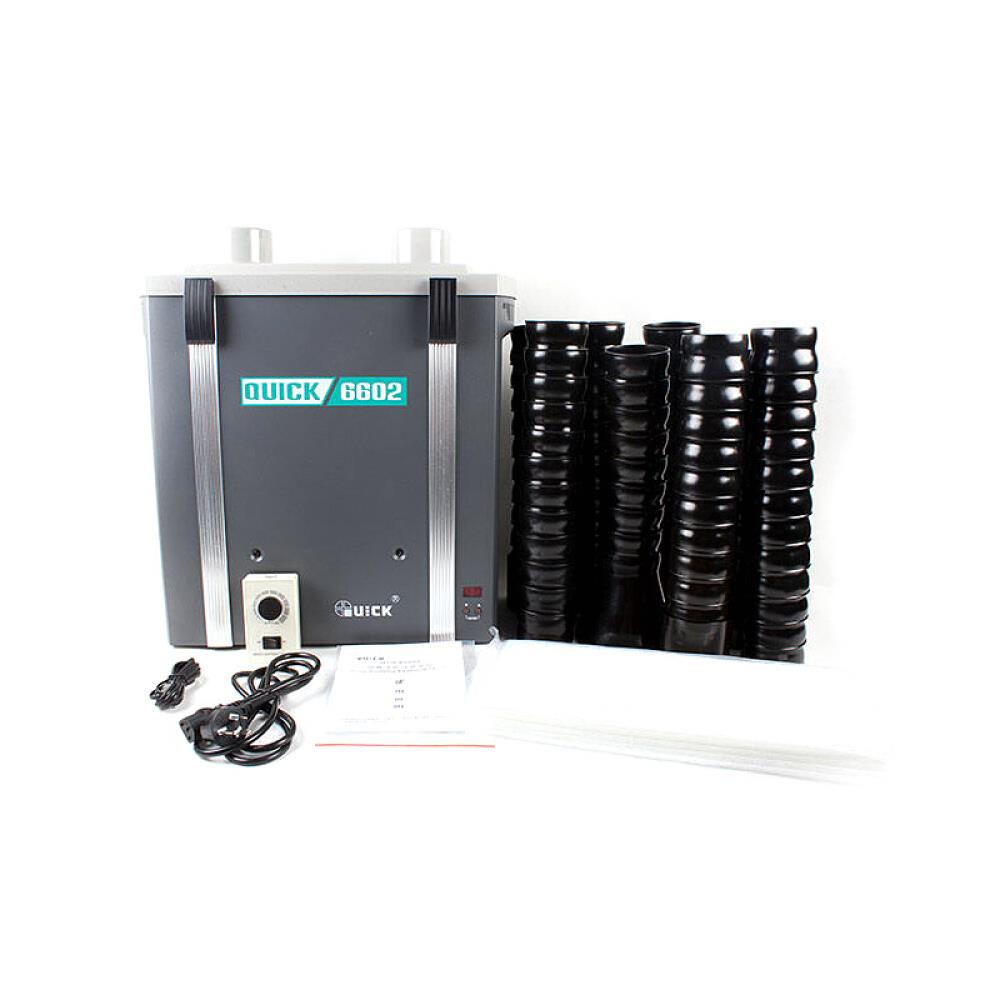

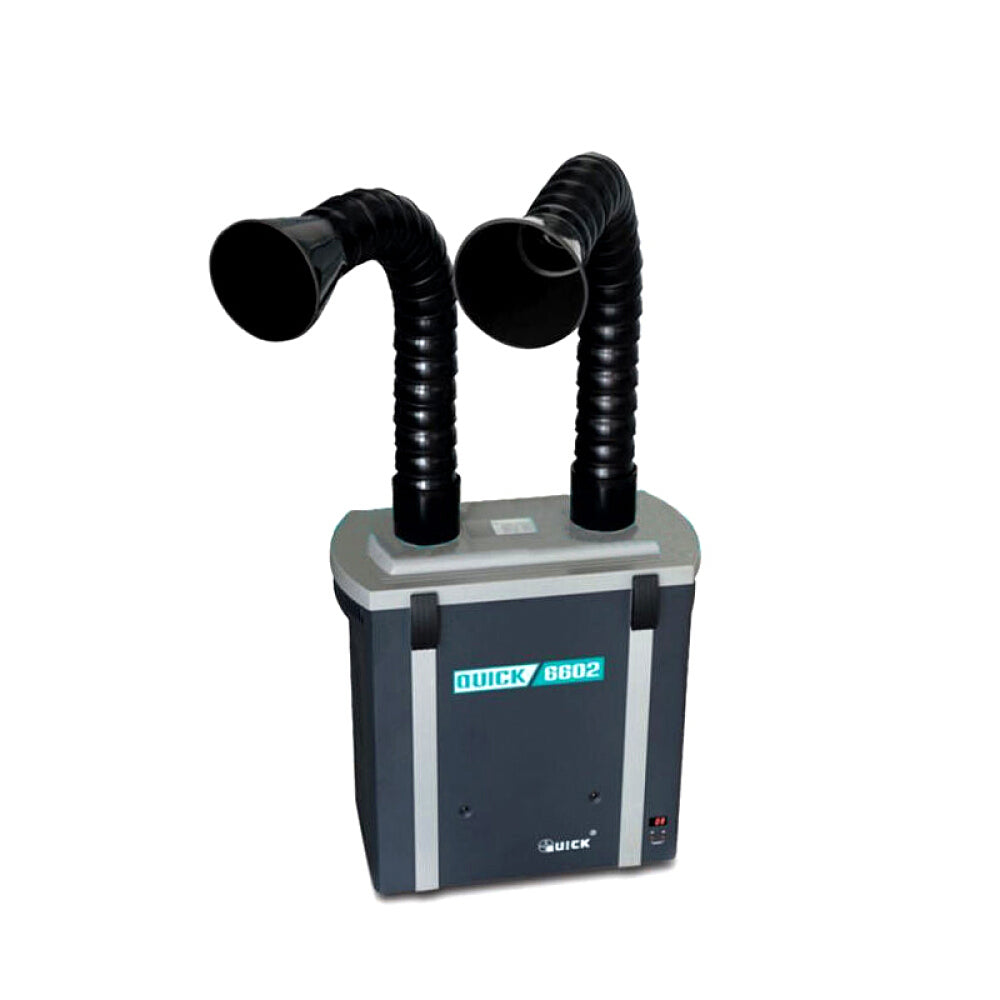

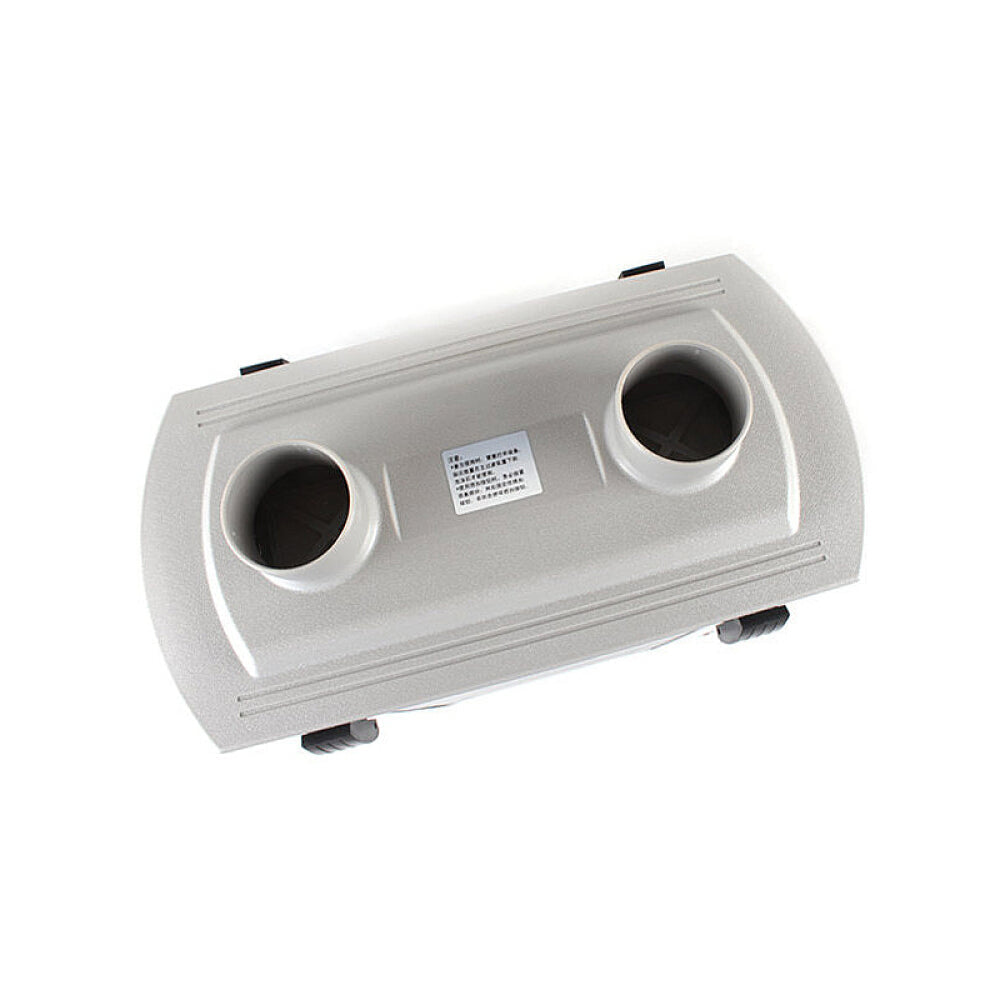

QUICK 6602 250W DULA PIPE FUME PURIFYING AIR CLEANER
Voltage:110V w/US Extra Adapter
Quantity:
Note:
- Directional duct length can be customized according to customer requirements.
Overview:
- QUICK6602 smoke purification filter system, using a double-station design and three-tier filter devices, including the primary filter, the filter efficiency and the main filter. HEPA high efficiency filter and gas filter part of the main filter. Large pad type primary filter can effectively filter larger particles of dust, to extend the life of the main filter.
- Smoke purification filter system can effectively absorb and filter the welding, laser marking, laser engraving process smoke and dust generated at the same time on the toxic and harmful gases and dust, such as hydrocarbons and cyanide play a Adsorption and filtration effect, to prevent environmental pollution.
Features:
- Installation is simple and convenient, without the need for alternative pipes, is conducive to the clean and beautiful working space.
- Triple filter design to ensure that the filter out the harmful substances in the smoke, to protect human safety. The pre-filter, medium-efficiency filter and main filter can be replaced individually, extending the life of the main filter.
- Built-in air circulation filter to avoid indoor air / heating exhaust to the outside world, the real meaning
- To save energy, at the same time meet the national environmental requirements.
- High-power DC brushless motor, air volume, long life.
- Low noise design.
- Double station design, air volume adjustable, directional duct adjustment, positioning freely.
Specifications:
- Power: 220V
- Power: 250W
- Station: 2
- Fan flow: 250 m3 / h
- System flow (including filter): 2 * 100 m3 / h
- Filtration efficiency (0.3 microns): 99.97%
- Directional duct: φ75mm * 1500mm
- Static pressure: 1800Pa
- Noise: 55dB
- Size (length / width / height): 470 * 230 * 500mm
- Packing Size(length / width / height):600 * 350 * 530mm
- Weight: 40kg
Operating instructions:
- Fix the directional air duct, connect the power supply, turn on the power switch on the power socket of the machine, and adjust the direction of the directional air duct according to different situations to start the work of the smoke purification system.
- boot, LED digital display filter set the upper limit of workload, flashing three times after the current workload. The figures for workload indicate "8-hour working day", ie "1" means 1 working day for 8 hours, "20" means 20 working days for 8 hours and about 160 hours for working. The range of work load is "0 ~ 999". After replacing the new main filter, please clear the work load. The upper and lower workload of the factory setting is 300.
- The external air volume adjustment keyboard plug into the host interface, rotate the air volume control switch on the keyboard, select the appropriate air volume. When the air flow, the machine's smoking ability, it is recommended to work in a larger air volume.
- When the air volume adjustment switch is off, the LED window will show "OFF" and the machine will stop smoking.
