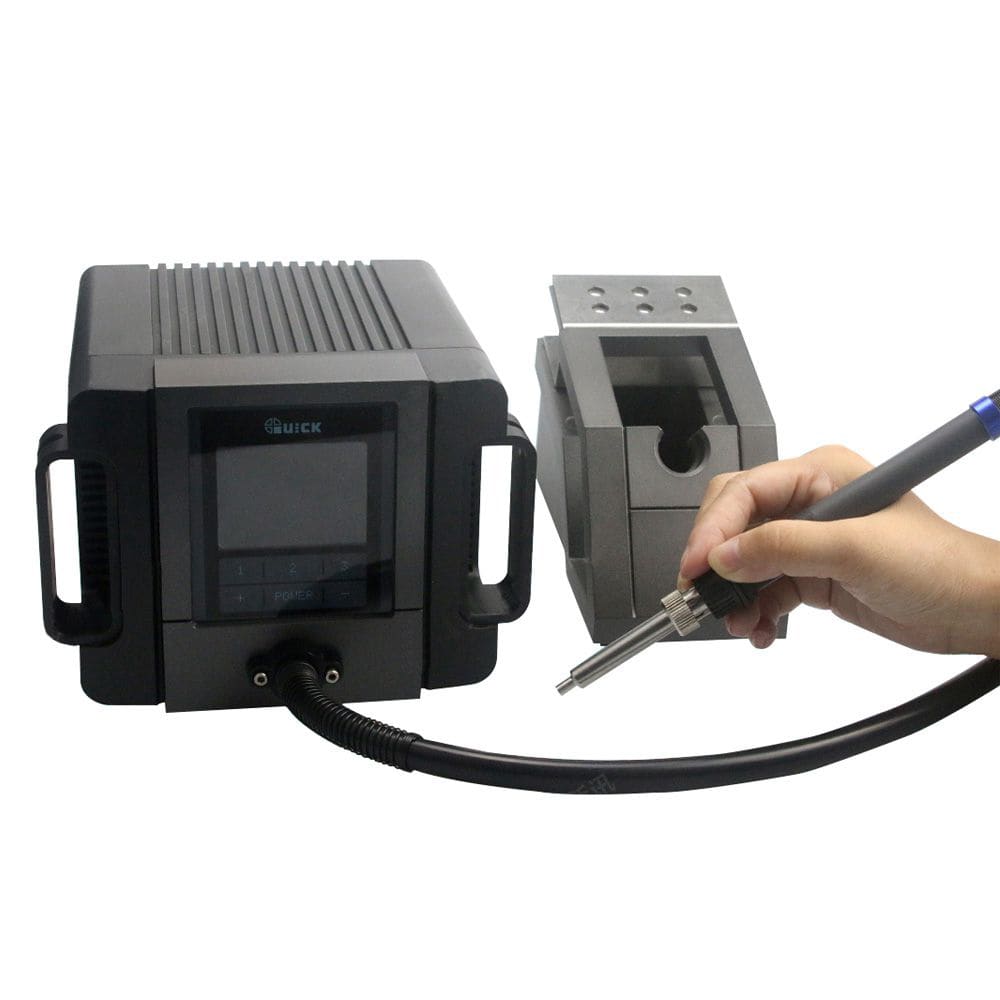

QUICK TR1100 180W ESD HOT AIR SOLDERING STATION
Voltage:110V w/US Extra Adapter
Quantity:
Overview:
- Quick TR1100 ESD soldering station HOT AIR 180W, 7l / min is a professional micro soldering hot air station with hot air 230VAC / 180W and possibility to set own profiles. The station has a precise setting of operating temperature and airflow. Electronic temperature control system in the range 100 ÷ 450 ° C with closed loop temperature sensor. High power, short warm-up time and automatic cooling system to protect the heating element and digital display with illuminated background are the main advantages of this station.
Features:
- Programming Profiles (Programming temperature, air flow, operating time and other parameters)
- Multipoint digital temperature calibration.
- Three programmable operating modes.
- Over temperature alarm.
- Two-stage brushless motor for HOT AIR pumps.
- Modern design for quiet operation, noise level not exceeding 55dB.
- High-grade ceramic heating element.
- Low weight for convenient use.
- ESD design.
Specifications:

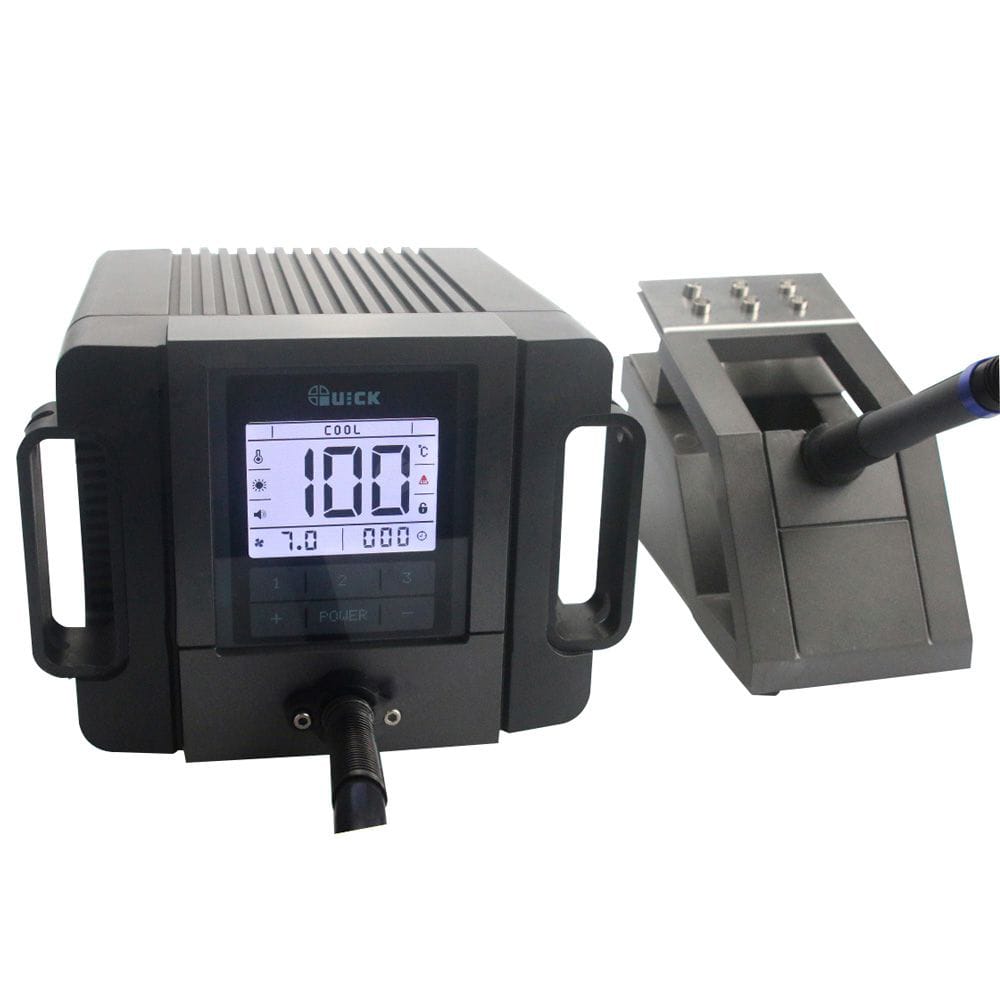

- Display: LCD
- Maximum power: 180W
- Input voltage: 110V / 230V AC
- Temperature range: 100 ° C ~ 450 ° C
- Temperature stabilization: ± 2 ° C
- Airflow: 1.5 ~ 7m3 / h
- Dimensions (WxDxH): 190 × 190 × 134 [mm]
