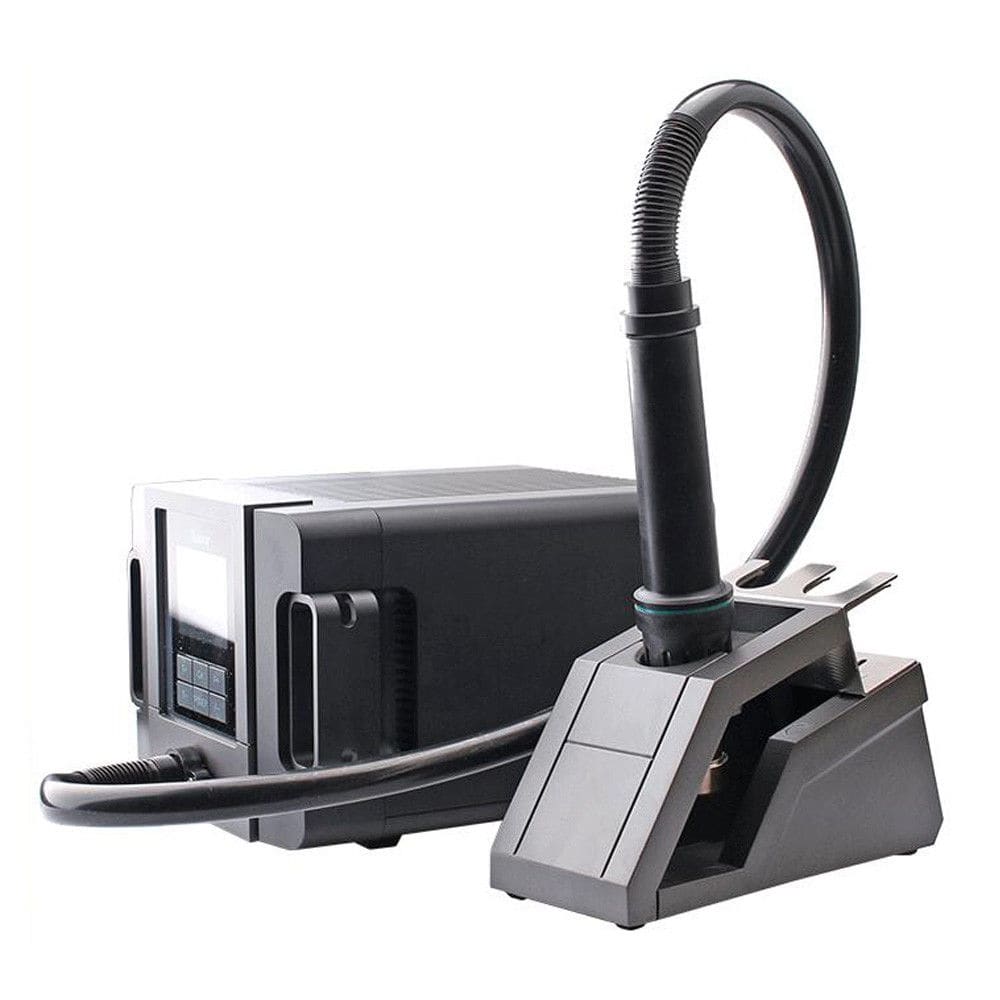

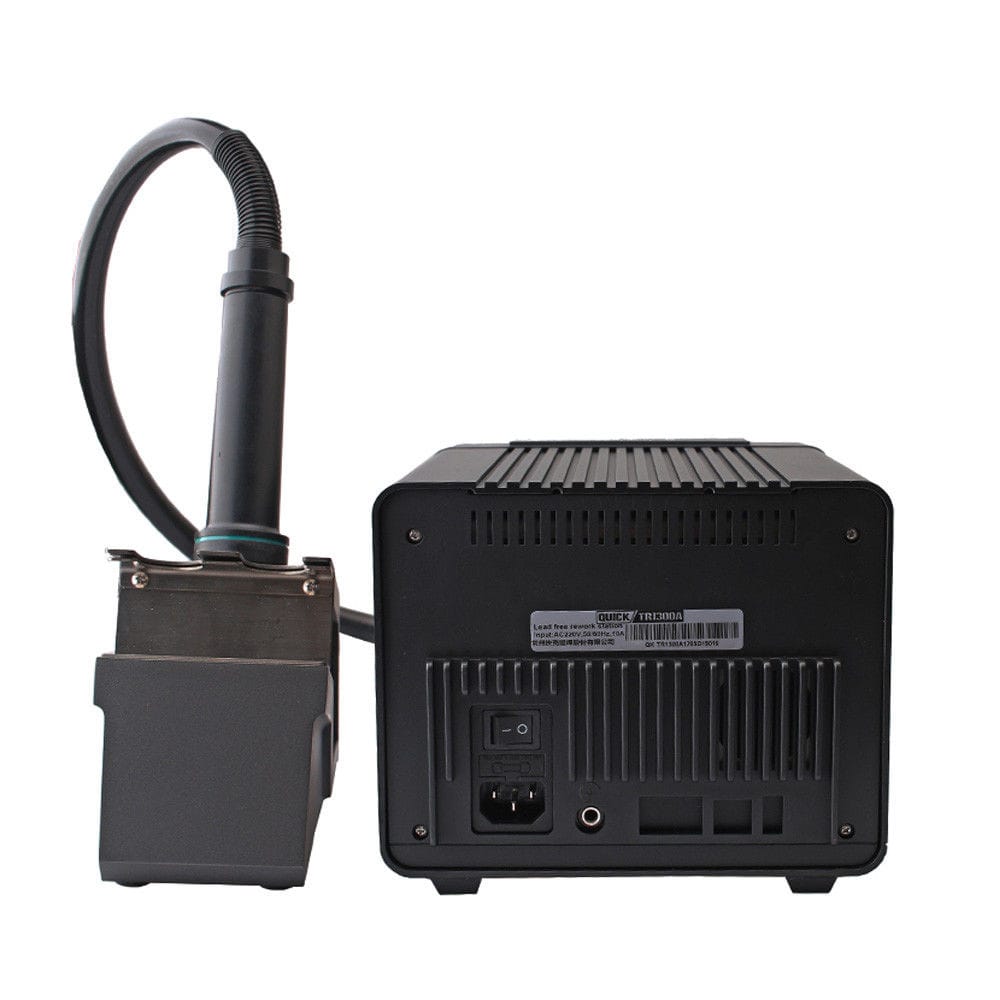

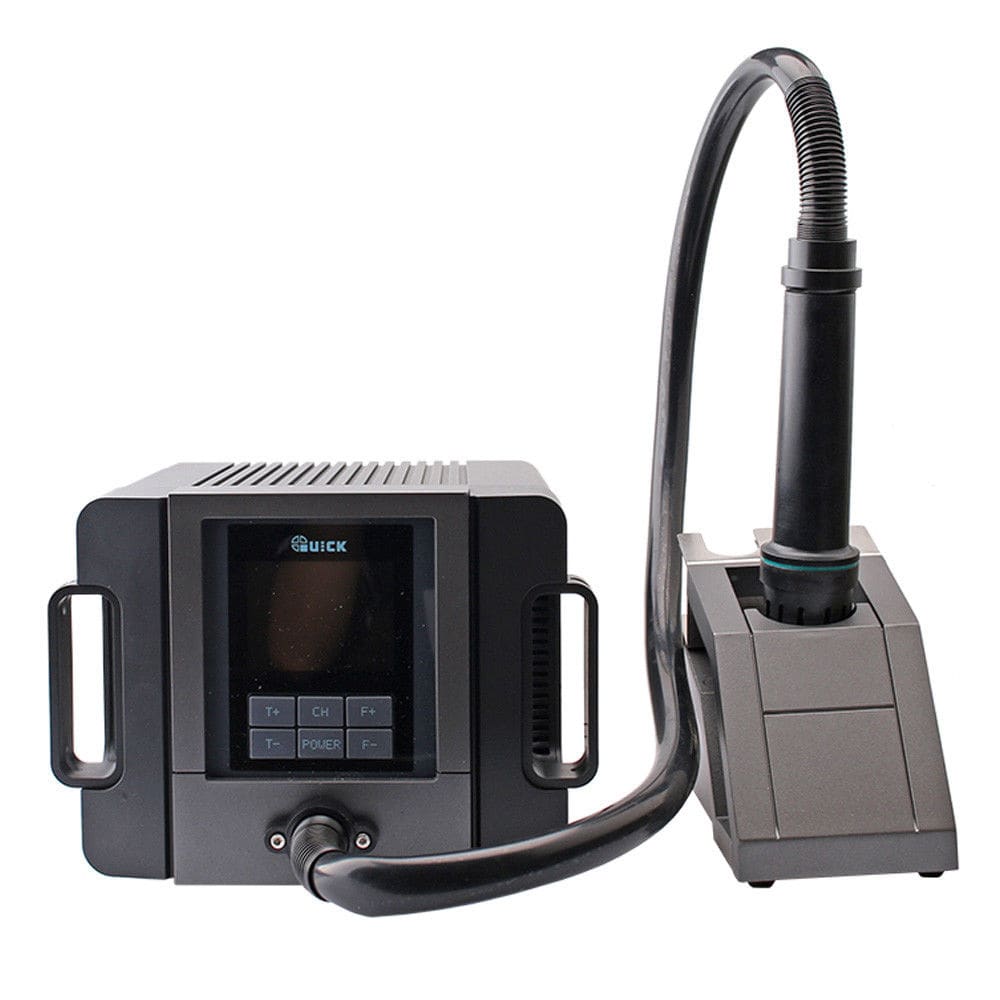

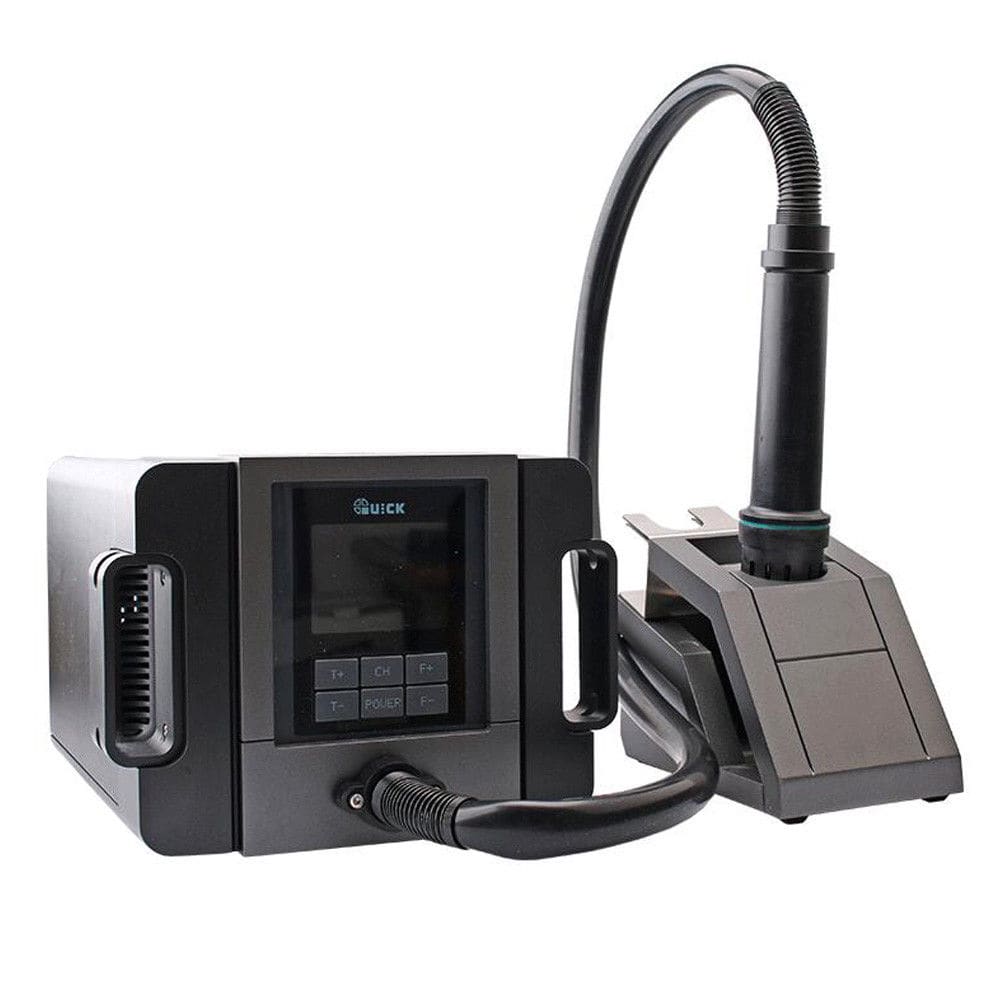

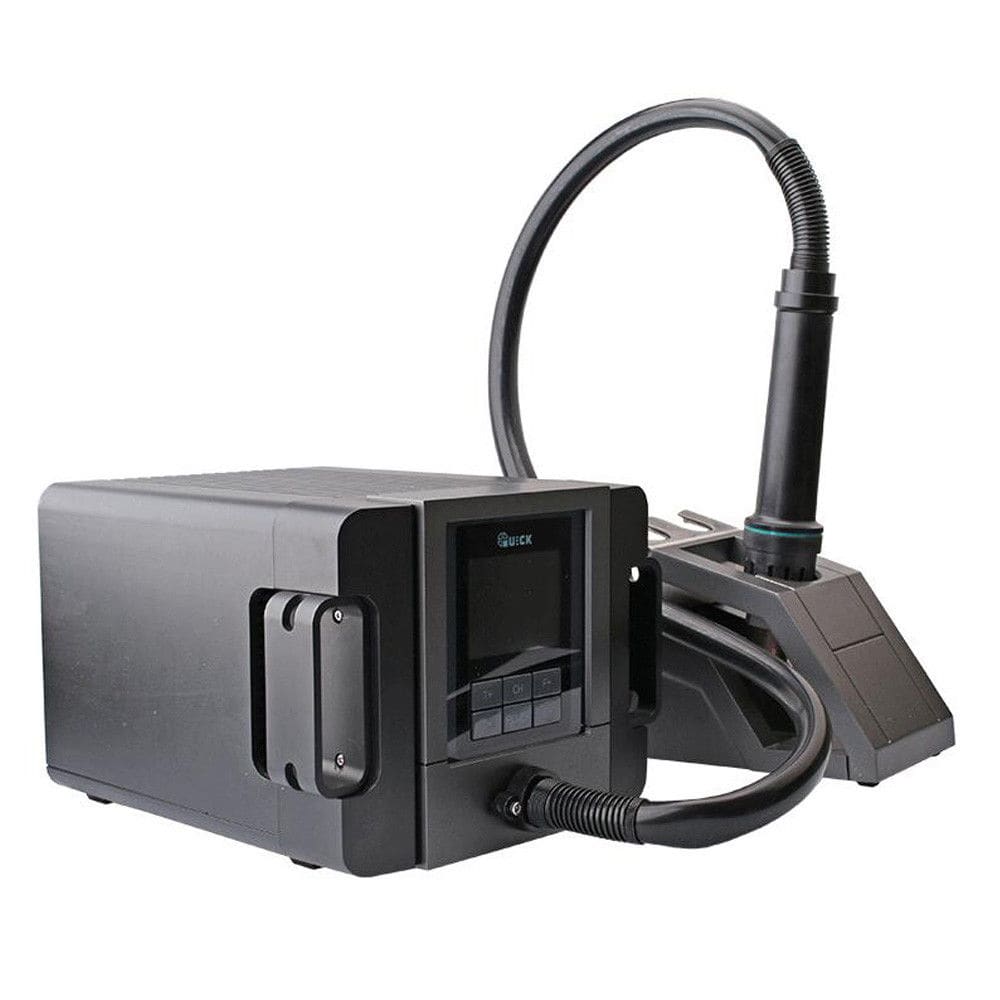

QUICK TR1300A 1300W INTELLIGENT HOT AIR SOLDERING STATION
Voltage:110V w/US Extra Adapter
Quantity:
Features:
- 1.Multipoint temperature digital calibration,Password lock function.
- 2.Can preset technological parameter of three gallery, more practical.
- 3.Temperature alarm function, temperature changer.
- 4.Adopt two-stage supercharging brushless pump, air pressure stability, long life.
- 5.Set the parameters such as temperature, air velocity and time.
- 6.Ceramic heating element, plug type design.
- 1.It is suitable to the de-soldering of the SMD components, such as SOIC, CHIP, QFP, PLCC, BGA and so on.
- 2.It is suitable to hot shrink, drying, remove lacquer and mucosity, thaw, preheating, disinfect and so on.
- 3.It is suitable to the situation with different grade airflow.
- 4.It is suitable to the hot air lead free de-soldering.
Specifications:
Type |
TR1300A |
Temperature displaying type |
TFT |
Power consumption |
1300W |
Working voltage |
220VAC/110VAC |
Tempera! are Range |
10℃~500℃;/212F-932F |
Airflow setting range |
6~70L/7min |
Dimension (WxDxH) |
215x230x155 (mm) |
Package including:
- 1 Package: 2 pcs/ctn
- 2 Outer carton Size: 385*335*225 mm
Accessories list:
- Main unit 1pcs
- Power cord 1pcs
- Handle 1pcs
- Handle holder 1pcs
- Ground wire 1pcs
- Allen wrench 1pcs
- The hot pad 1pcs
- Nozzle NK1130 1pcs / NK2064 1pcs / NK20841pcs
