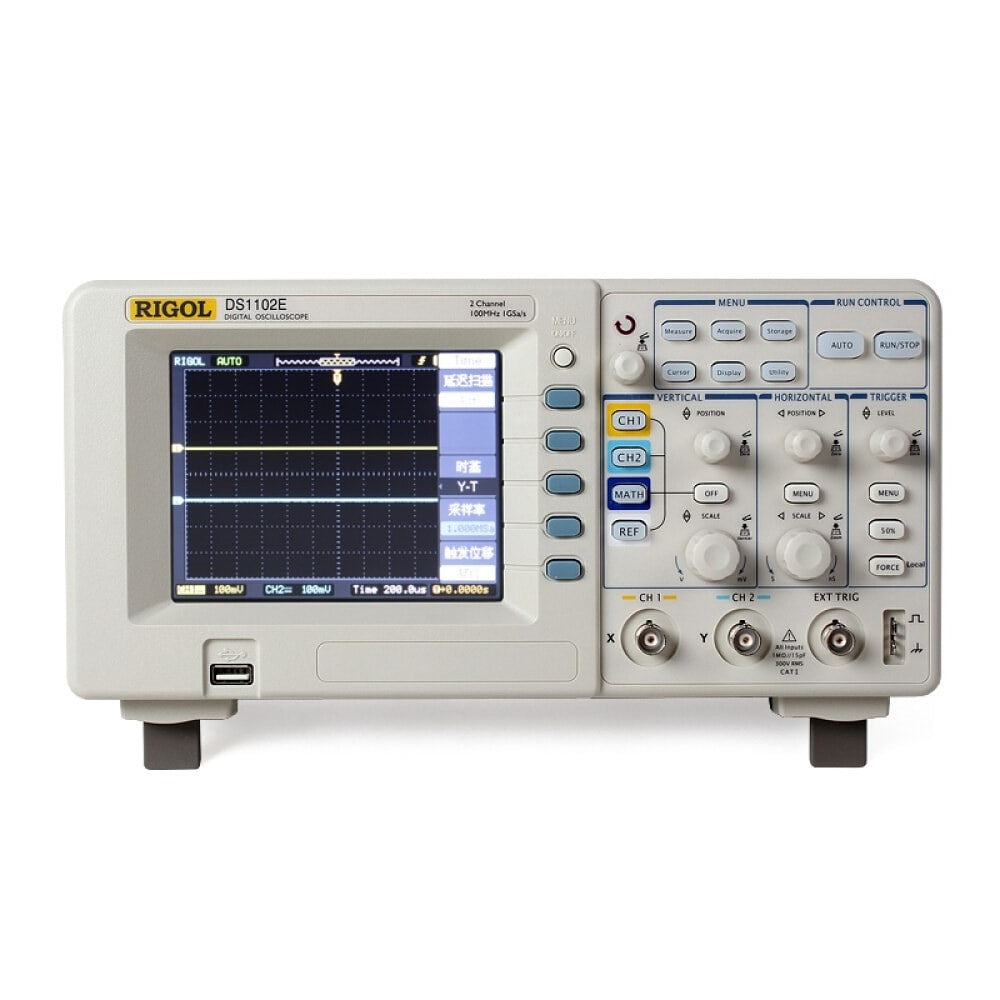

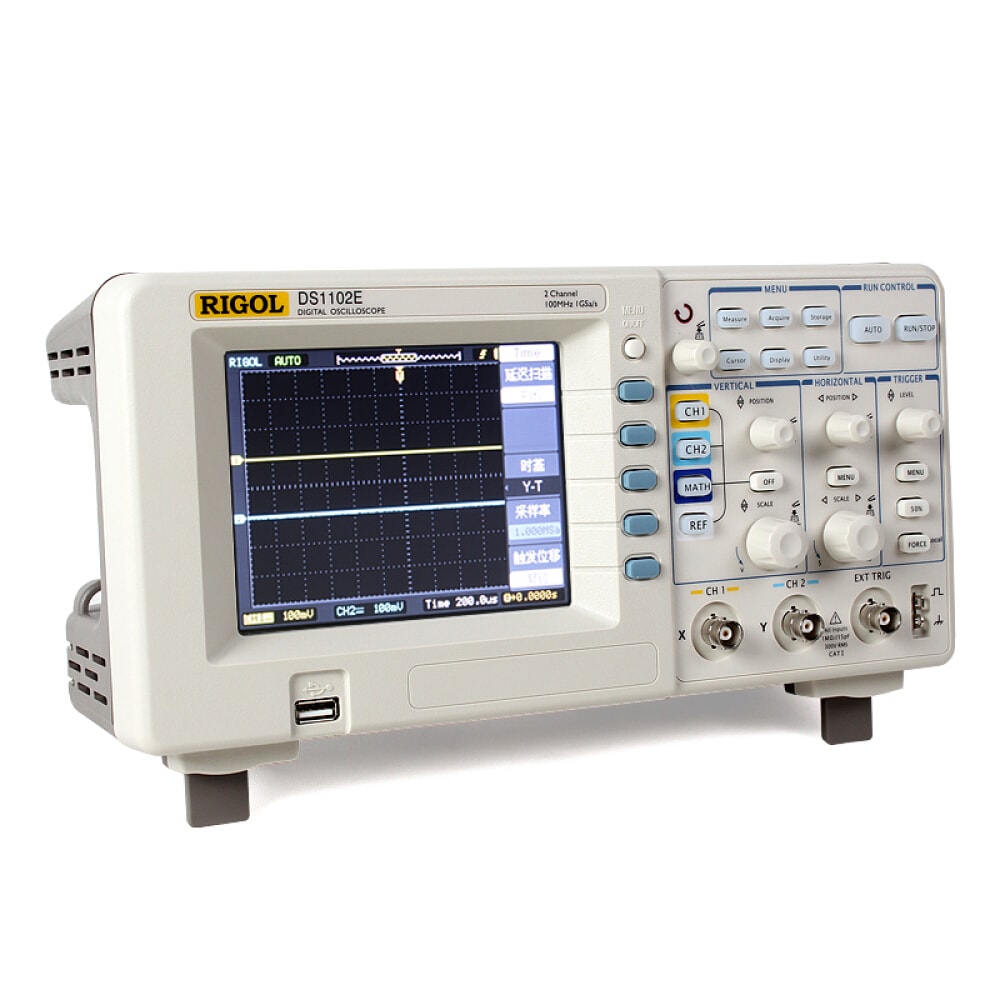

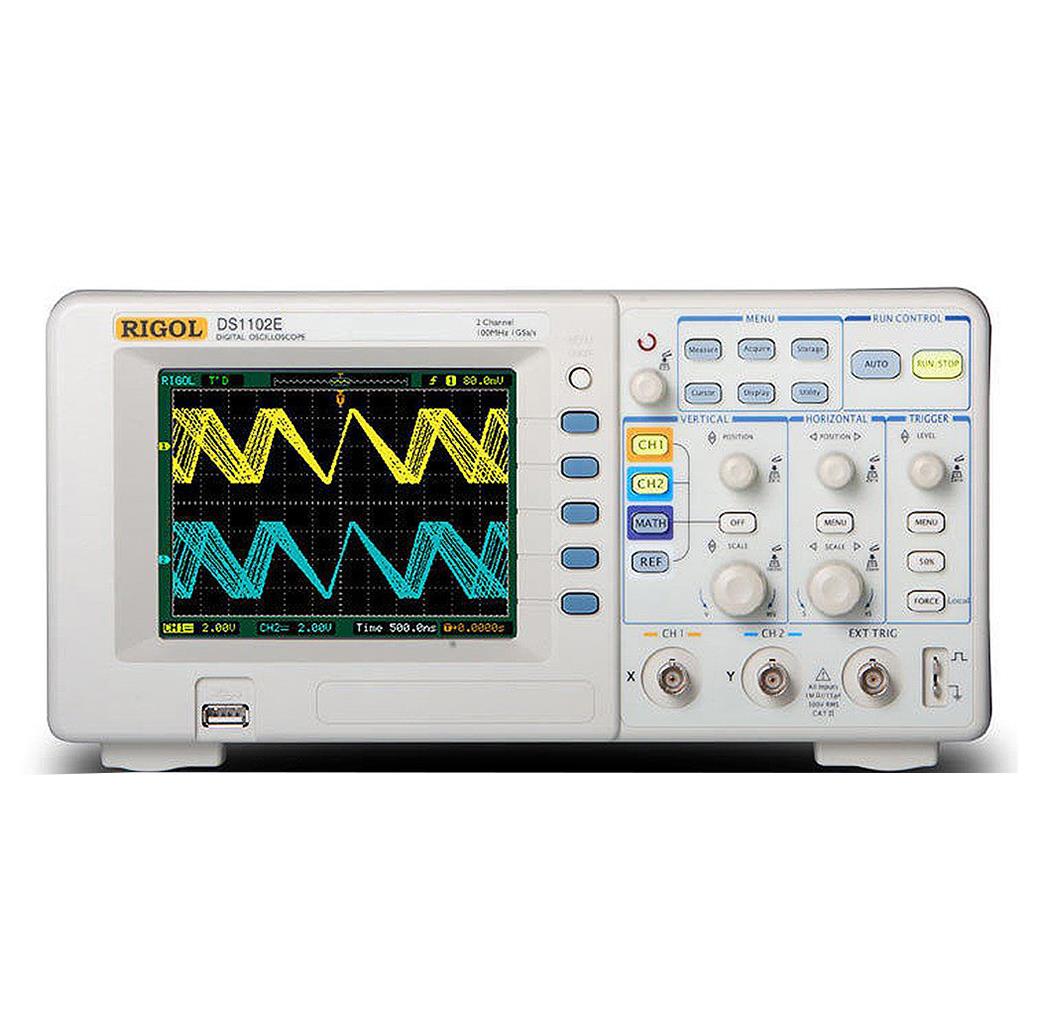

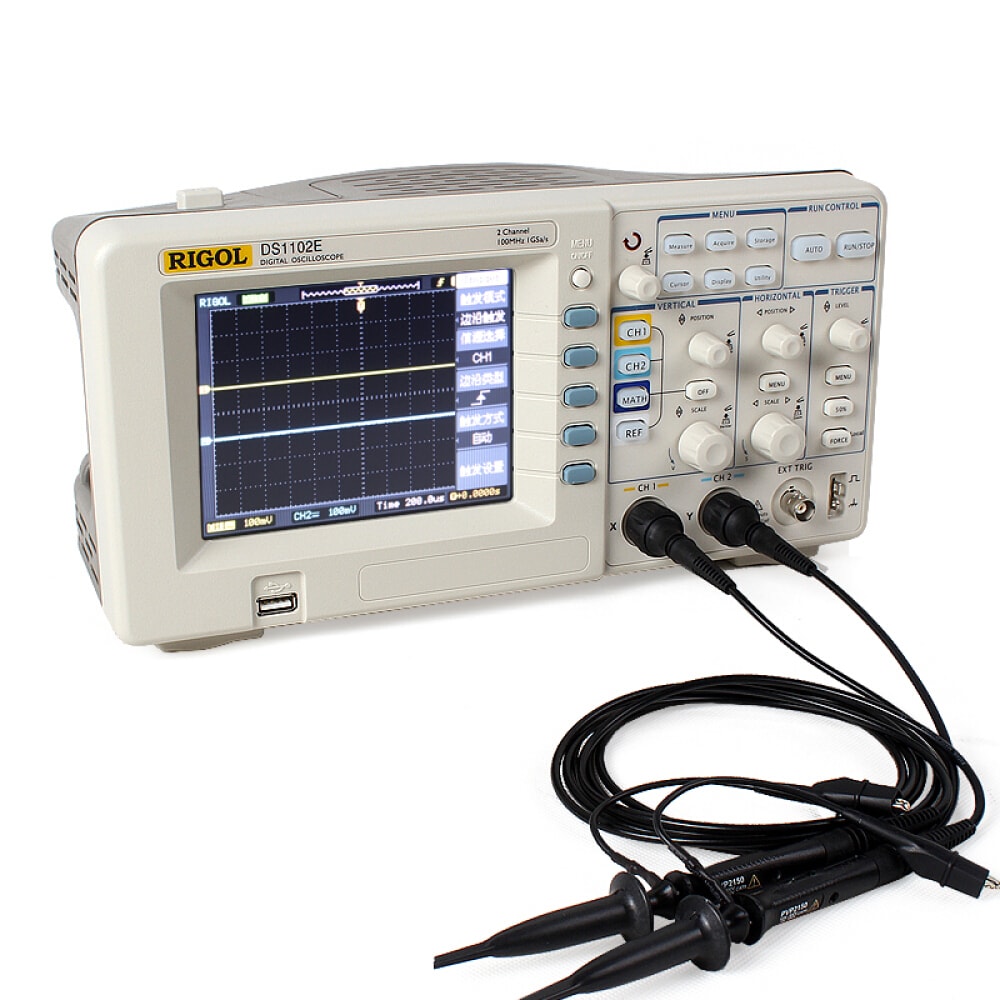

RIGOL DS1102E 2 CHANNELS 100MHZ DIGITAL STORAGE OSCILLOSCOPES
Voltage:100V~240V w/ US Extra Adapter
Quantity:
Description:
- The Rigol DS1102E is a high quality two channel digital storage oscilloscope. It offers a real-time sample rate of up to 1 GSa/s and a bandwidth of up to 100 MHz. (100V-240V)

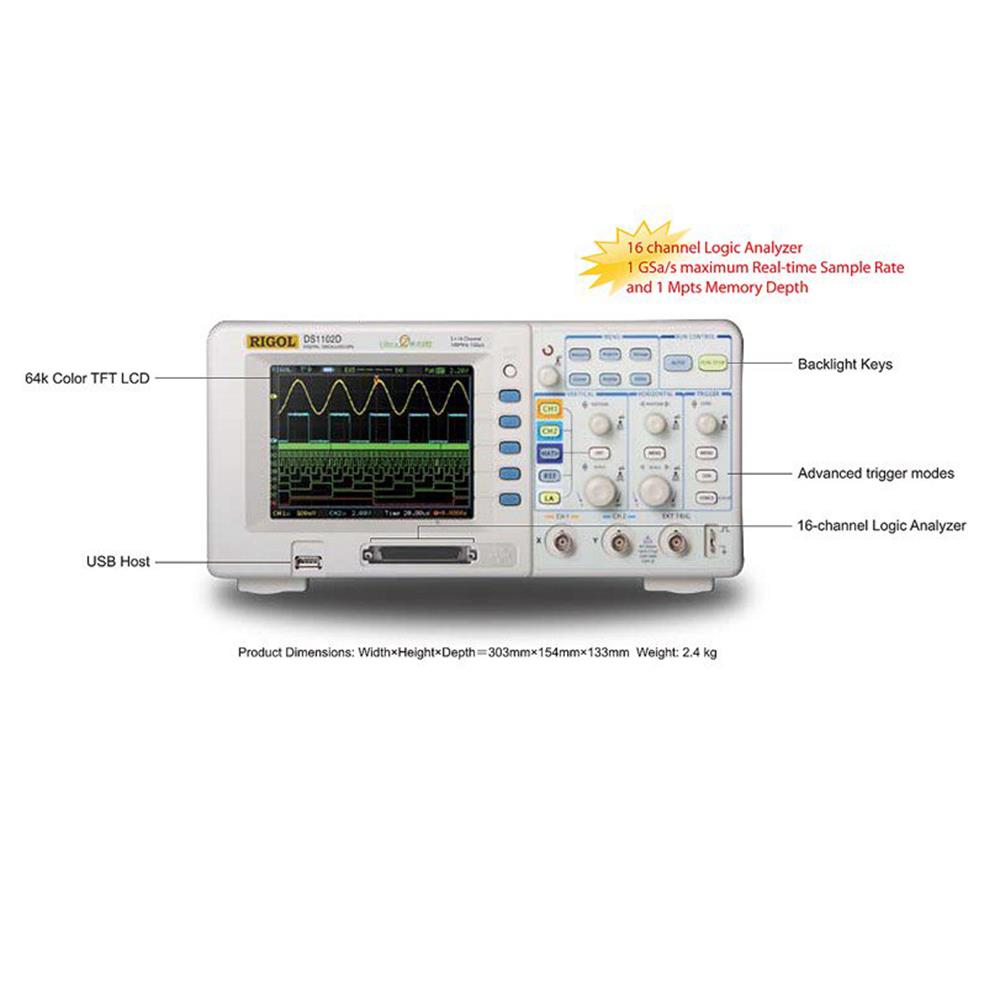

- It not only has compact design and 64K TFT color LCD, but also powerful functions: Up to 1M memory depth, with Ultrazoom function, it can enable users to observe details while surveying the whole waveform; 7 trigger modes, adjustable trigger sensitivity, USB Host to support USB flash memory and USB printer, and other traditional functions of RIGOL oscilloscopes. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
Features:
Ultrazoom
- You can sample up to 1 million measurement points with this oscilloscope. Easily zoom in and scroll within the signal. Survey macroscopically, observe microscopically.
Automatically and Cursor Measure
- This oscilloscope series provides 20 types of wave parameters for automatically measuring, which contains 10 Voltage and 10 Time parameters.
- In cursor mode, users can easily measure by moving cursor. Besides, 3 types of cursor measurement are optional: Manual, Track and Auto.
Adjustable Trigger Sensitivity
- With the Rigol oscilloscopes you have the ability to filter noise from the signal avoids false triggers.
Alternate Trigger
- Provides a true dual timebase display.
Slope Trigger
- Triggers on the signals rise time or fall time is user defined.
Rising and Falling Edge Trigger
- Mainly used to view eye-diagrams normally only available in more advanced DSO's.
Pass / Fail Test
- The Pass/Fail function monitors the changes of signals by comparing whether the input signal is within the pre-defined mask. The testing results not only can be displayed on screen or output by isolated pass/fail port, but also can be alarmed according to turn on system sound.
FFT (Fast Fourier Transformation)
- The FFT function provides spectrum analysis function for users. Supported FFT windows: Rectangle, Hanning, Hamming, Blackman.
File System and USB Stick Support
- The device supports an easy-to-use file system. It allows for both USB flash drive and local file storage.
