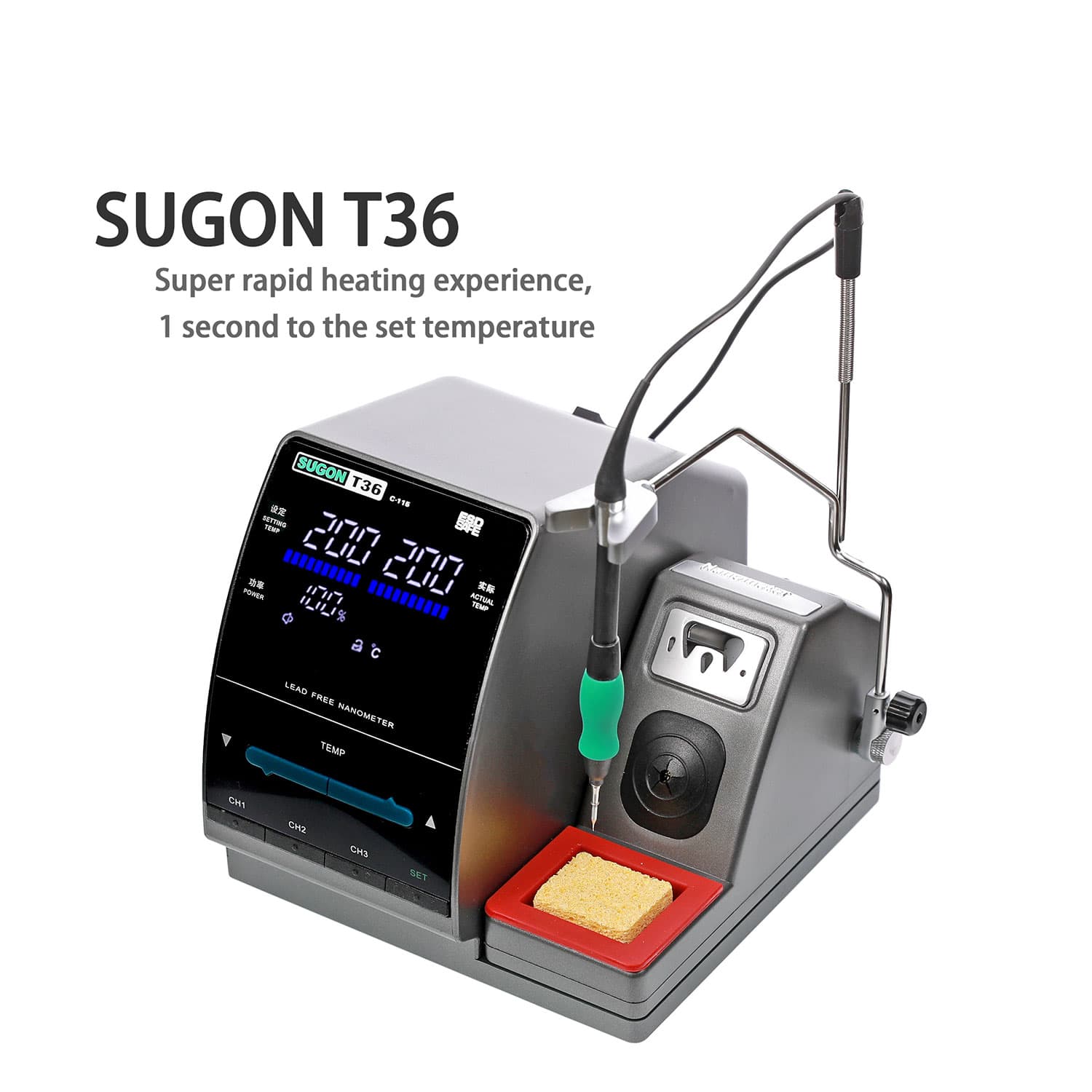

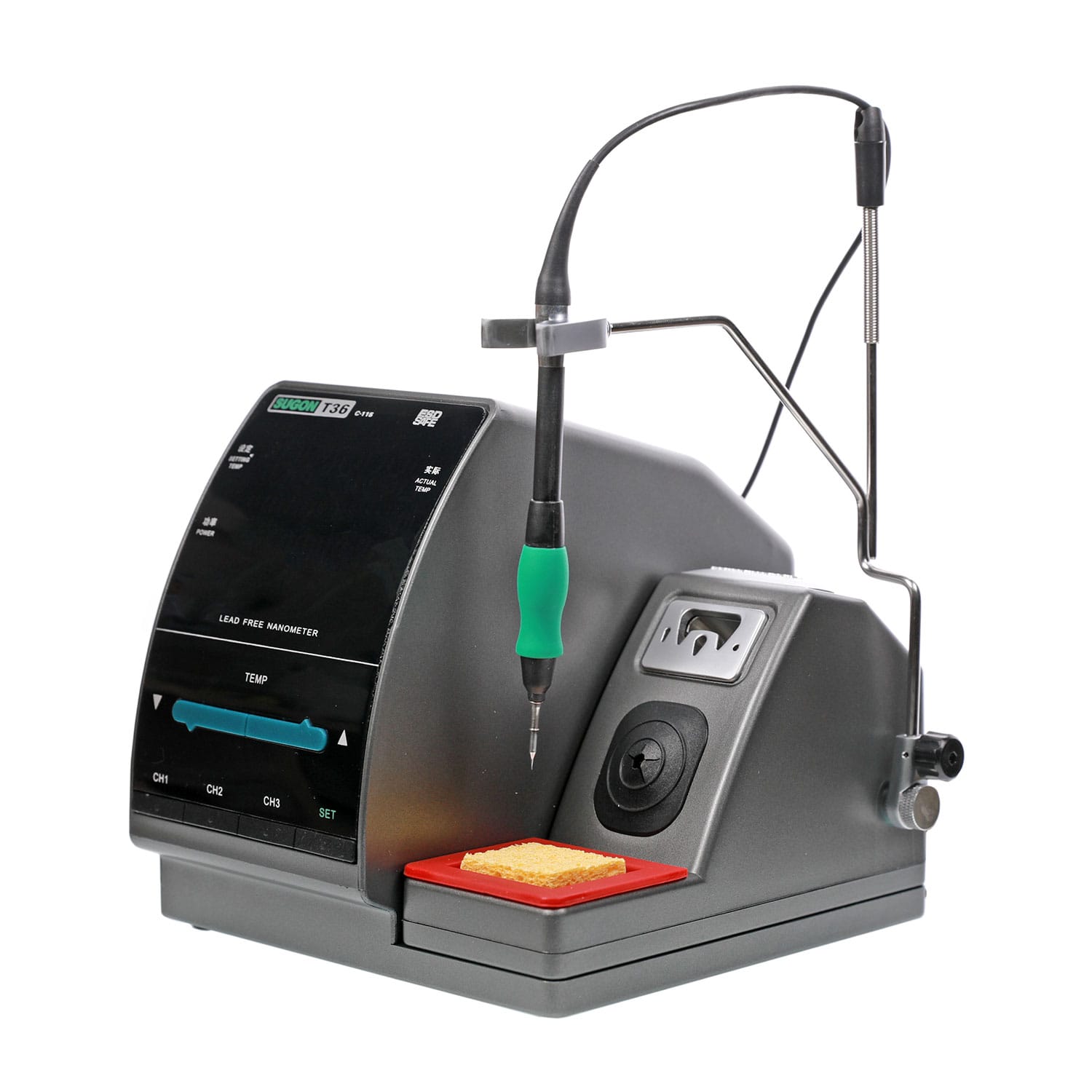

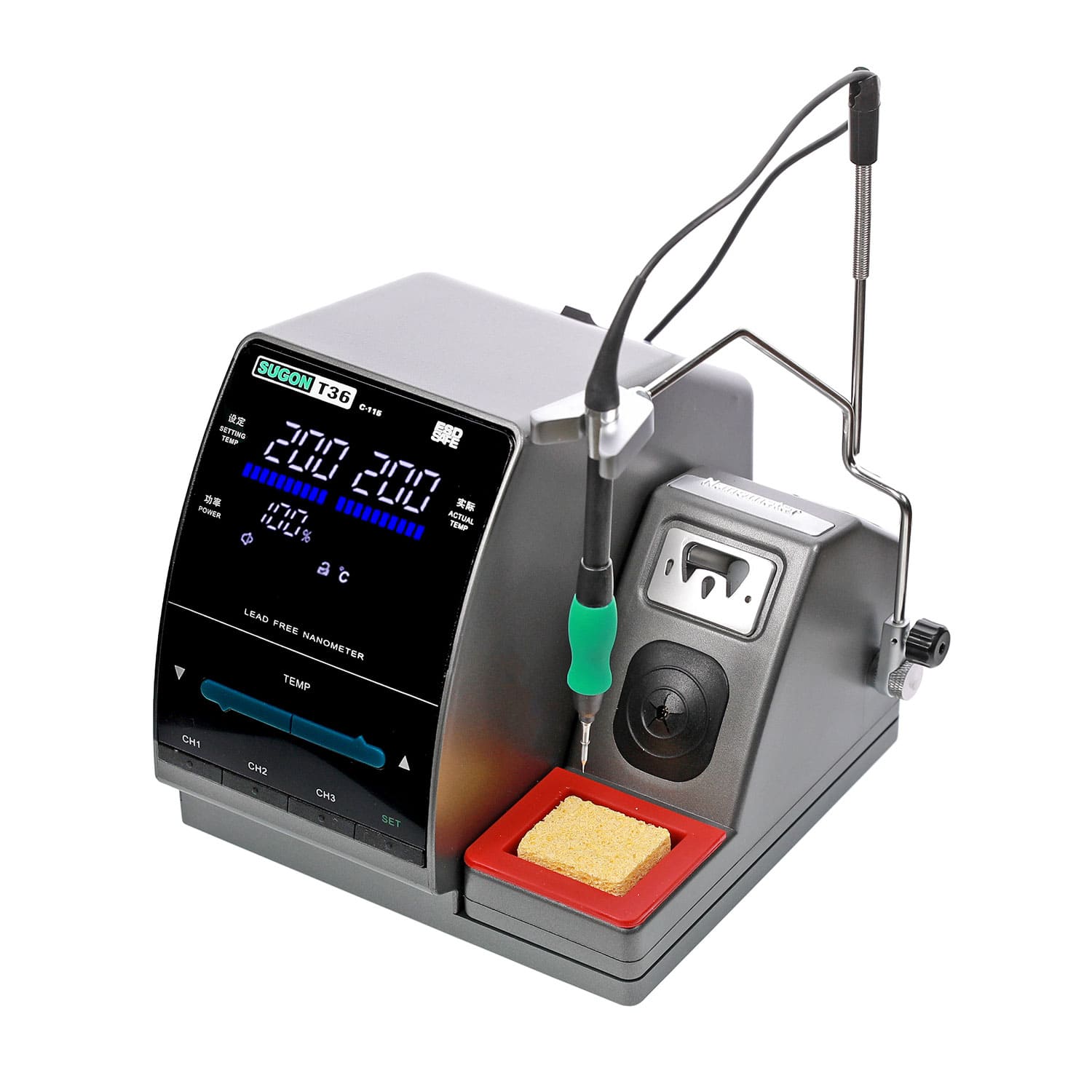

SUGON T36 SMD SOLDERING STATION
Voltage:110V w/ US Extra Adapter
Quantity:
Parameter:
- Input voltage: AC110V 50/60Hz, AC 220V 50/60Hz
- Power: 85W
- Temperature range: 200℃ - 450℃
- 232°F - 842°F
Installation Notes:
A Connection
( Attention: Turn off the power and avoiding damage PCB during unplug or plug in the soldering iron handle)

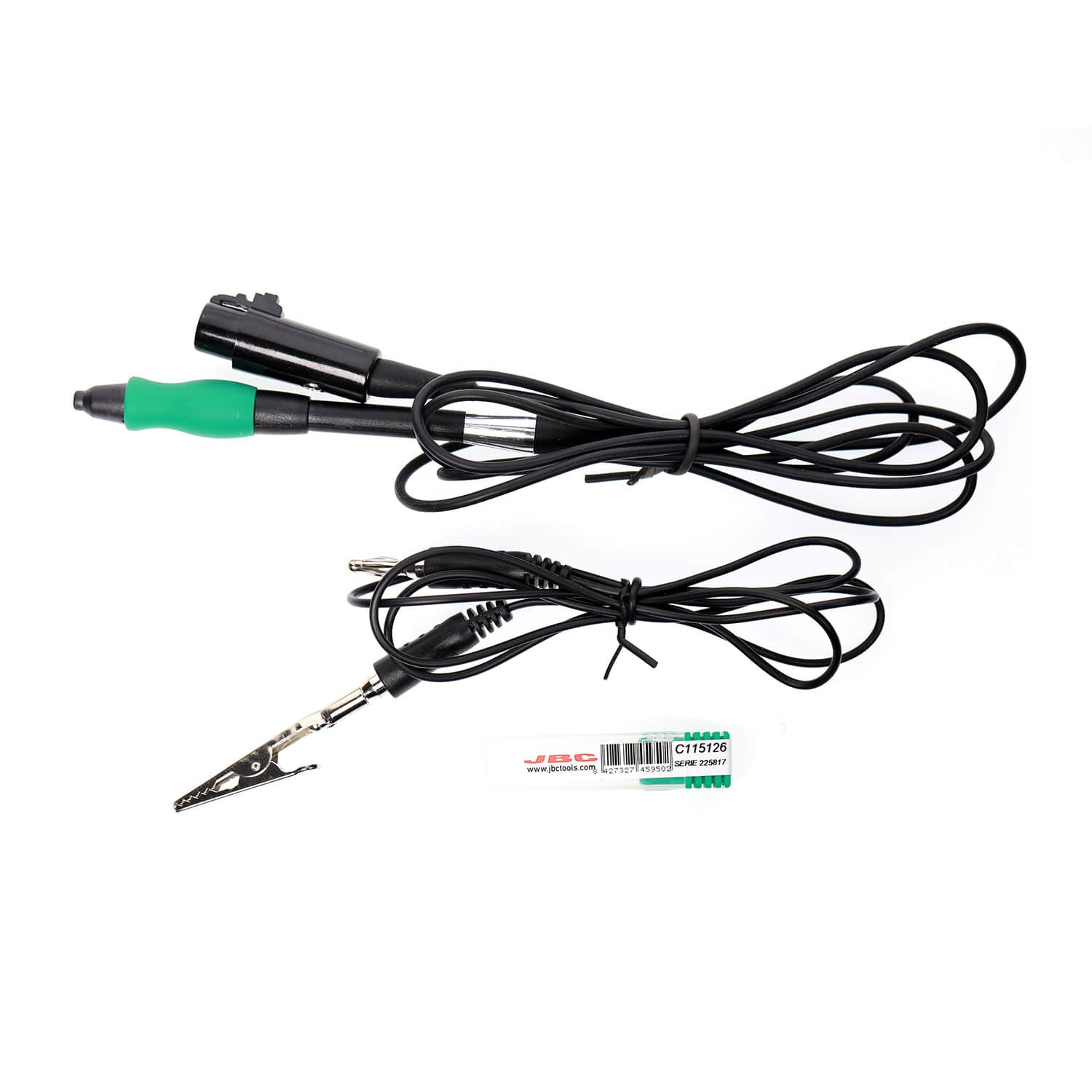

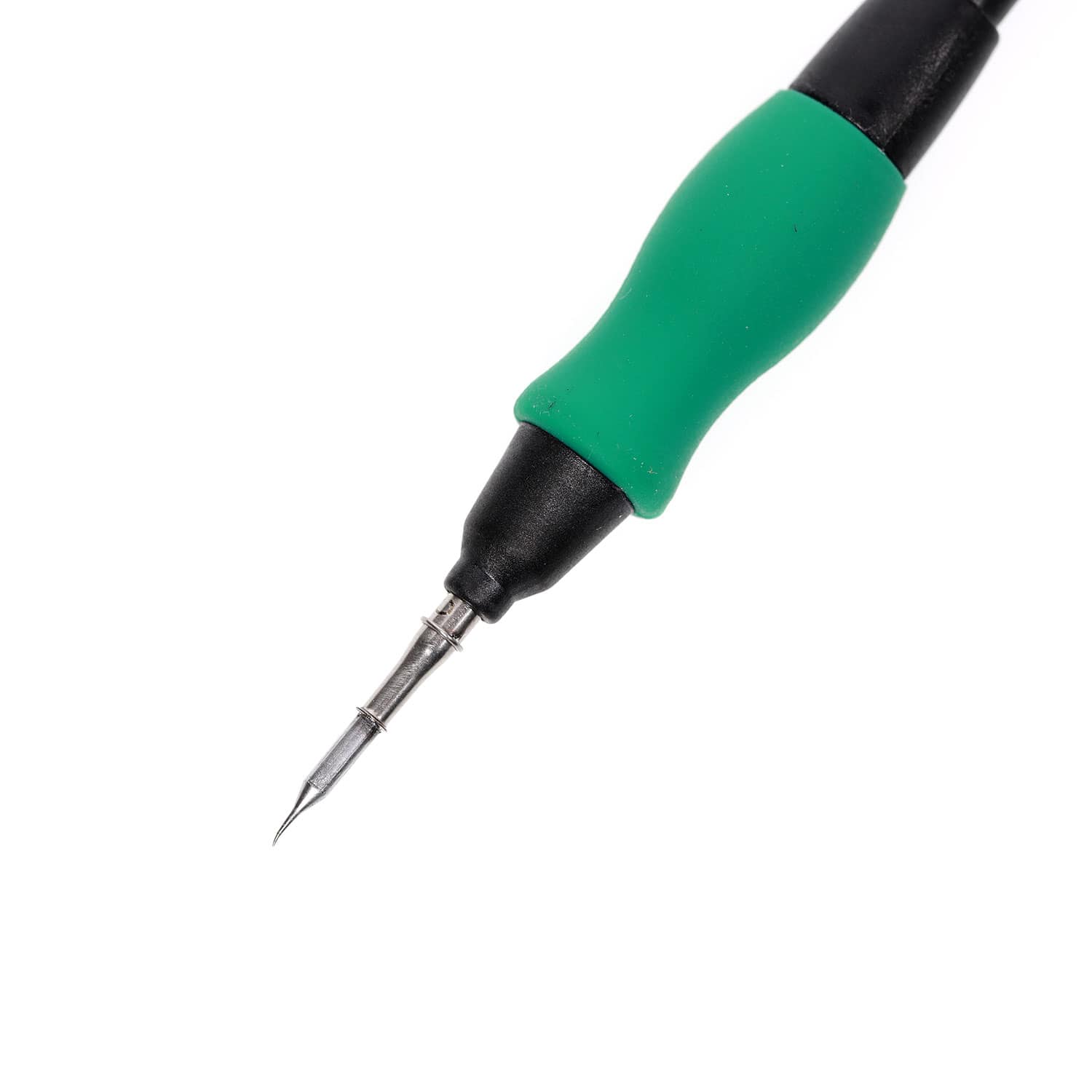

- Plug in the soldering iron handle to the proper host socket.

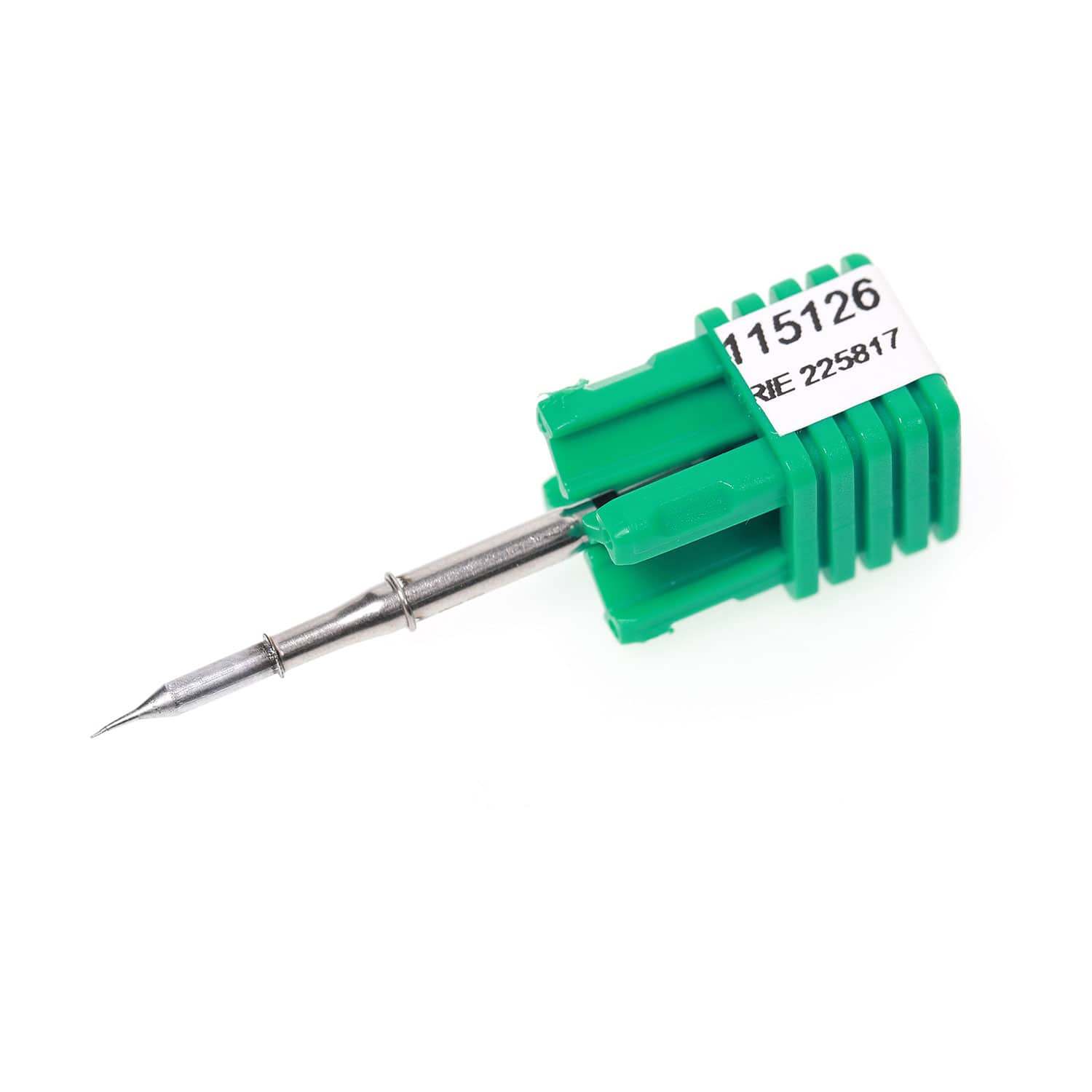

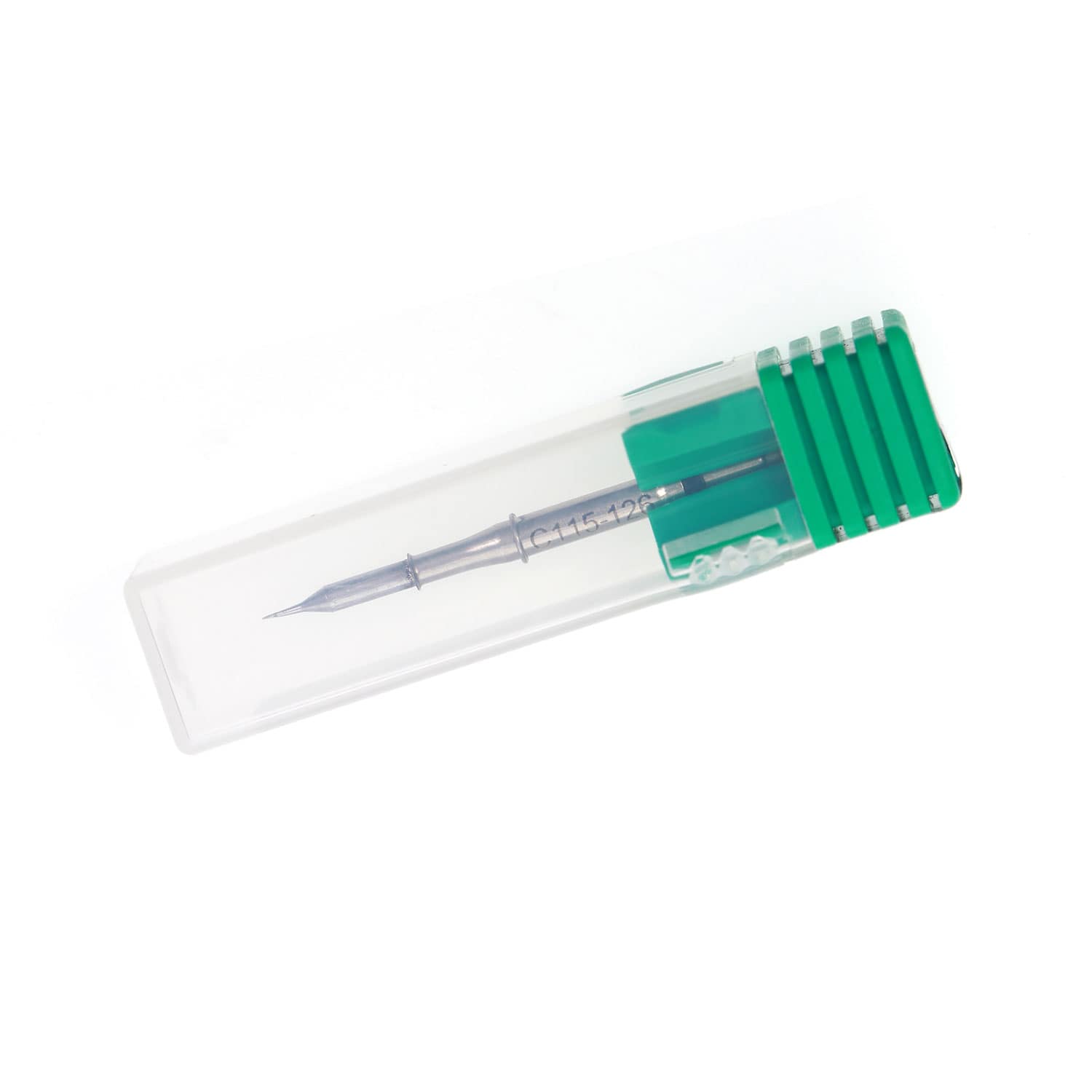

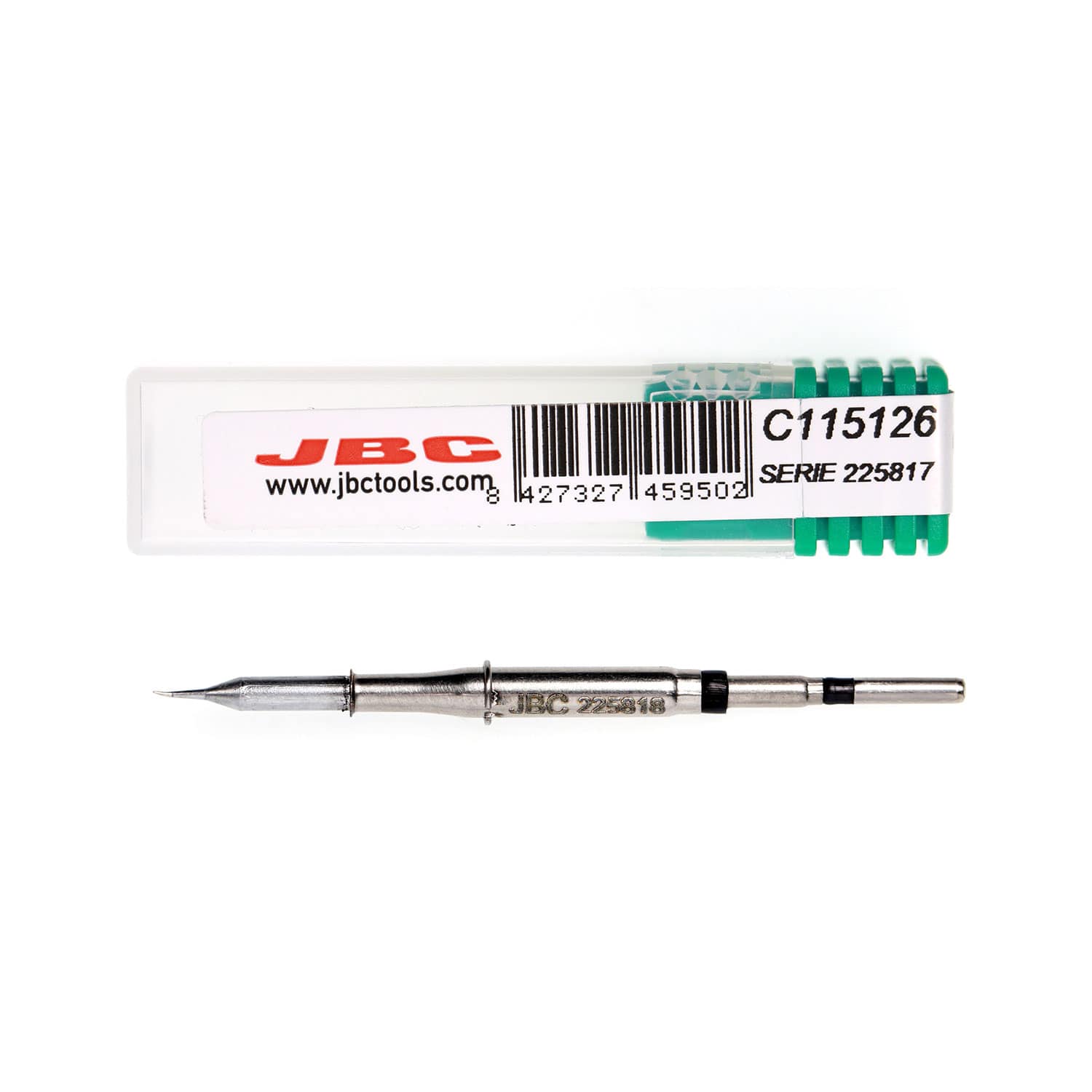

- Installation heating element.

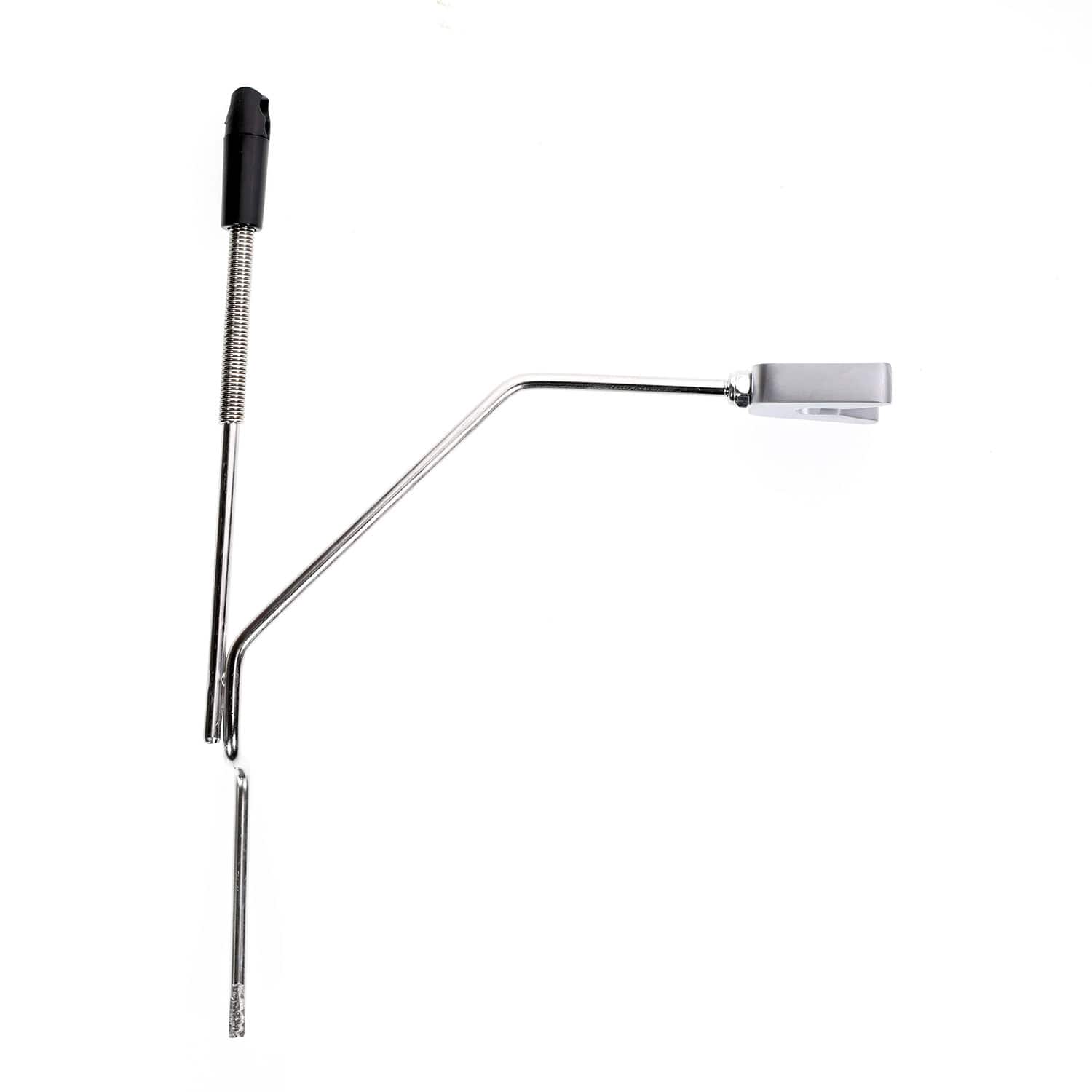

- Place the soldering station and hang the soldering iron handle on the bracket.
- Make sure the power cord is plugged in correctly.
- Turn on the machine, display window shows: "---", it is on standby mode.
Temperature setting and storage:
Heat Up:
- Press ↑ buton once, the teperature window will show the set temperature to up 1℃. hold ↑ button for at least one second, the set temperature will heat up rapidly until up to the set temperature you did set.
Cool down:
- Press ↓ button once ,the temperature window will show the set temperature to down 1℃. hold ↓ button for at least one second, the set temperature will cool down rapidly until down to the set temperature you did set.
- After parameter data is set,keep hold CH1 button to up or down temperature and save it.similarly, keep hold CH2 or CH3 button to set the storage temperature and save them.
- Do bring out the memory temperature,press CH1 button (less than 1 second) and bring up the saved data, similarly CH2 or CH3 to bring up the memory data as well.
