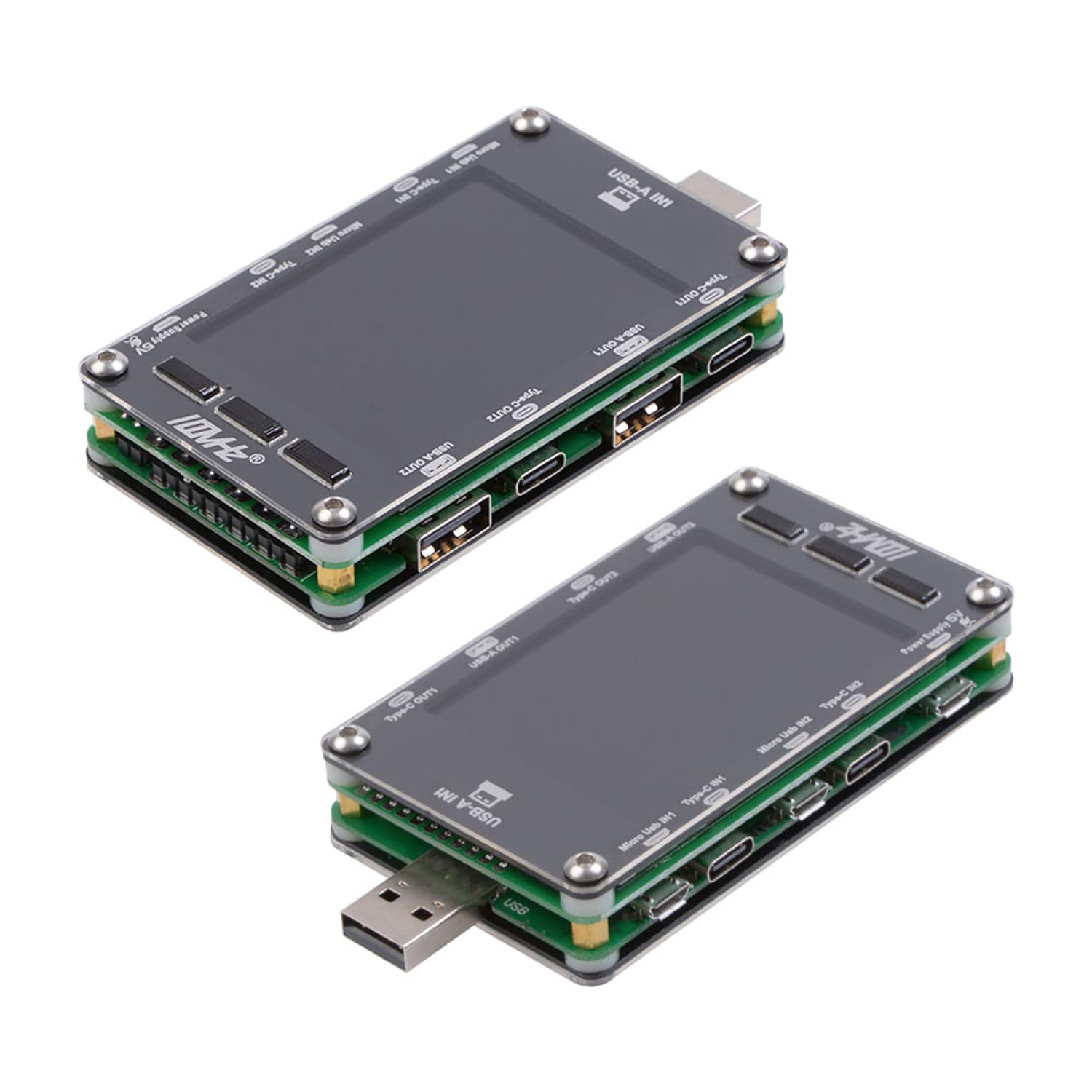

T50N USB DUAL CHANNEL METER
Quantity:
Dual USB Voltage Current Power Capacity Meter Support QC2.0 QC3.0 PD Test
Specifications:

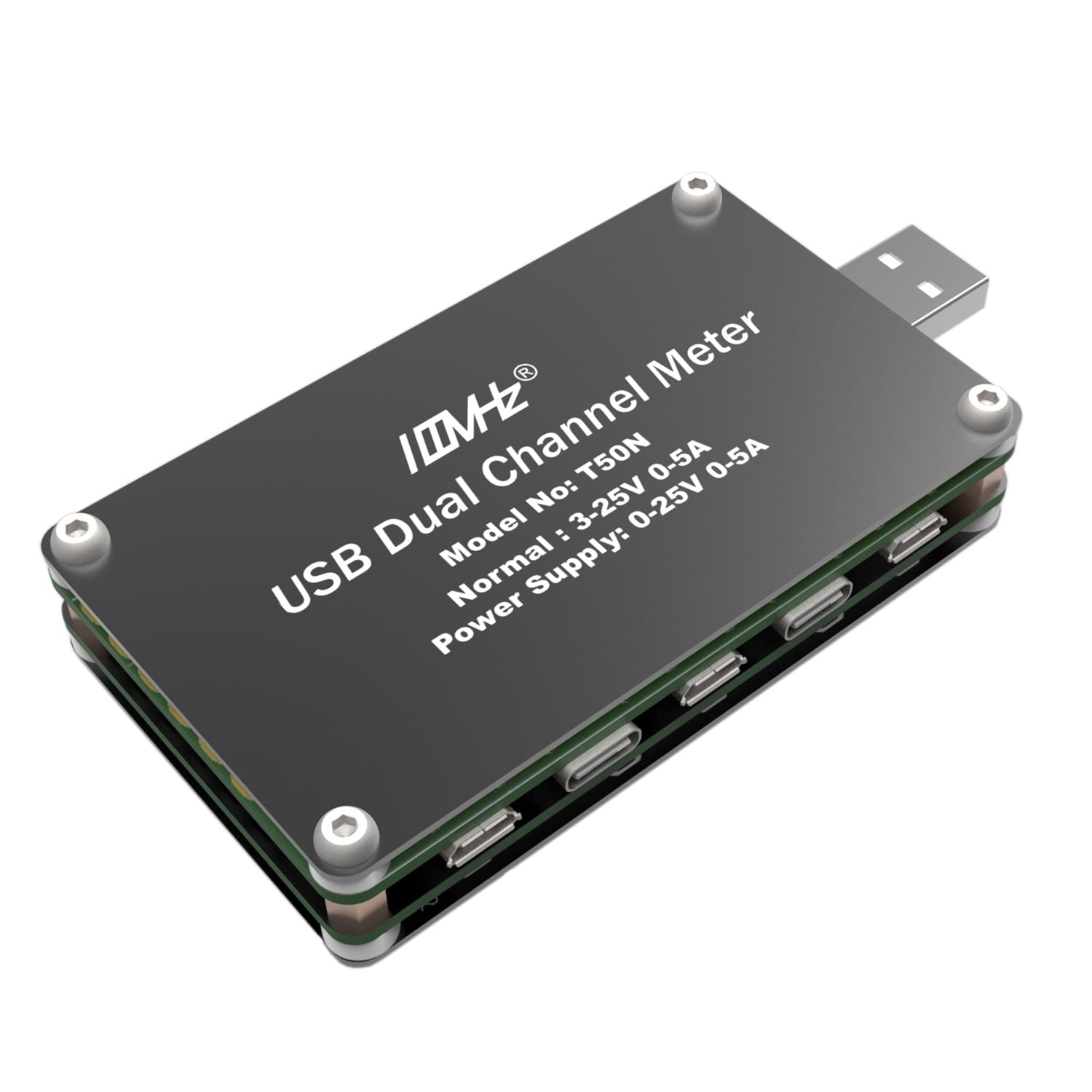

- Model No: T50N
- Normal: 3-15V 0-5A
- Power Supply: 0-15V 0-5A
- Product Size: 55mm*20mm*105mm
- Net Weight: 110g
- Packing Size: 220mm*135mm*35mm
- Gross Weight: 215g
- Sampling Resistance: 25 mΩ
- Own Internal Resistance: 50 mΩ
- Power Consumption: About 0.6W (120mA at 5V)
- Fast Charge Trick: Don’t Support
- D + D-Voltage: Not Displayed
- Resolution: 0.001V 0.001A
- Accuracy: 0.03V 0.005A

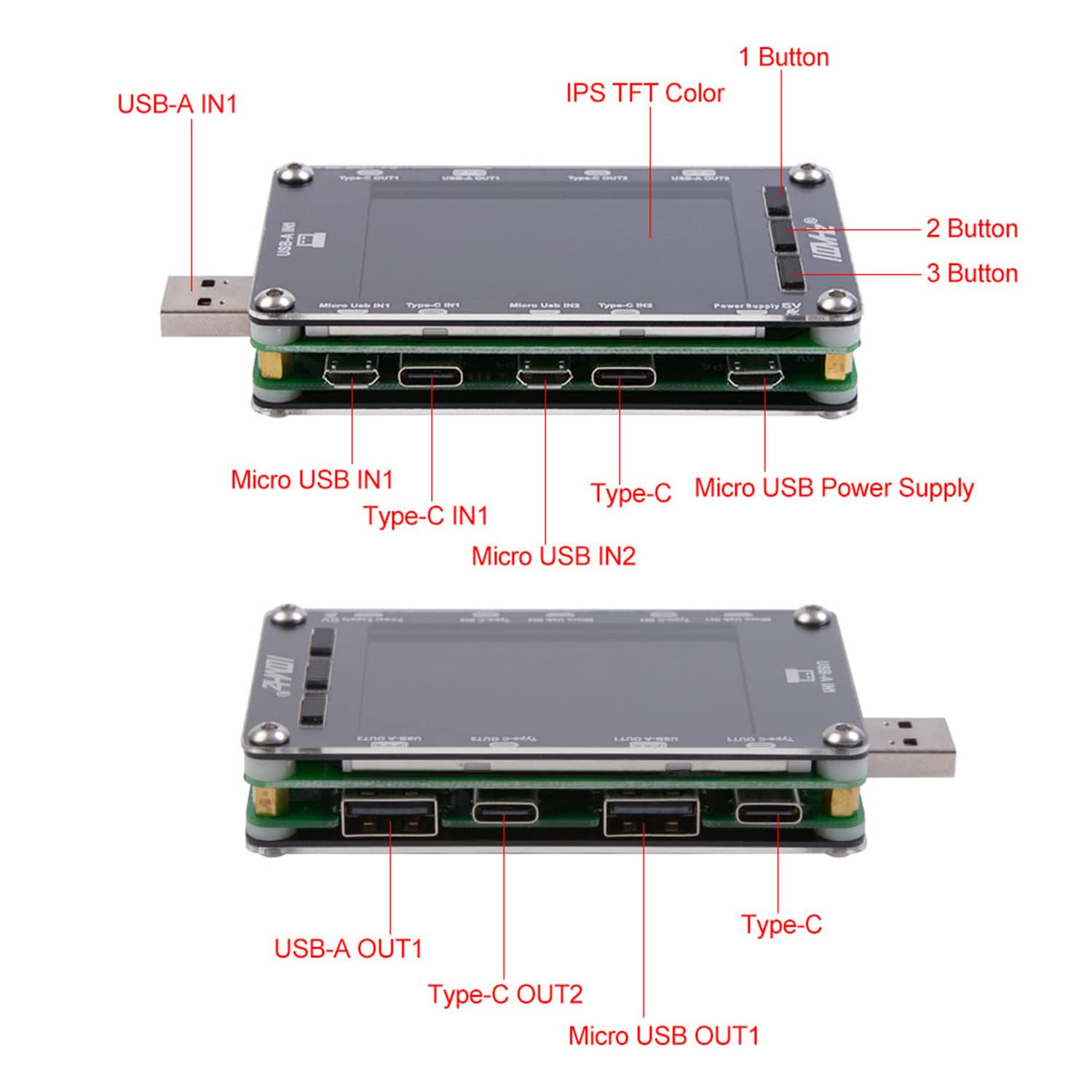

- Input Interface: 1*USB-A Male, 2*Micro USB Mother, 2*Type-C Mother
- Output Interface:2*USB-A Mother, 2*Type-C Mother
- Power Supply Interface: 1*Micro USB Female
- USB-A IN 1, TYPE C IN 1 and Mirco USB IN 1, One of them is connected to power supply or charging board (do not access more than 2 IN 1, otherwise the consequence will be self-confident)
- TYPE C OUT 1, usb-a OUT 1, one of the access devices (e.g., cell phone or tablet)(do not access more than 2 OUT 1, otherwise the consequence will be self-confident)
Double way measurement method:
- Access IN1, OUT 1 according to single path method.
- Access IN 2, OUT 2 by single way method.
- In 1 connect out 1, or in 1 connect out 2. Can't come out at the same time, only one, or the burner. This is a single-way test method, and then the results are shown on the page of CH1 to show the current voltage.
- The double test way is 2 port in 1 connect out 1, or 2port in 1 connect out 2, so there are 2 current voltages, CH1 CH2 display results.
