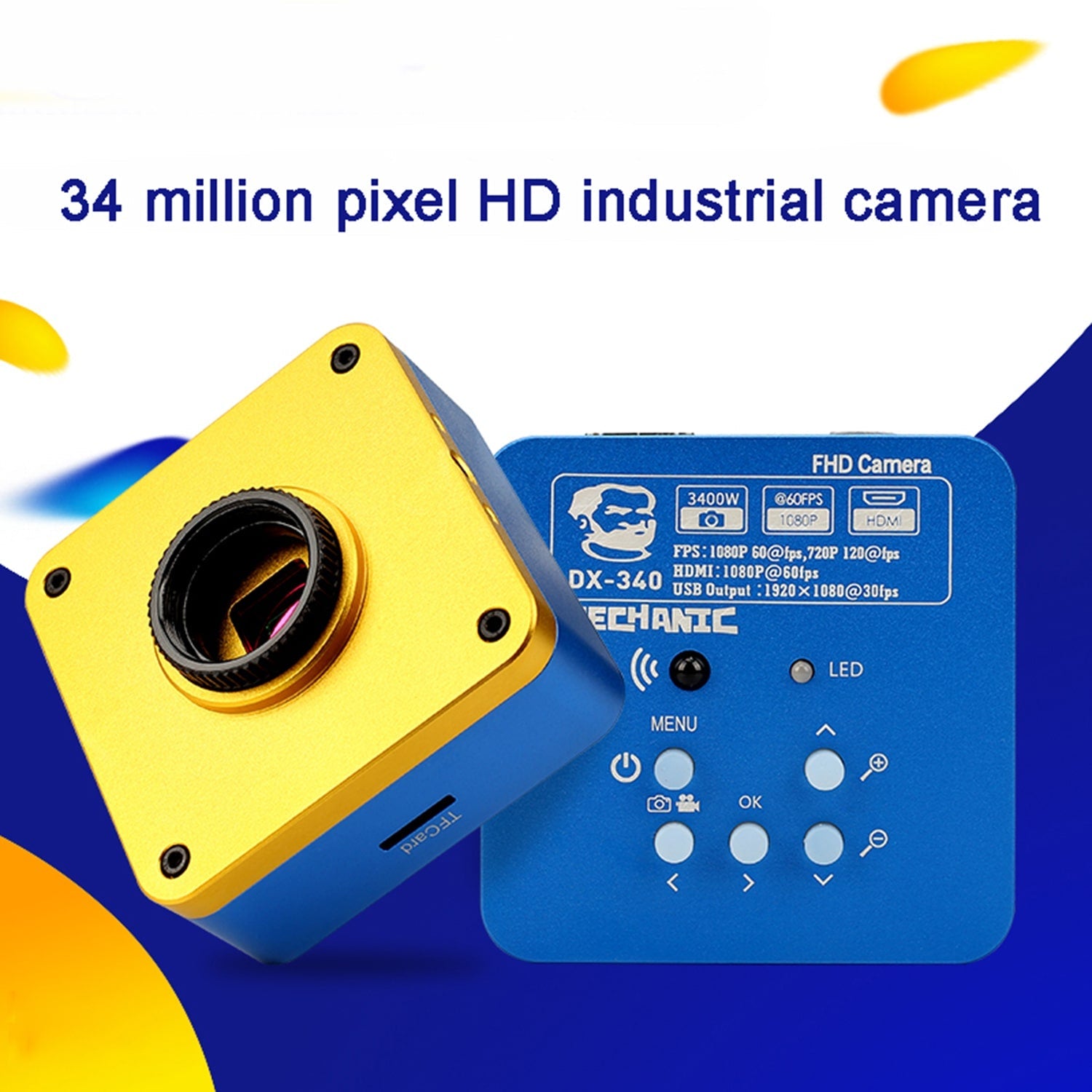

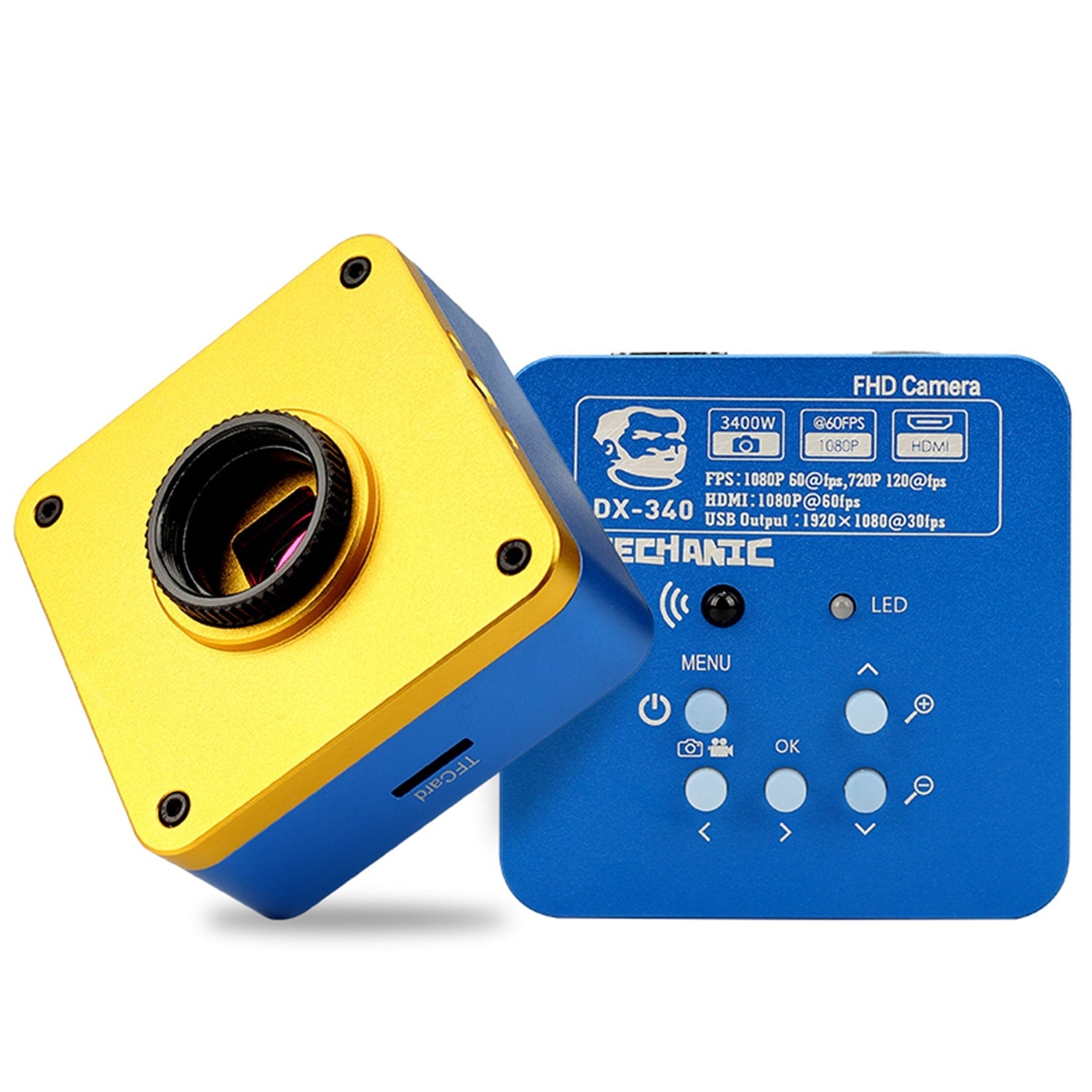

UPGRADE MECHANIC DX-340 34MP 1080P MICROSCOPE HDMI CAMERA
Quantity:
Specifications:
- Model: Panasonic 3400W CMSO sensor
- Dimensions: approximately 7.3x7.3x3.0 cm
- Image sensor: 34 megapixels from 1 / 2.3 inches
- Effective pixels: 34 megapixels
- Pixel size: 1.35 * 1.35um
- Frame rate: 30 fps
- Resolution of the HDMI image: 1920x1080 60FPS
- Video format: MP4, MOV (for TF card)
- USB video resolution: 1920x1080 @ 30FPS
- White balance: Auto / manual
- TF card interface: up to 64G
- Digital enlargement: 8 times digital zoom
- USB interface: standard USB 2.0 interface
Packing list:
- 1 x Camera
- 1x Adapter
- 1 x Remote Control
- 1 x B-type Square USB Cable
- 1 x Chinese And English Manual
- 1 x Packing Box
Parameters:
- iMager Sensor: Panasonic Original 3400W Pixel CMOS Sensor
- Sensitive size: 1/2.3 inches, a larger field of view than the usual 1/3
- Cell size: 1.335μm x 1.335μm

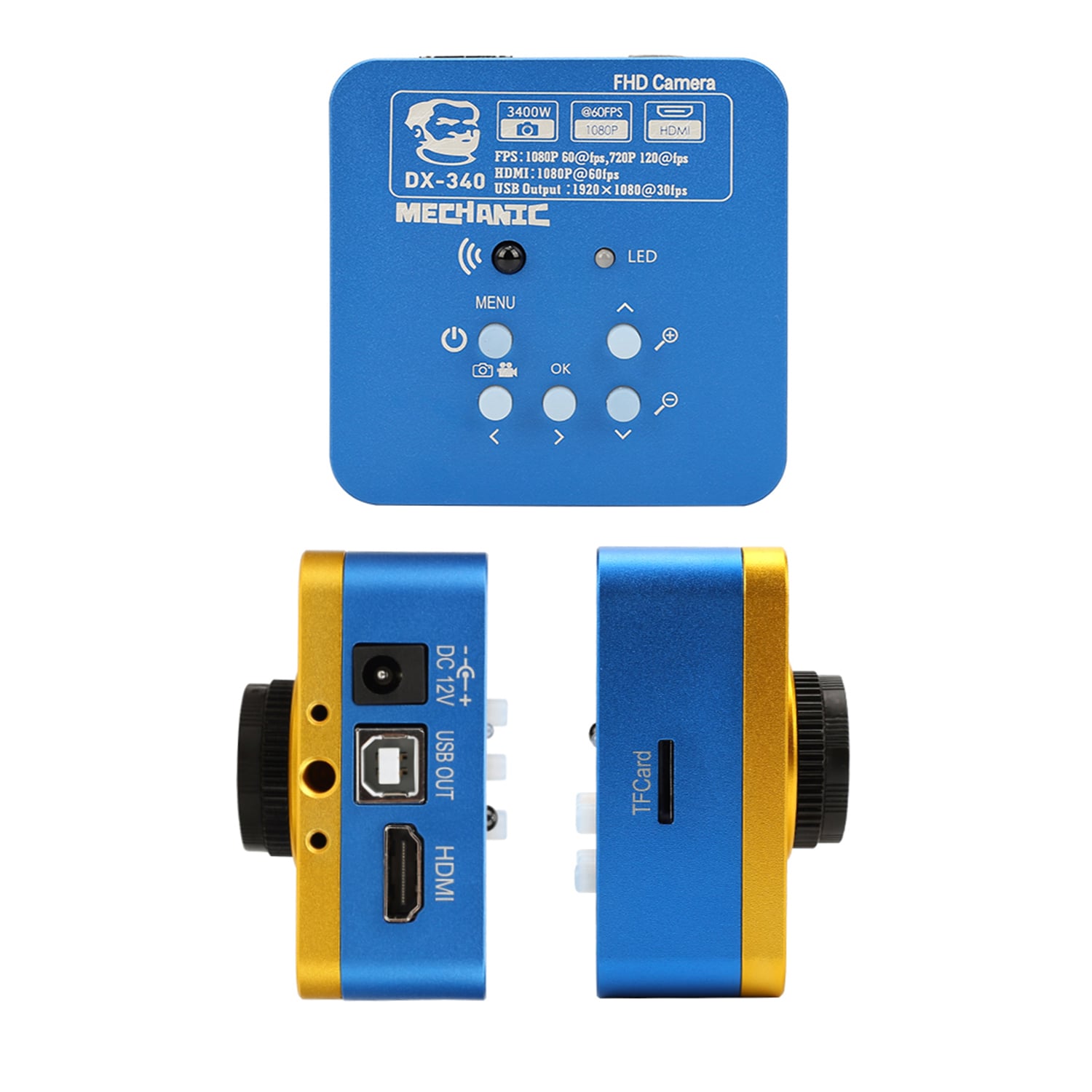

- Output interface: HDMI(Type A), USB(Type B), TF Card
- Photo resolution: 23 Mega Pixal2300W pixel
- Video resolution: 2K@30frame, 1080P@60frame
- HDMI output: Progressive 1920/1080 60frame can be output simultaneously with usb
- HDMI output ratio: Support 4:3 16:9 16:10 screen to keep the image not be deformed
- USB 2.0 output(free drive): 1920*1080@30 1280*720@30 640*480@30 can be output simultaneously with usb

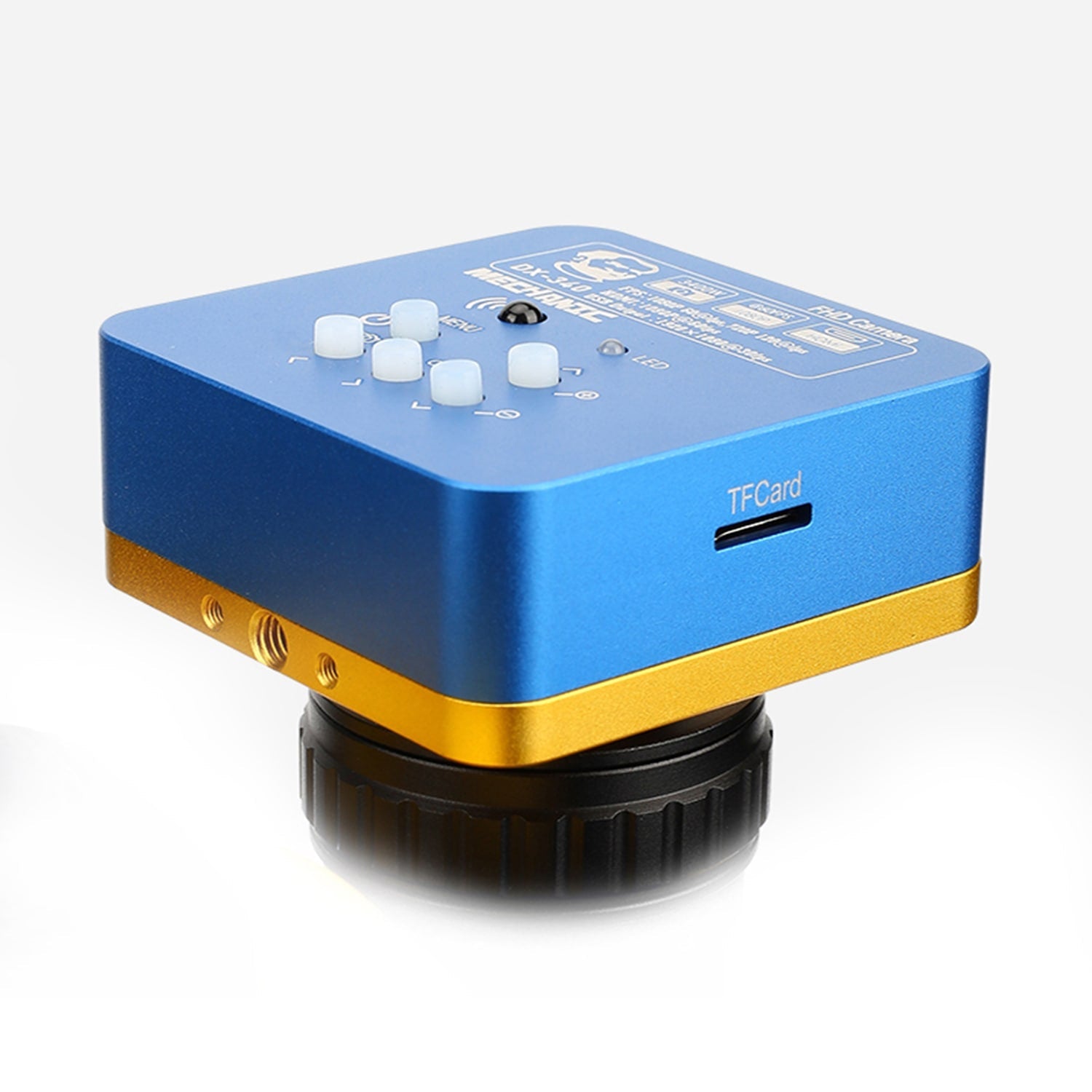

- TF card storage capacity: Up to 64GB
- White balance: One button while balance/manual/automatic RGB individally adjustable
- Exposure: Manual/automatic exposure value adjustable
- Crosshair: 8 strip color,thickness adjustable
- Crosshair scale: 2 strip with scale
- Cross dotted line: 2 strip color,thickness adjustable
- Sharpness,Contrast,Saturation: Support adjustable
- Black and whte/negative: Support
- Mirror:Horizontal vertical mirrow
- Language: Chinese/English
- Digital Zoom: Support
- remote control: Support/Remote video recording,the screen does not shake
- Input voltage: DC 12V(support 5-9V) 55-21 large interface
- Power consumption: Maximum 0.15W (12V 0.12A)
- Lens interface: c/cs port
- Gross weight: 180g
- Net weight: 400g
- Product size: 75*75*35mm
- package dimensions: 165*102*82mm
- Packing list: camera+adapter+remote control+type B square port USB cable+Chinese/English manual+packing box
